Honda CRF230F 2007 User Manual

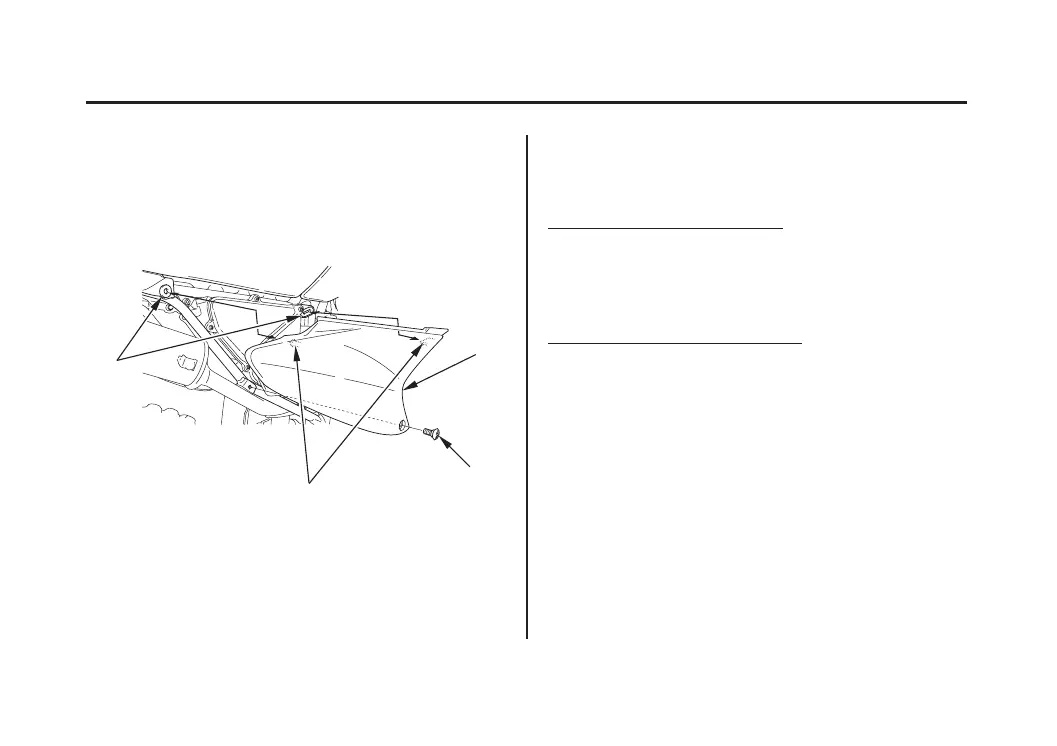

RIGHT SIDE
(4)
(2)
(3)
(1)
(1) right side cover
(2) screw
(3) side cover prongs
(4) rubber grommets
56
Side Cover Removal
Servicing Your Honda
Saf ety PrecautionsRefer to on page .
Right Side Cover Removal
The right side cover ( ) must be removed to
service the air cleaner.
Remove the screw ( ).
Pull both side cover prongs ( ) out of the
rubber grommets ( ).
Right Side Cover Installation
Slide the top of the side cover under the
bottom edge of the seat.
Align the side cover prongs with the rubber
grommets. Press the side cover into position.
Install the securing screw and tighten it.
1.
1.
2.
2.
3.
43
2
1
3
4
06/03/17 17:25:46 31KPS640_065

Honda CRF230F 2007 Specifications

General

Engine Type	223cc air-cooled single-cylinder four-stroke
Bore and Stroke	65.5mm x 66.2mm
Compression Ratio	9.0:1
Ignition	CDI
Front Brake	Single 240mm disc
Rear Brake	Drum
Front Tire	80/100-21
Rear Tire	100/100-18
Seat Height	34.1 inches
Ground Clearance	11.7 inches
Curb Weight	249 pounds
Fuel System	Carburetor
Final Drive	Chain
Front Suspension	37mm leading-axle Showa fork
Rear Suspension	Pro-Link Showa single shock
Transmission	6-speed
