MAINTENANCE
REDUCTION CASE OIL LEVEL CHECK/
CHANGE
• For the chain type (without clutch), refer to the
ENGINE OIL LEVEL CHECK/CHANGE because it
shares the reduction oil with the engine oil (page 3-
3).
CHECK
GEAR TYPE

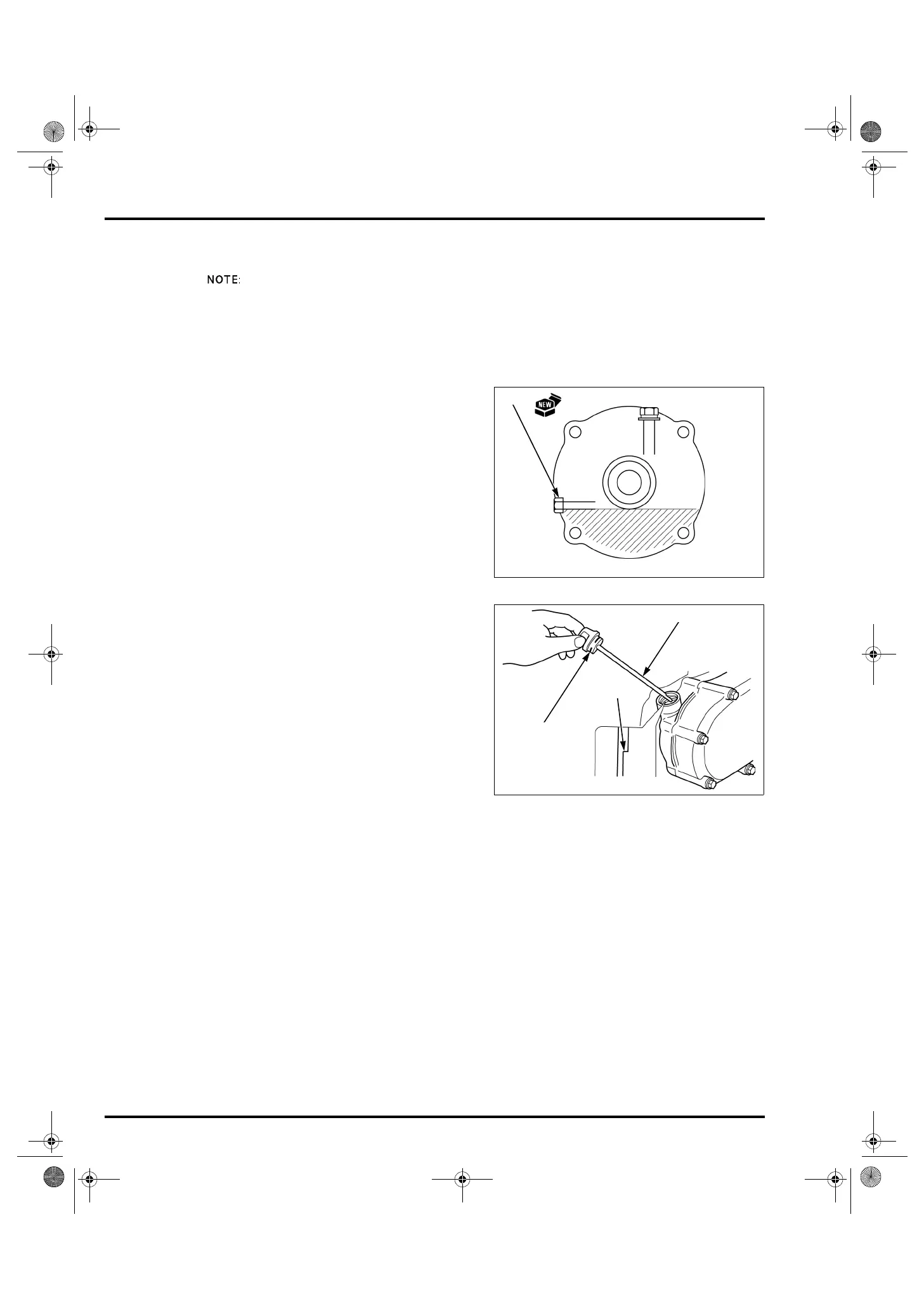

Place the engine on a level surface.
Remove the drain plug bolt [1] and drain plug washer
[2] and check the whether oil flows out.
Fill with recommended oil if it does not flow (page 3-5).
Install the drain plug bolt with a new drain plug washer
and tighten it to the specified torque.
CHAIN TYPE (with clutch)
Place the engine on a level surface.
Remove the oil filler cap/oil level gauge [1], and wipe
the oil level gauge clean.
Insert the oil level gauge without screwing it into the oil
filler neck.
Remove the oil level gauge and check oil level shown
on the oil level gauge.
If the oil level is low, fill with recommended oil to the
upper level [2] of the oil level gauge (page 3-5).
Check that the O-ring [3] is in good condition, replace it
if necessary.
Install and tighten the oil filler cap/oil level gauge
securely.
TORQUE: 23 N·m (2.3 kgf·m, 17 lbf·ft)
