MAINTENANCE
AIR CLEANER CHECK/CLEANING/
REPLACEMENT
A dirty air filter will restrict air flow to the carburetor,
reducing engine performance. If the engine is operated
in dusty areas, clean the air cleaner more often than
specified in the MAINTENANCE SCHEDULE.
Operating the engine without the air filters or with the
filter installed loosely will allow dirt to enter the engine,
causing rapid engine wear. Install the air filters
securely.

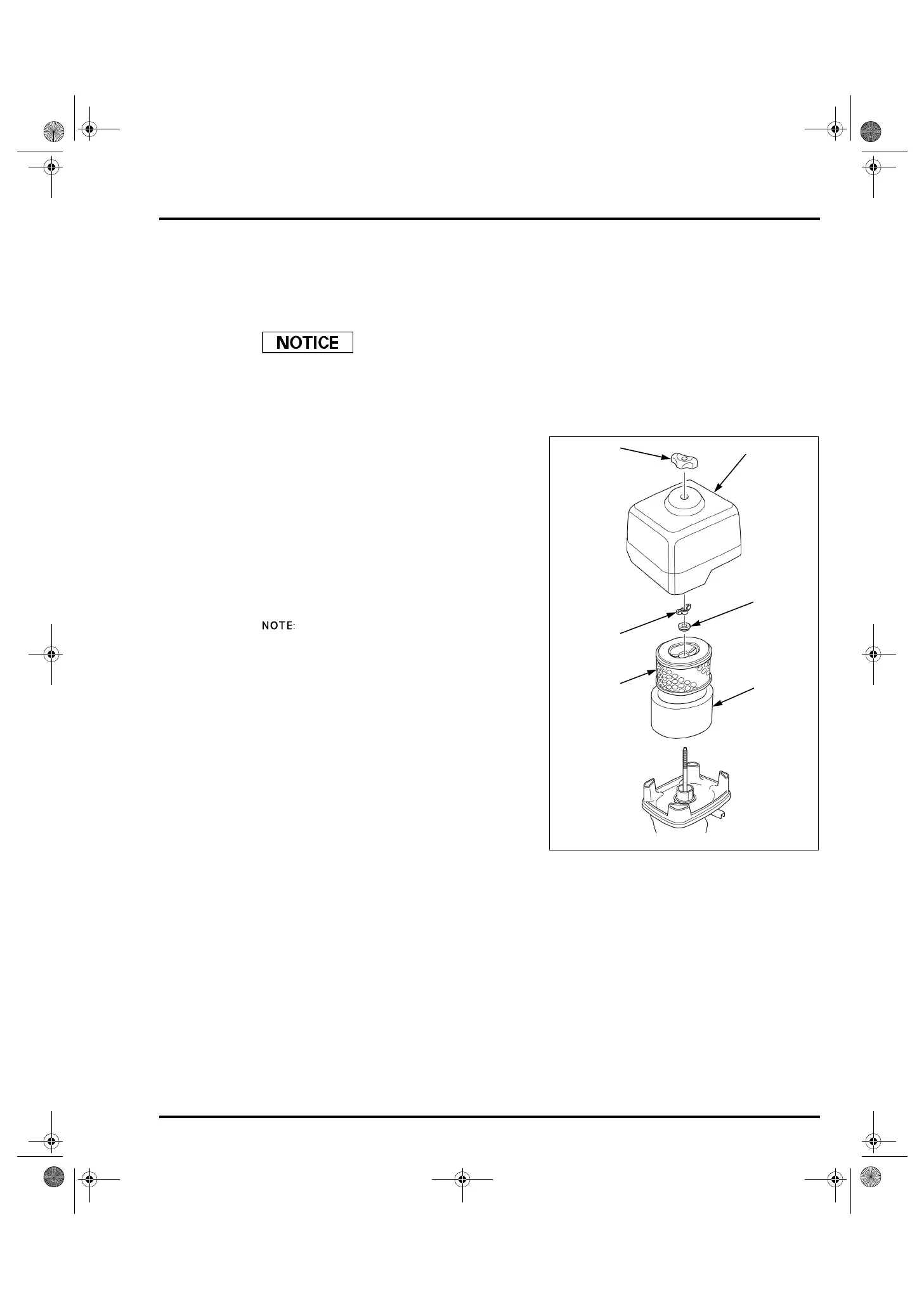

DUAL, DUAL SILENT TYPE
Remove the following:
–Nut [1]
– Air cleaner cover [2]
– Wing nut [3]
– Element Assy.
– Grommet [4]
– Inner filter (Paper) [5]
– Outer filter (Foam) [6]
Carefully check both filters for holes or tears and
replace if damaged.
Clean the filters if they are to be reused (page 3-9).
Installation is in the reverse order of removal.
• Install the air cleaner cover with its long skirt portion
facing forward.
