MAINTENANCE

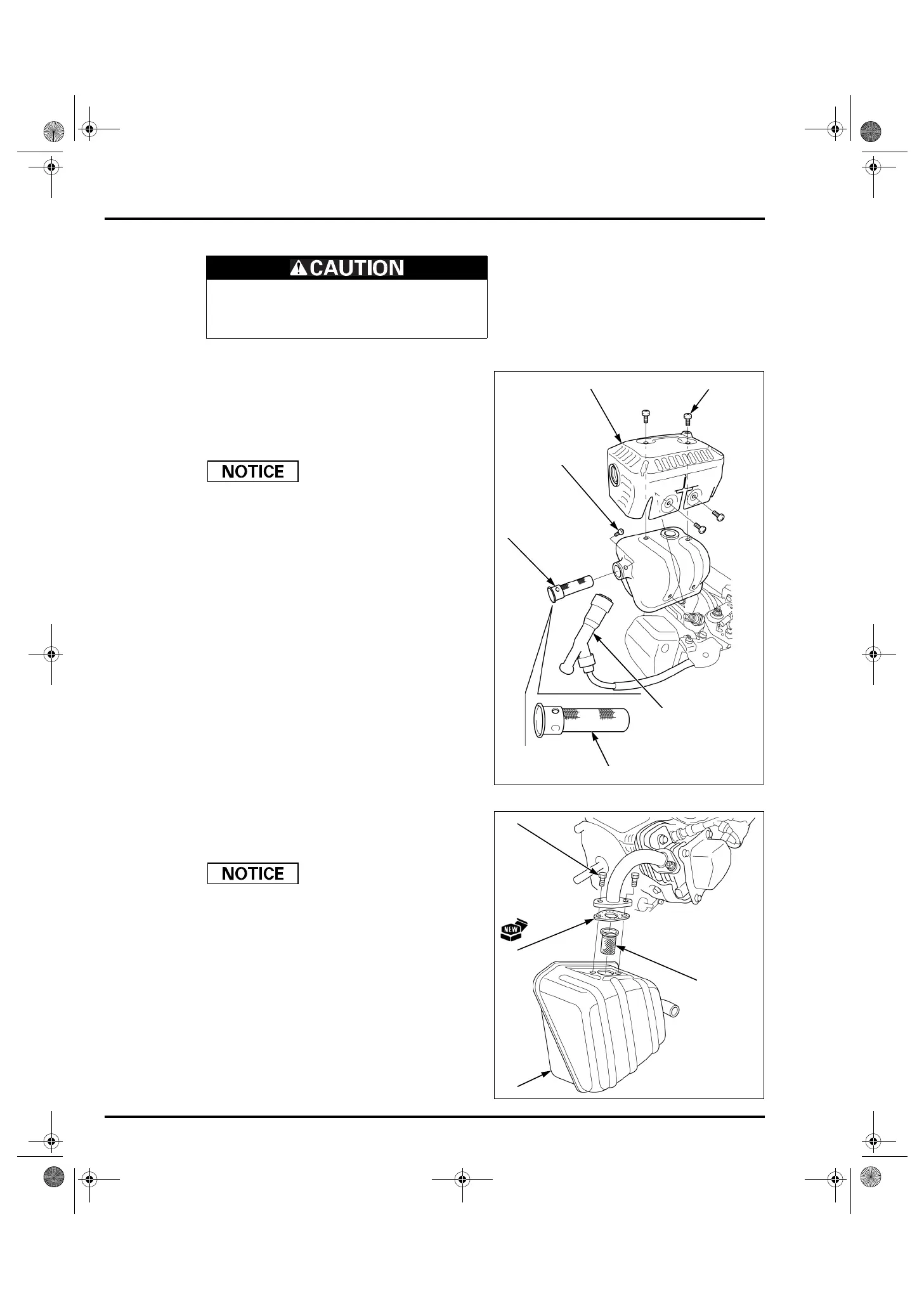

SPARK ARRESTER CLEANING
STANDARD, SILENT TYPE
Remove the air cleaner (page 6-5).
Disconnect the spark plug cap [1].
Remove the four screws (5 x 8 mm) [2] and muffler
protector [3].
Remove the screw (4 x 6 mm) [4] and spark arrester [5].
Be careful to avoid damaging the screen.
Clean the carbon deposits from the spark arrester
screen [6] with a wire brush.
Check the spark arrester screen for damage. If the
screen is damaged, replace the spark arrester.
Install the spark arrester in the reverse order of
removal.
LOW PROFILE TYPE
Remove the two bolts (8 x 20 mm) [1], muffler [2] and
muffler gasket [3].
Remove the spark arrester [4].
Be careful to avoid damaging the screen.
Clean the carbon deposits from the spark arrester
screen with a wire brush.
Check the spark arrester screen for damage. If the
screen is damaged, replace the spark arrester.
Replace the muffler gasket with a new one and install
the spark arrester in the reverse order of removal.
The engine and the muffler comes very hot during
operation and remains hot for a while after stopping
the engine. Be careful not to touch the muffler while
it is hot. Allow it to cool before proceeding.
[4]
[5]
[3]
[2]
[1]
[6]
[1]
[4]
[3]
[2]
