MAINTENANCE
PAPER

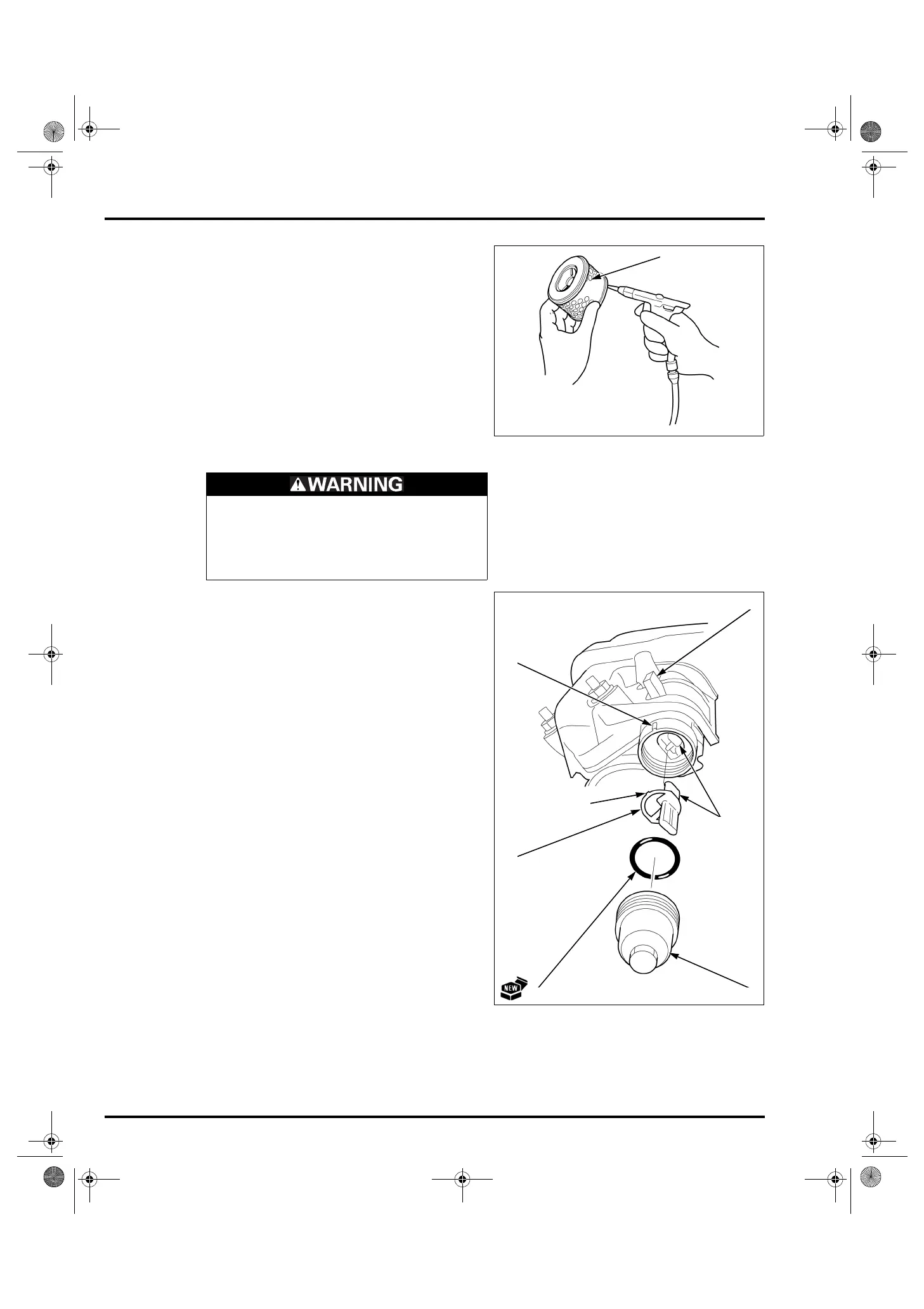

Tap the inner filter [1] lightly several times on a hard
surface to remove excess dirt, or blow compressed air
lightly (206 kPa (2.11 kgf/cm
2
, 30 psi) or less) through
the paper filter from the inside out. Never try to brush
the dirt off; brushing will force dirt into the fibers.
SEDIMENT CUP CLEANING
Turn the fuel valve lever [1] to the OFF position.
Remove the following:
– Sediment cup [2]
– O-ring [3]
– Cup filter [4]
Clean the sediment cup and the cup filter with non-
flammable solvent and allow them to dry thoroughly.
Install the cup filter while aligning it with the tip with the
groove of the carburetor and cup filter tab [5] with the
mark [6] of the carburetor.
Install a new O-ring and sediment cup.
Tighten the sediment cup to the specified torque.
Check the installation part of the sediment cup for any
sign of fuel leakage.
Gasoline is highly flammable and explosive. You
can be burned or seriously injured when handling
fuel.
• Keep heat, sparks, and flame away.
• Handle fuel only outdoors.
• Wipe up spills immediately.
TORQUE: 3.9 N·m (0.4 kgf·m, 2.9 lbf·ft)
