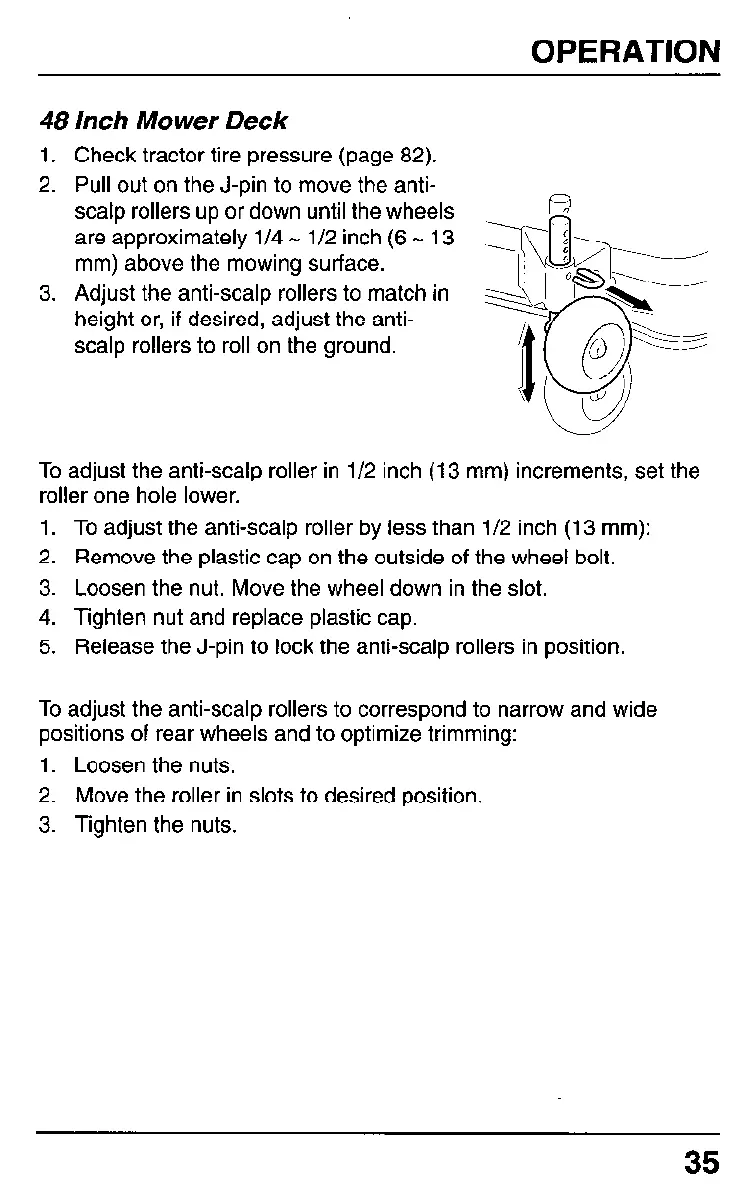

OPERATION
48 Inch Mower Deck
1.
2.
3.
Check tractor tire pressure (page 82).
Pull out on the J-pin to move the anti-
scalp rollers up or down until the wheels
are approximately l/4 - l/2 inch (6 - 13
mm) above the mowing surface.
Adjust the anti-scalp rollers to match in
height or, if desired, adjust the anti-
scalp rollers to roll on the ground.
To adjust the anti-scalp roller in i/2 inch (13 mm) increments, set the
roller one hole lower.
1. To adjust the anti-scalp roller by less than l/2 inch (13 mm):
2. Remove the plastic cap on the outside of the wheel bolt.
3. Loosen the nut. Move the wheel down in the slot.
4. Tighten nut and replace plastic cap.
5. Release the J-pin to lock the anti-scalp rollers in position.
To adjust the anti-scalp rollers to correspond to narrow and wide
positions of rear wheels and to optimize trimming:
1. Loosen the nuts.
2. Move the roller in slots to desired position.
3. Tighten the nuts.
35
