Honda HR214 User Manual

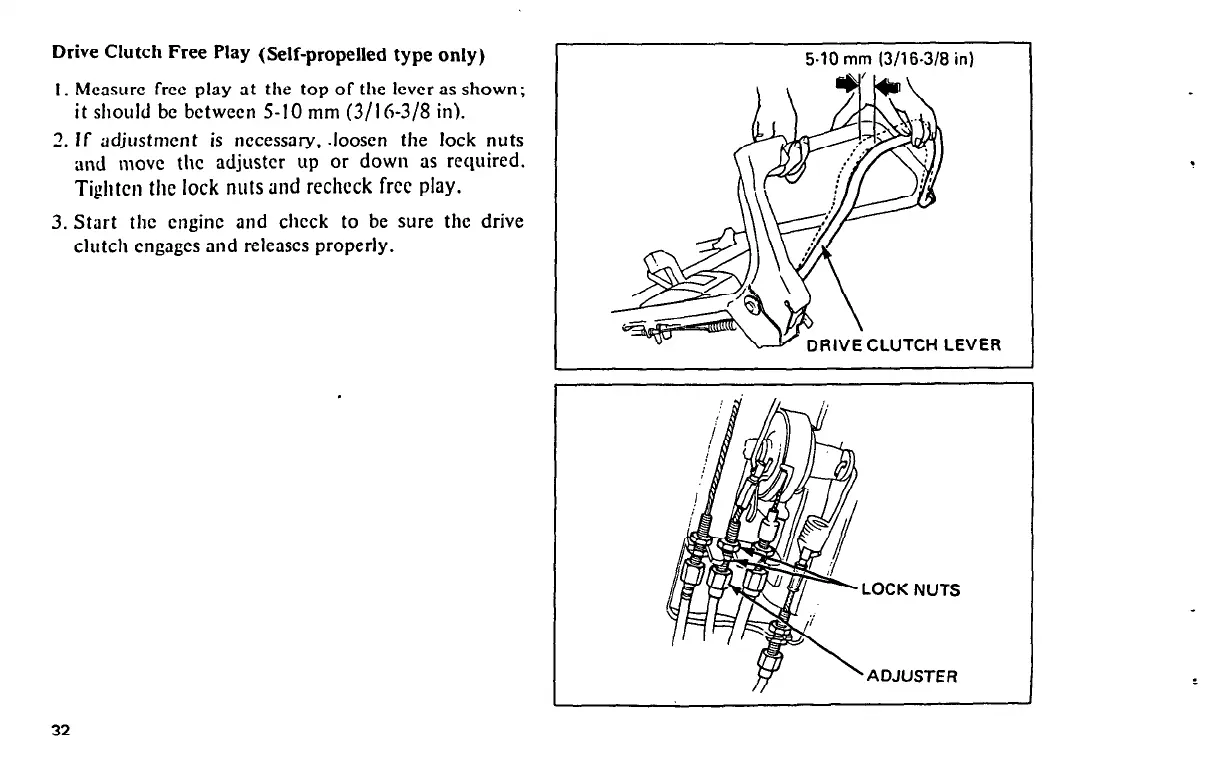

I _ Mcasurc free play at the top of the lever as shown;
it should be bctwecn S-10 mm (3/I&3/8 in).
2. If adjustment is necessary, .looscn the lock nuts
and n~ovc the adjuster up or down as required.
Tighten the lock nuts and recheck free play.
3. Start the cnginc and cheek to be sure the drive
clutch engages and releases properly.
Drive Clutch Free Play (Self-propelled type only)
I
5-10 mm (3/16-3/8 in)
CLUTCH LEVER
32

Honda HR214 Specifications

General

Cutting Width	21 inches
Cutting Height Range	1 to 3 inches
Grass Bag Capacity	2.5 bushels
Deck Material	Steel
Blade Type	Single blade
Starter System	Recoil
Engine Type	4-stroke, single cylinder, air-cooled
Drive Type	Self-propelled
Fuel Capacity	0.5 gallons
Fuel Tank Capacity	0.5 gallons
Mulching Capability	Yes
Oil Capacity	0.6 quarts
Engine	Honda GCV160
