FAIRING/EXHAUST SYSTEM
SEAT & FAIRINGS
REMOVAL/INSTALLATION
SEAT
Unlock the seat lock from the hook latch while turning the key
clockwise.
Remove the seat by pulling it backward.
Install the 3eat in the reverse order of removal.
SIDE COVER
Remove the side cover mounting bolt and unhook the cover
hooks from the frame , then remove the side cover.
FAIRING INNER COVERS
Remove the inner cover mounting bolts and covers.
Install the inner covers in the reverse order of removal.
SIDE FAIRING
Remove the inner covers.
Remove Ihe side fairing mounting bolts then pull out the
prongs.
Carefully pull the fairing down and off the frame.
FRONT FAIRING
Remove the inner covers and side fairings.
Remove the cap nuts and bolts, then remove the front fairing.

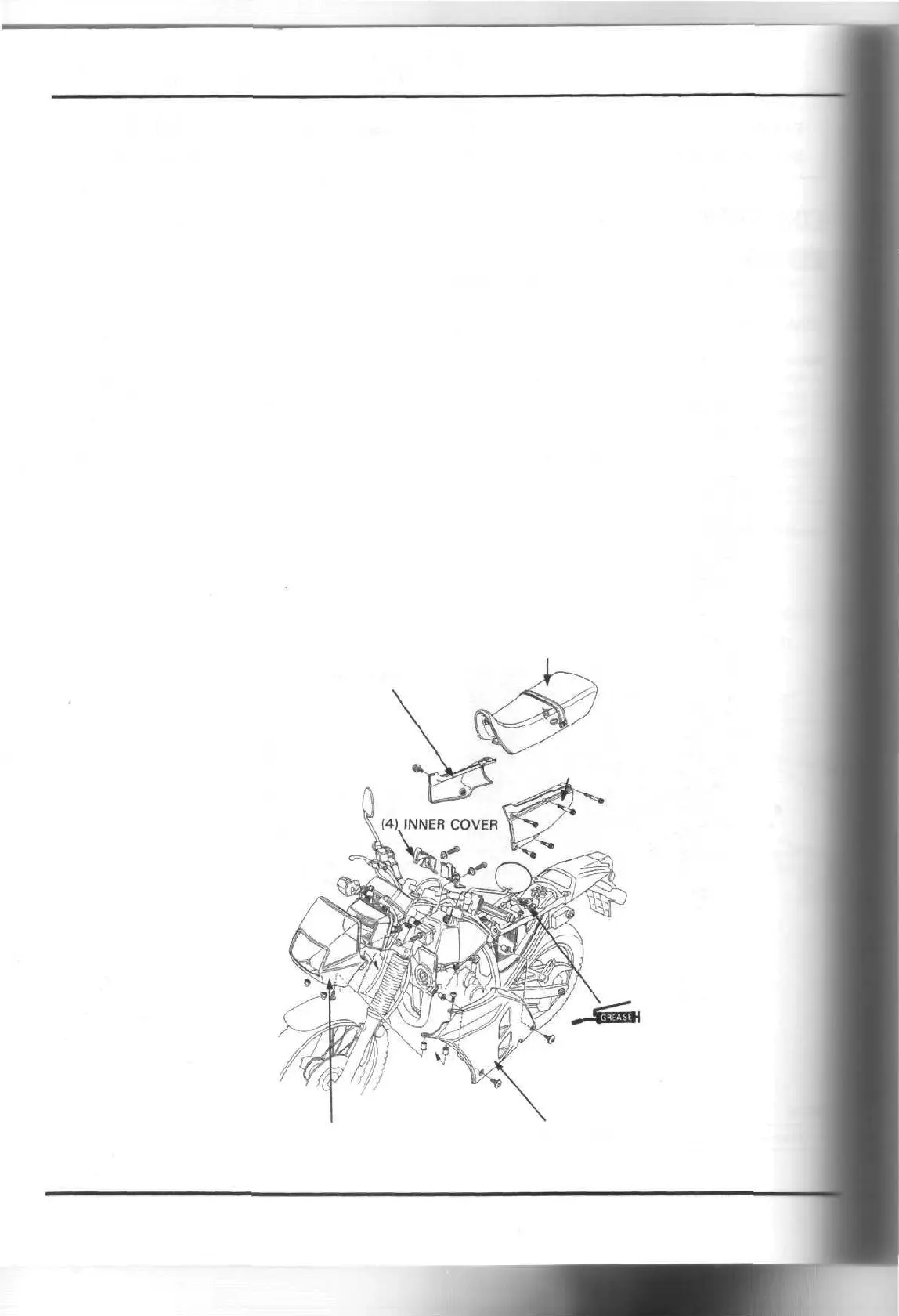

(2) REAR
SIDE COVER
(1) SEAT
(3) AIR CLEANER
CASE COVER
(6) FRONT
FAIRING
<5> SIDE
FAIRING
15-2
