LIGHTS/METERS/SWITCHES

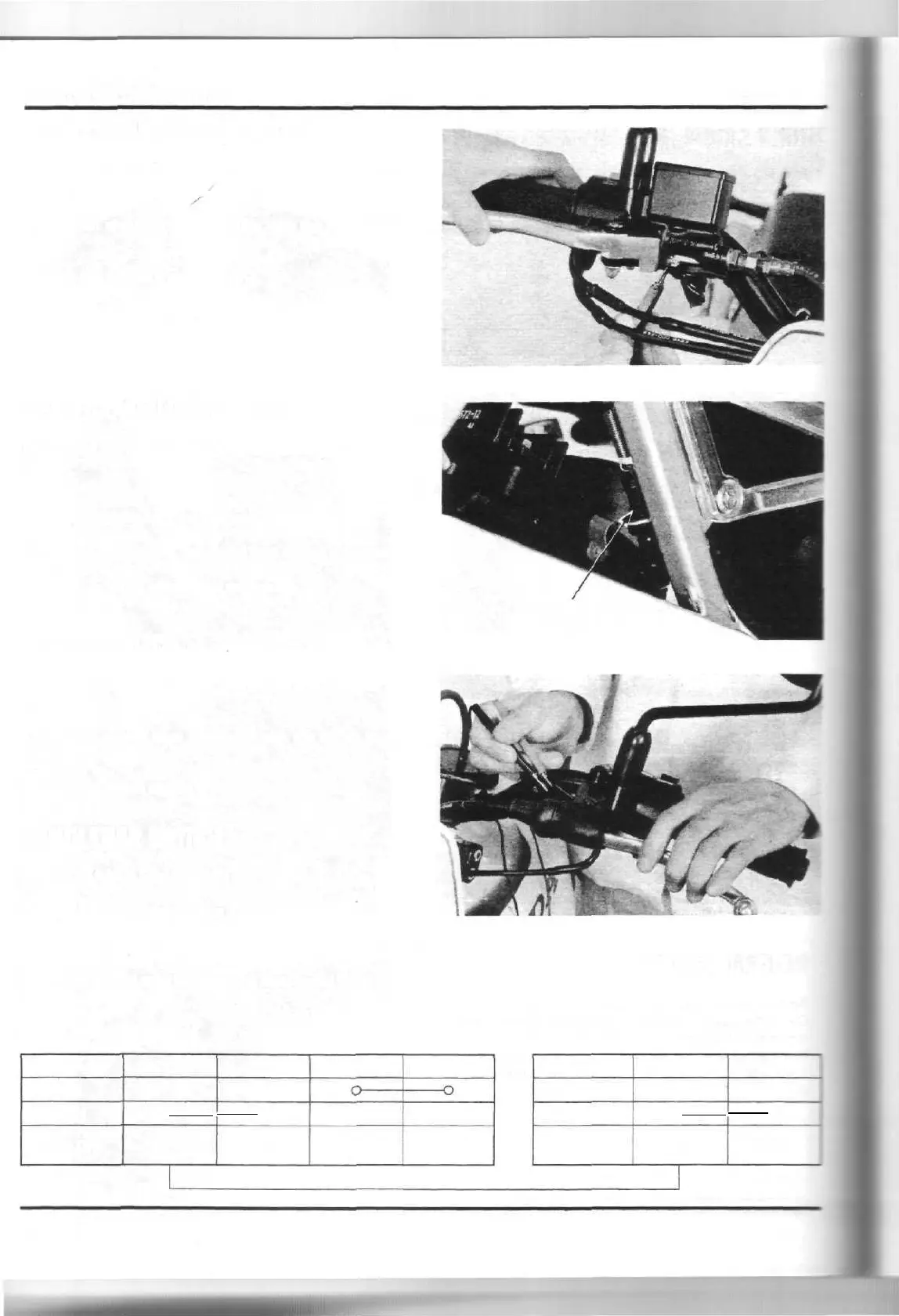

FRONT BRAKE LIGHT SWITCH
Disconnect the front brake light switch connectors and check
for continuity. У
The switch should show continuity with the front brake ap-
plied.
Replace the switch if necessary.
REAR BRAKE LIGHT SWITCH
Disconnect the rear brake light switch and check for continui-
ty.
The switch should have continuity with the rear brake applied
and no continuity with the released.
Replace or readjust the rear brake light switch if necessary.
See page 3-14 for adjustment procedures.
CLUTCH SWITCH
Disconnect the clutch switch connectors and check for conti-
nuity.
The switch should have continuity with the clutch lever ap-
plied.
Replace the clutch switch if necessary.
HANDLEBAR SWITCH
RIGHT HANDLEBAR SWITCH
Remove the front fairing (page 15-2|.
Disconnect the right handlebar switch connector (9P( and
check for continuity between terminals.
Continuity should exist between the color coded wires in each
chart.
Starter Button
(1) REAR BRAKE
LIGHT SWITCH
Engine Stop Switch
FREE
PUSH
COLOR
IG
О •
Bl/W
ST
0
Y/R
HLi
W/G
Br
HL2
Bu/W
OFF
RUN
COLOR
IG
О
Bl/W
BATe
о
Bl/R
19-6
