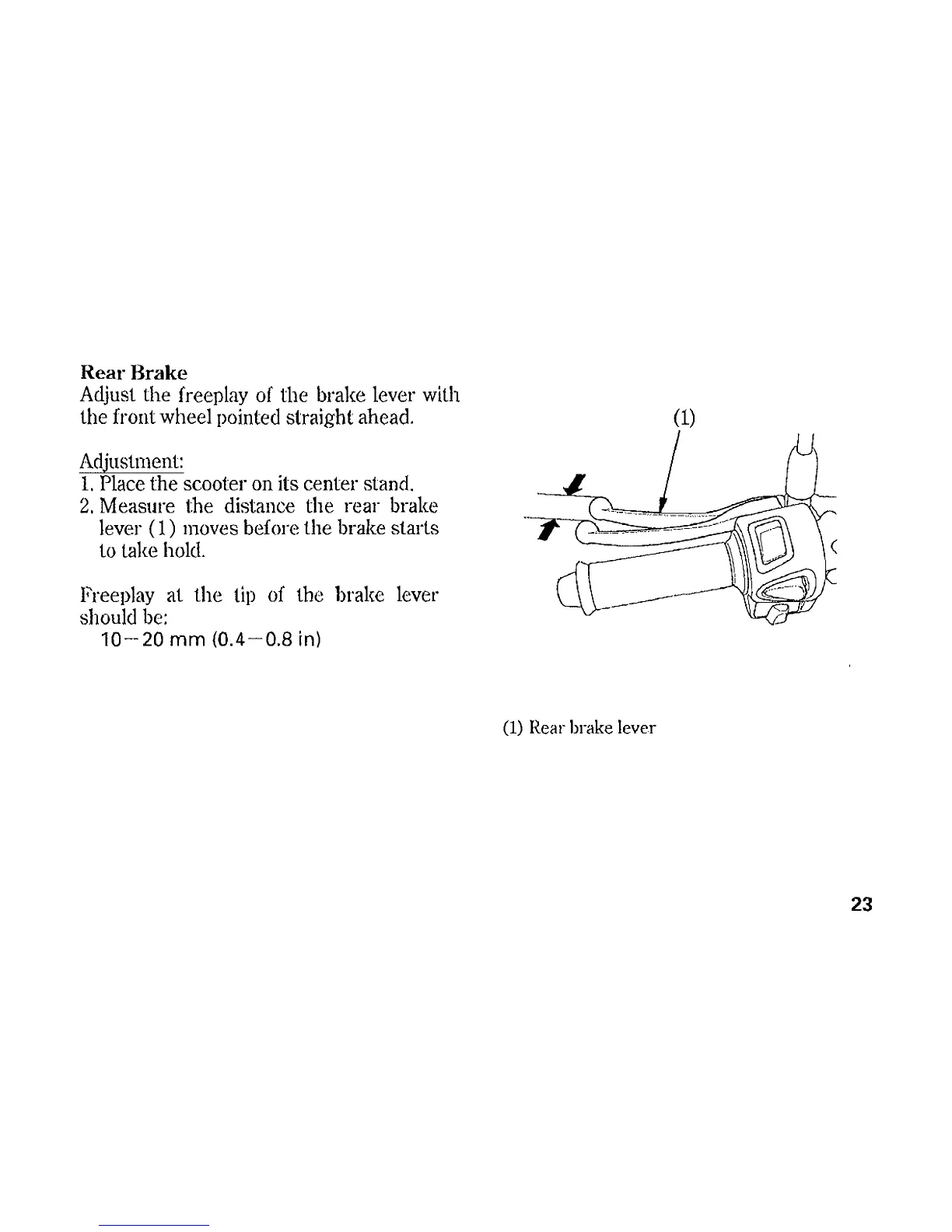

Rear Brake
Adjust the freeplay of the brake lever with
the front wheel pointed straight ahead.
Adjustment:
1. Place the scooter on its center stand.
2. Measure the distance the rear brake
lever (1) moves before the brake starts
to take hold.
Freeplay at the lip of the brake lever
should
be:
10--20 mm (0.4-0.8 inl
(1) Rear brake lever
+
IL
(1)
23
Iii
Provided by http://www.hondapcx.org

Honda PCX125 Specifications

General

Fuel System	PGM-FI electronic fuel injection
Seat Height	764 mm
Starter	Electric
Wheelbase	1, 315 mm
Transmission	Automatic
Front Suspension	Telescopic fork
Front Brake	Single disc
Rear Brake	Drum
Engine Type	Single-cylinder, liquid-cooled, 4-stroke
