19/10/13
10,21,34

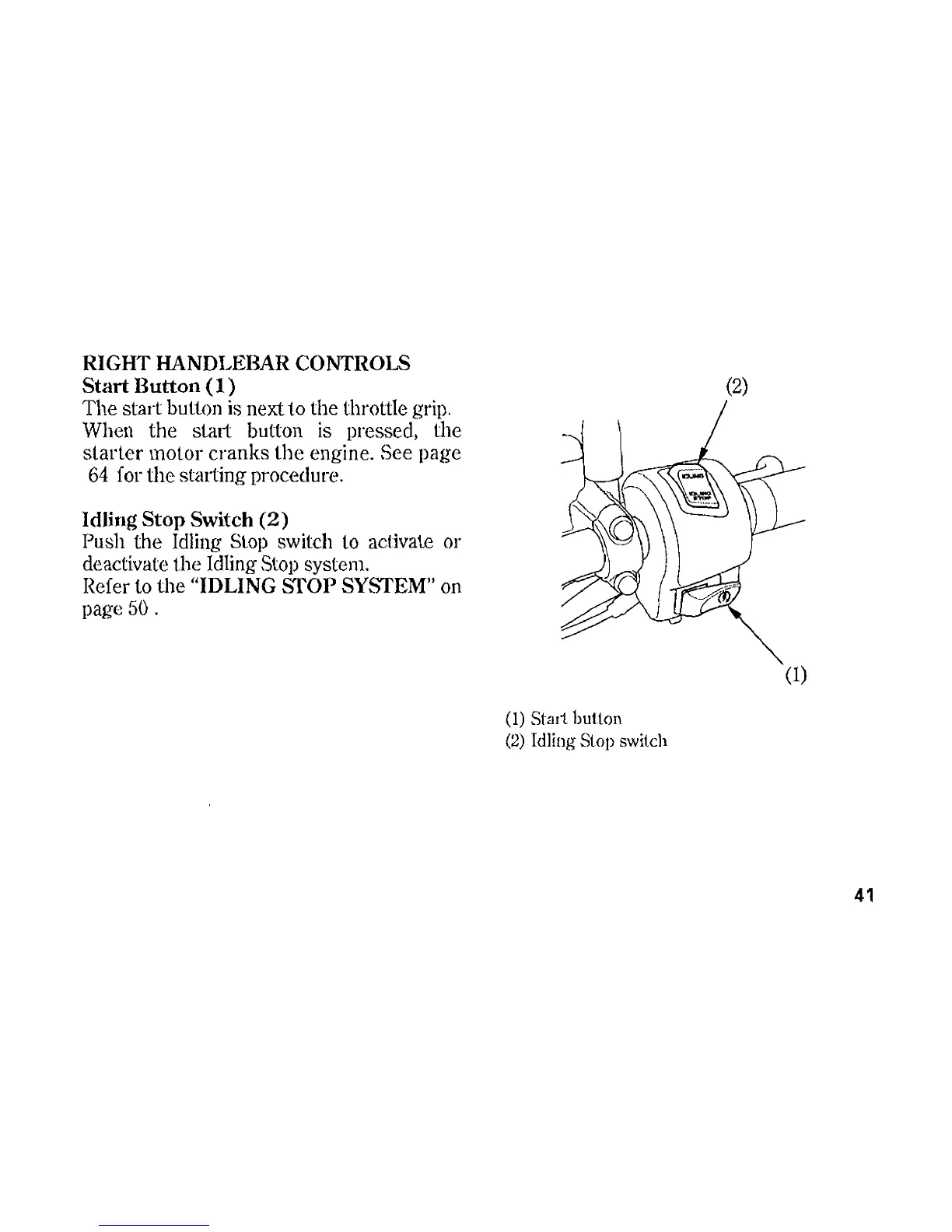

RIGHT HANDLEBAR CONTROLS
Start
Button
(1)
The
start button
is
next to the throttle grip.
When the
statt
button
is
pressed, the
starter motor cranks the engine. See page
64
for the starting procedure.
Idling
Stop
Switch
(2)
Push the Idling Stop switch to activate or
deactivate the Idling Stop system.
Refer to the "IDLING
STOP
SYSTEM" on
page
50.
(1) Start button
(2)
Idling Stop switch
II
(2)
(1)
41
Iii
Provided by http://www.hondapcx.org
