Honda PCX125 User Manual

19/10/13 10,23,55
+
-+
il

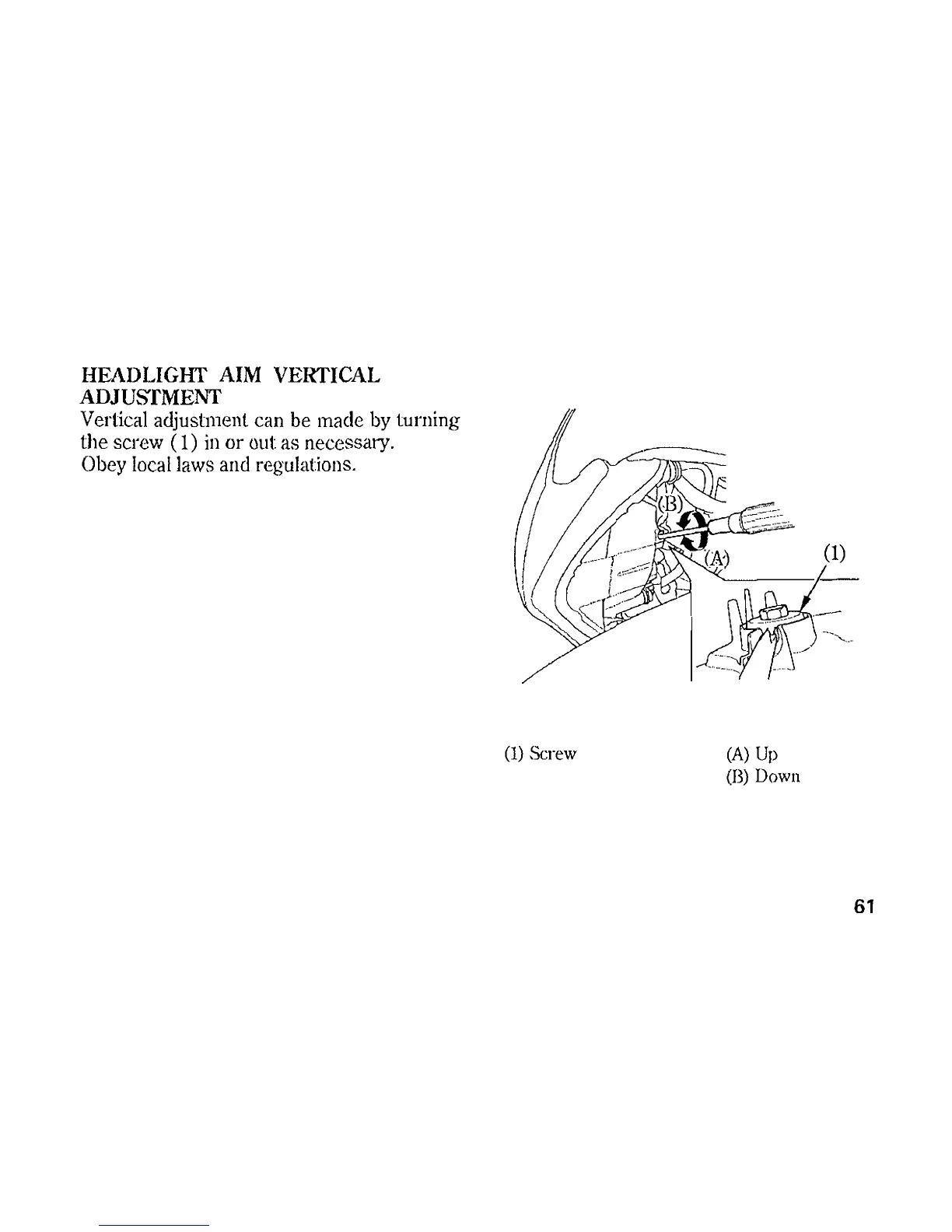

HEADLIGlIT AIM VERTICAL
ADJUSTMENT
Vertical adjustment can be made by turning
the screw
(1) in or out as necessary.
Obey local laws and regulations.
(1) Screw
-J(A:)~ ~
-,._----- .--
-.,'-.,---
--" ,"/
"--,--"' .---
(A) Up
(Il) Down
61
II
Iii
Provided by http://www.hondapcx.org

Honda PCX125 Specifications

General

Fuel System	PGM-FI electronic fuel injection
Seat Height	764 mm
Starter	Electric
Wheelbase	1, 315 mm
Transmission	Automatic
Front Suspension	Telescopic fork
Front Brake	Single disc
Rear Brake	Drum
Engine Type	Single-cylinder, liquid-cooled, 4-stroke
