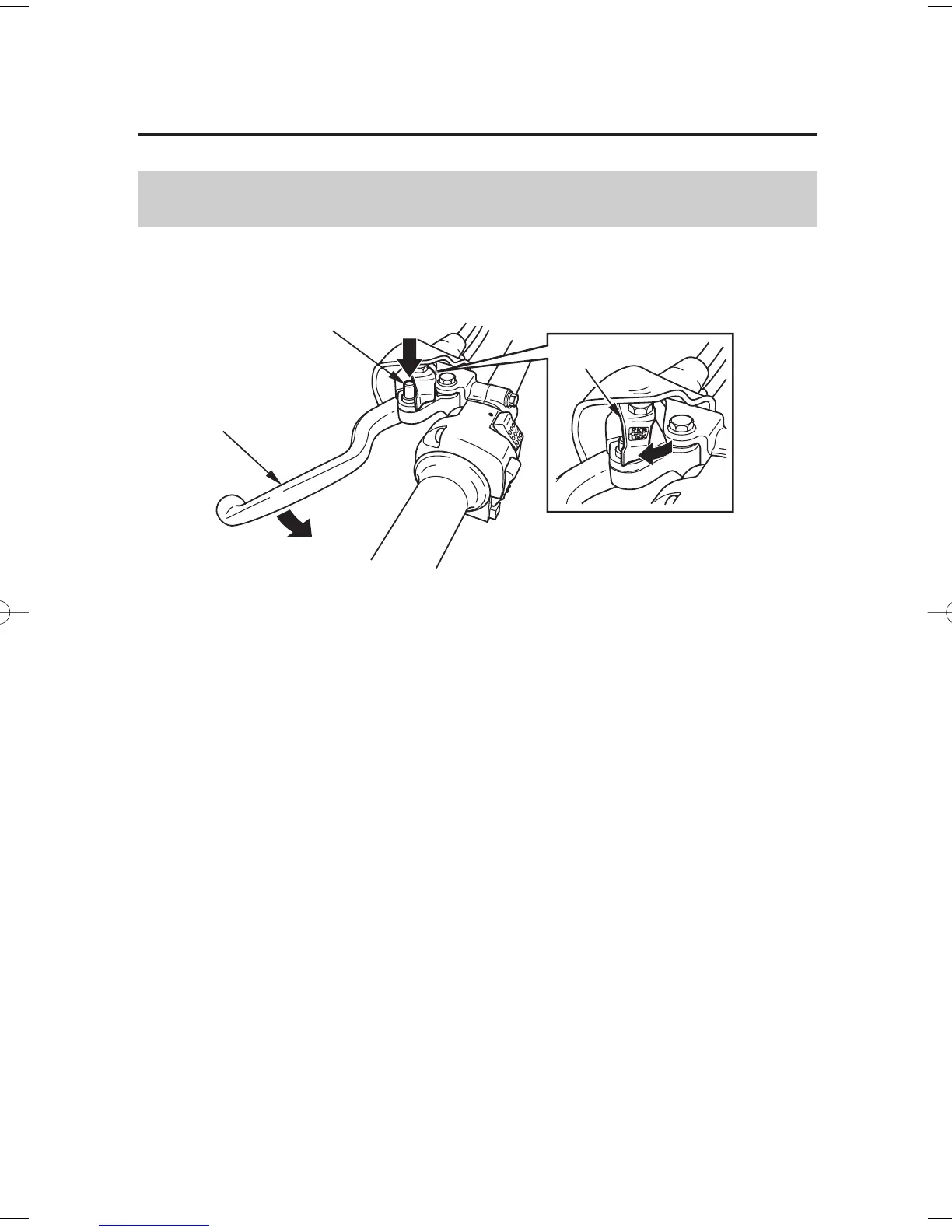

LEFT HANDLEBAR
(A) to lock
(2)
(1)
(3)
(1) lock lever
(2) parking brake pin
((AA))
(3) clutch lever/parking brake lever
25
Parking Brake
Controls & Features
Indicators & Controls
Parking
The lock lever ( ) and parking brake pin ( ) on the clutch lever/parking
brake lever ( ) allows it to be used as a parking brake. To operate, push
down and hold the parking brake pin, squeeze the clutch lever/parking
brake lever and then lock it with the lock lever. See page .
To release the parking brake, squeeze the clutch lever/parking brake
lever.
