4.6. Fitting
lcon is supplied in a panel-mount enclosure. While fitting the controller we
recommend to leave enough room at the back in order to avoid compressing or
excessively bending the cables. Overall instrument size and panel cut-out

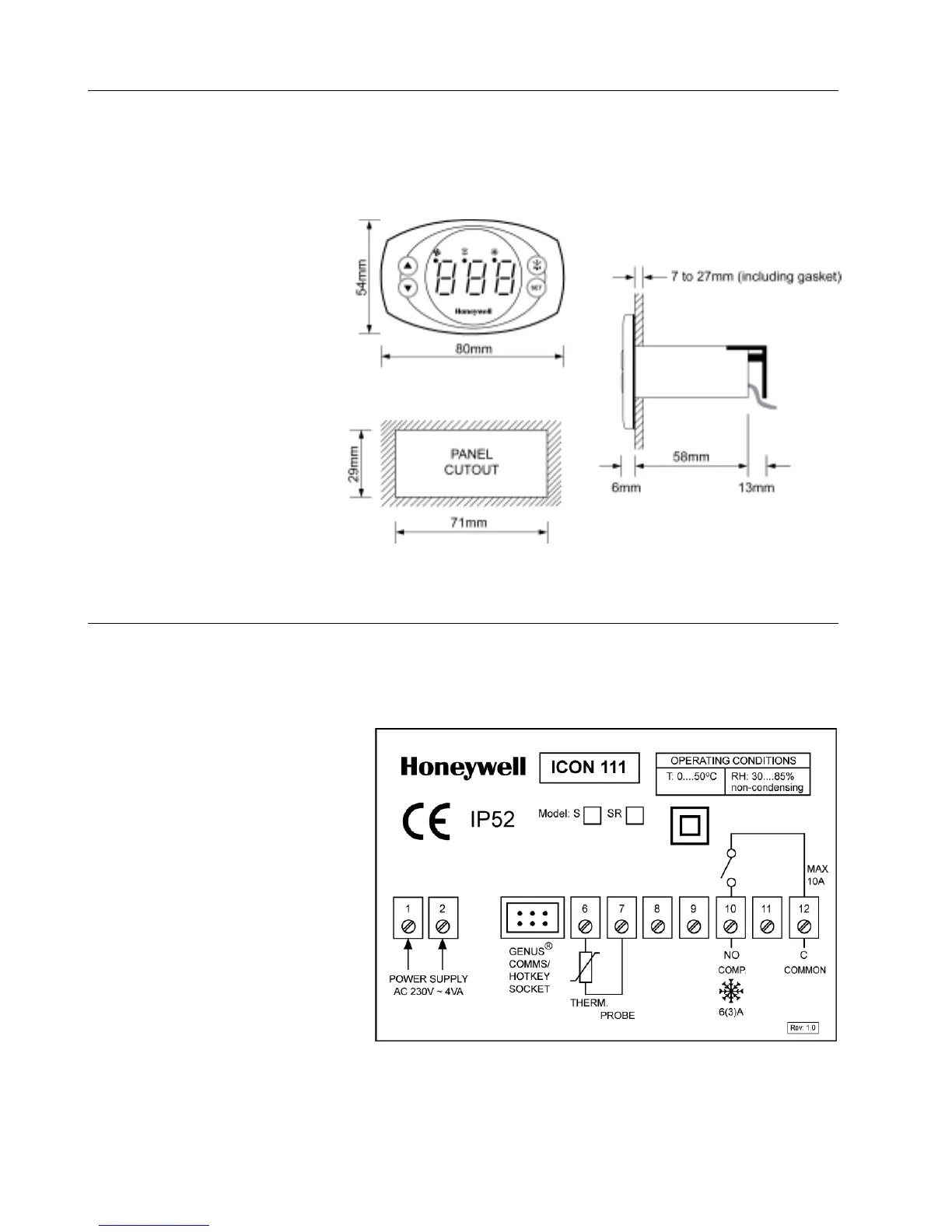

dimensions are given in the Fig. 1. below.
Fig. 1. Fitting Icon
4.7. Connections
We recommend the use of wire gauges adequate for the given load power ratings in
order to avoid damage to the screw connector.
ICON-111S/SR Models
Fig. 2. Icon 111S/SR Electrical Connections
