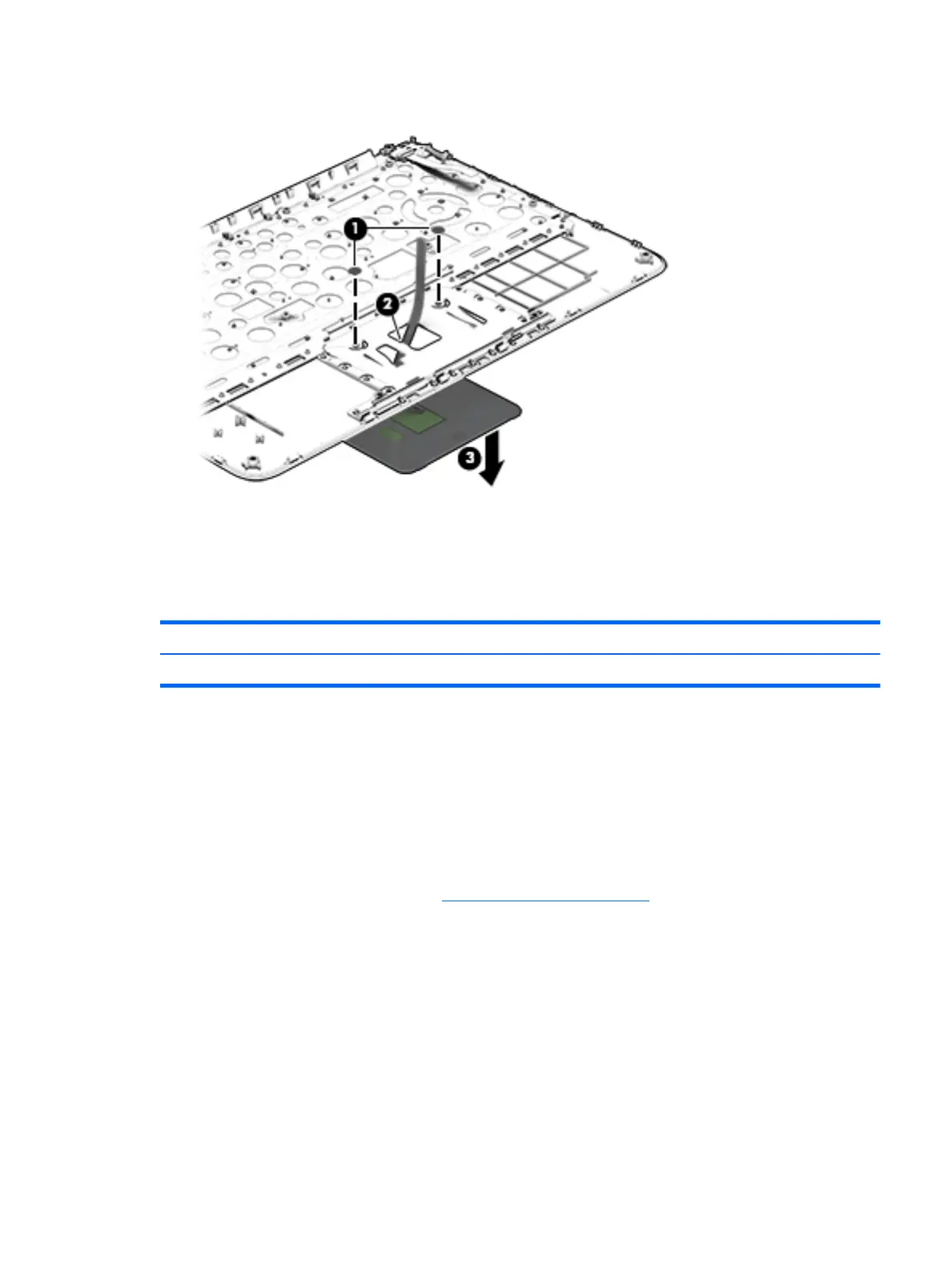

3. Remove the TouchPad and cable (3) by releasing them from the top surface of the keyboard/top cover.
4. Remove the TouchPad.
Reverse this procedure to install the TouchPad.
Battery
Description Spare part number
Battery, 3-cell, 43-WHr, 2.83-AHr, Li-ion (includes cable) 761230-005
Before removing the battery, follow these steps:
1. Shut down the computer. If you are unsure whether the computer is off or in Hibernation, turn
the computer on, and then shut it down through the operating system.
2. Disconnect all external devices connected to the computer.
3. Disconnect the power from the computer by first unplugging the power cord from the AC outlet and
then unplugging the AC adapter from the computer.
4. Remove the keyboard/top cover (see Keyboard/top cover on page 27).
Remove the battery:
1. Disconnect the battery cable (1) from the system board.
2. Release the ZIF connector (2) to which the audio/USB board cable is attached, and then disconnect
the audio/USB board cable from the system board.
3. Detach the audio/USB board cable (3) from the battery. (The audio/USB board cable is attached to
the battery with double-sided adhesive.)
4. Remove the two PM2.4×5.7 screws (4) that secure the battery to the bottom cover.
5. Lift the right side of the battery (5) until it rests at an angle.
Battery 31
