Speakers
Description Spare part number
Speakers (include left and right speakers and cables) 768024-001
Before removing the speakers, follow these steps:
1. Shut down the computer. If you are unsure whether the computer is off or in Hibernation, turn
the computer on, and then shut it down through the operating system.
2. Disconnect all external devices connected to the computer.
3. Disconnect the power from the computer by first unplugging the power cord from the AC outlet and
then unplugging the AC adapter from the computer.
4. Remove the keyboard/top cover (see Keyboard/top cover on page 27).
5. Remove the battery (see Battery on page 31).
6. Remove the audio/USB board (see Audio/USB board on page 36).

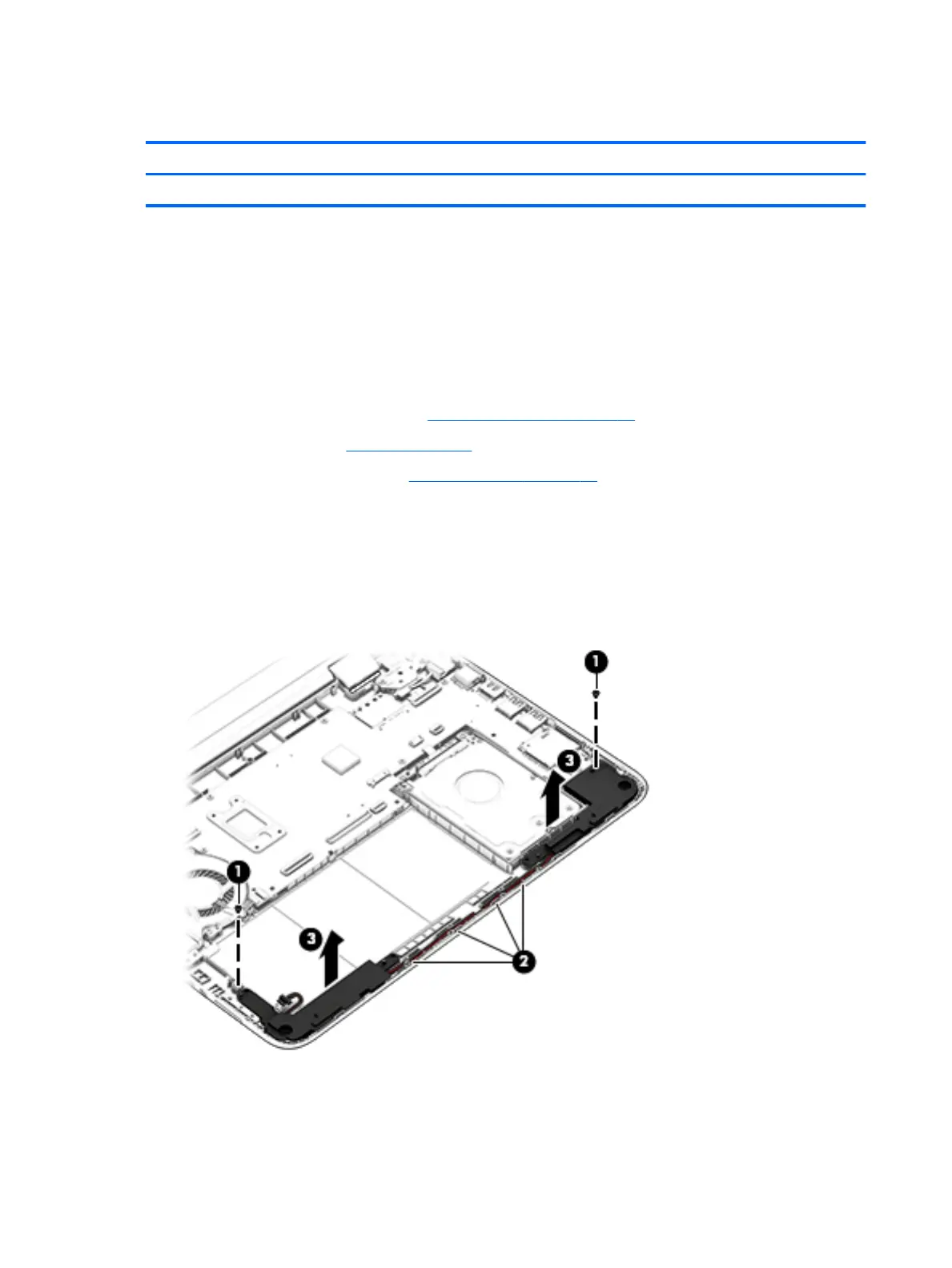

Remove the speakers:
1. Disconnect the speaker cable (1) from the audio/USB board.
2. Release the speakers cables from the retention clips (2) built into the bottom cover.
3. Remove the two Phillips PM2.4×3.7 screws (3) that secure the speakers to the bottom cover.
4. Remove the speakers (4).
Reverse this procedure to install the speakers.
38 Chapter 5 Removal and replacement procedures
