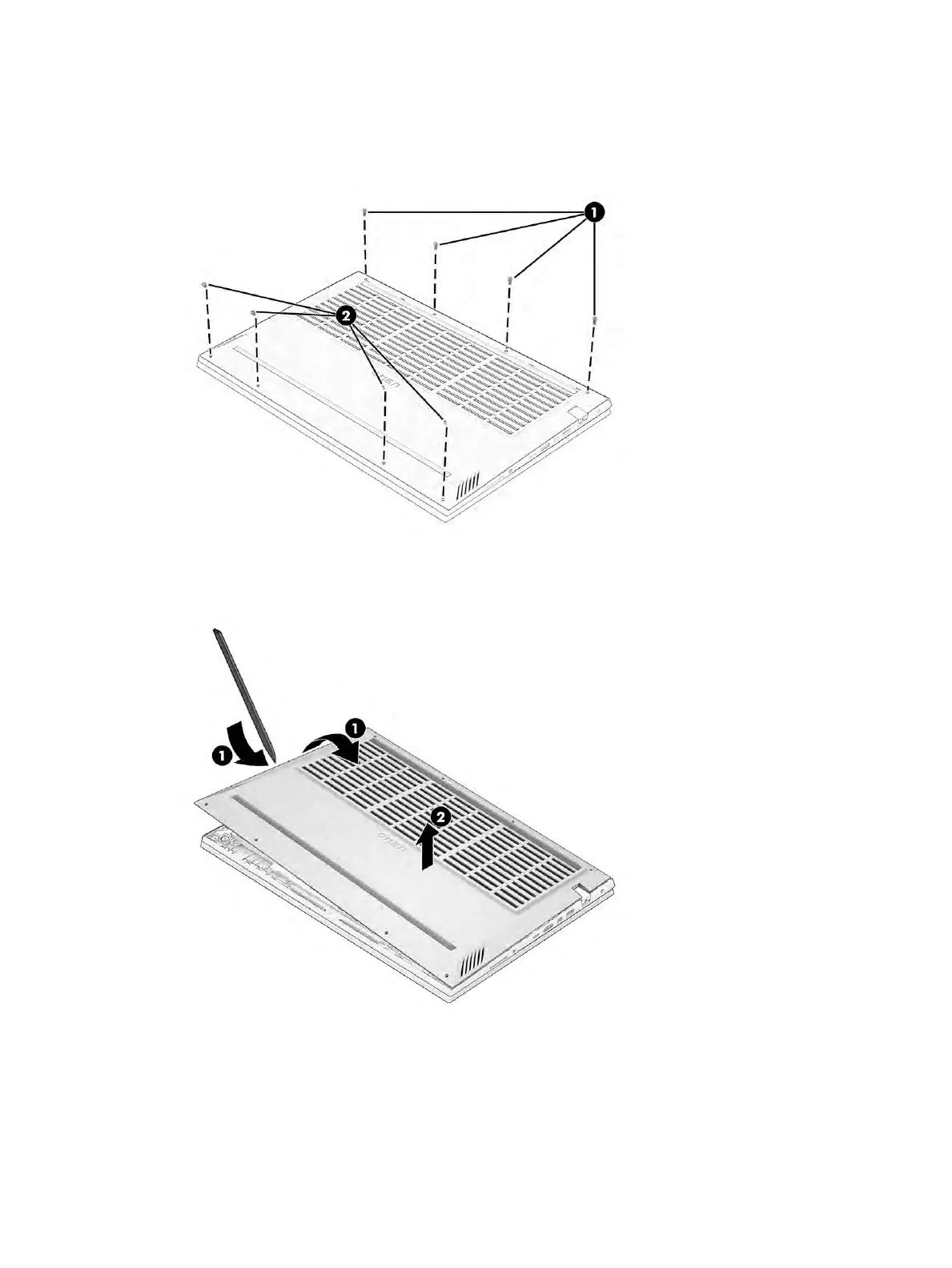

Remove the bottom cover:
1. Remove the four Phillips M2.0 × 7.0 screws (1) that secure the bottom cover to the computer.
2. Remove the four Phillips M2.0 × 4.0 screws (2) that secure the bottom cover to the computer.
3. Use a tool to release side of the bottom cover from the computer (1).
4. Remove the bottom cover from the computer (2).
To replace the bottom cover, reverse the removal procedures.
Battery
To remove the battery, use this procedure and illustration.
32 Chapter 5 Removal and replacement procedures for authorized service provider parts
