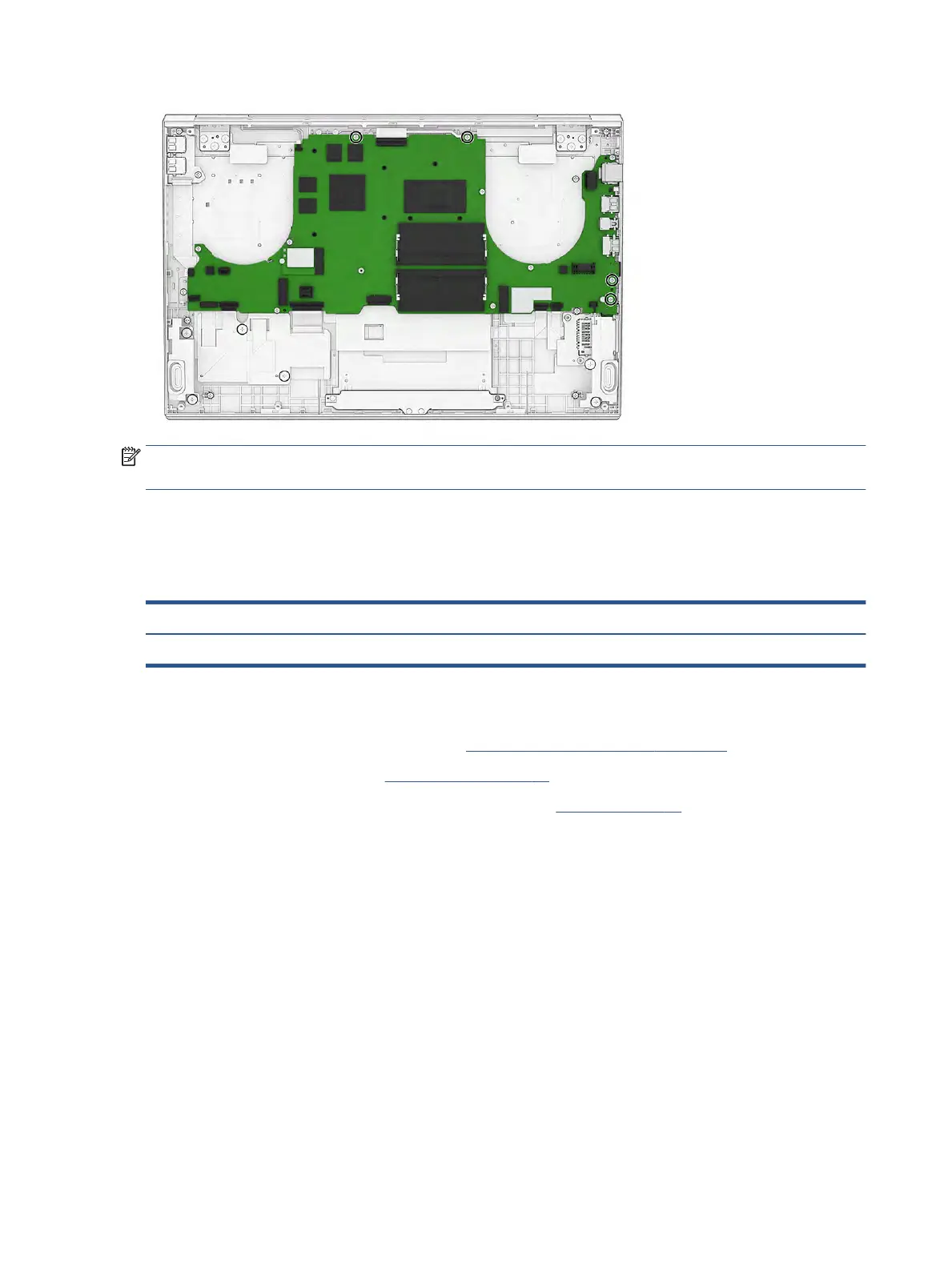

NOTE: The thermal pad between the system board and top cover/keyboard is available as spare part
number M57181-001.
Speaker, right
To remove the right speaker, use this procedure and illustration.
Table 5-13 Right speaker description and part number
Description Spare part number
Right speaker M57164-001
Before removing the right speaker, follow these steps:
1. Prepare the computer for disassembly (see Preparation for disassembly on page 31).
2. Remove the bottom cover (see Bottom cover on page 31).
3. Disconnect the battery cable from the system board (see Battery on page 32).
Remove the right speaker:
1. Remove the Phillips M2.0 × 2.5 screw from the speaker (1).
2. Disconnect the speaker cable from the system board (2).
48 Chapter 5 Removal and replacement procedures for authorized service provider parts
