HP 22cw User Manual

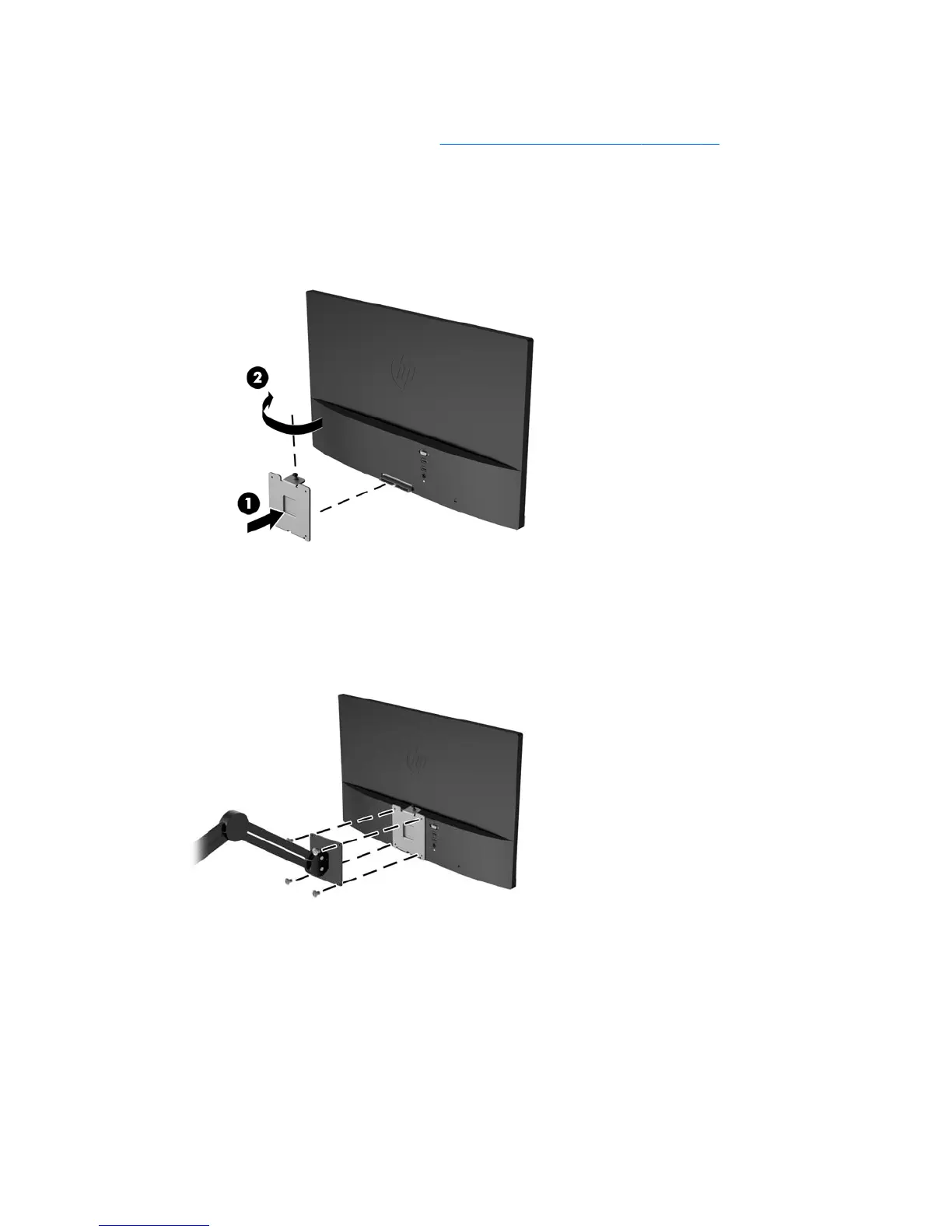

Attaching the VESA Mount Kit (Available with Select Models)
1. Remove the monitor stand. Refer to Removing the Monitor Stand on page 13.
2. Remove the screw from the center of the rear of the display head.
3. Insert the tab at the bottom of the VESA mount into the slot on the back of the display head until
the VESA mount clicks in place (1), and then secure the top of the VESA mount with the screw
that was installed in the center of the display head (2).
4. To attach the monitor to a swing arm or other mounting device (purchased separately), insert
four mounting screws through the holes on the mounting device and into the screw holes on the
VESA mount that was installed on the rear of the monitor.
14 Chapter 3 Setting Up the Monitor

HP 22cw Specifications

General

Brand	HP
Model	22cw
Category	Monitor
Language	English
