Table 5-8 Solid-state drive descriptions and part numbers (continued)
Description Spare part number
● 1 TB L85370-005
● 512 GB L85364-005
● 256 GB L85354-005
Solid-state drive, SATA-3, TLC:
● 256 GB 938184-855
● 128 GB L85346-005
Before removing the solid-state drive, follow these steps:
1. Prepare the computer for disassembly (Preparation for disassembly on page 26).
2. Remove the rubber feet (see Computer feet on page 26).
3. Remove the bottom cover (see Bottom cover on page 27).
4. Remove the battery (see Battery on page 28).
Remove the solid-state drive:

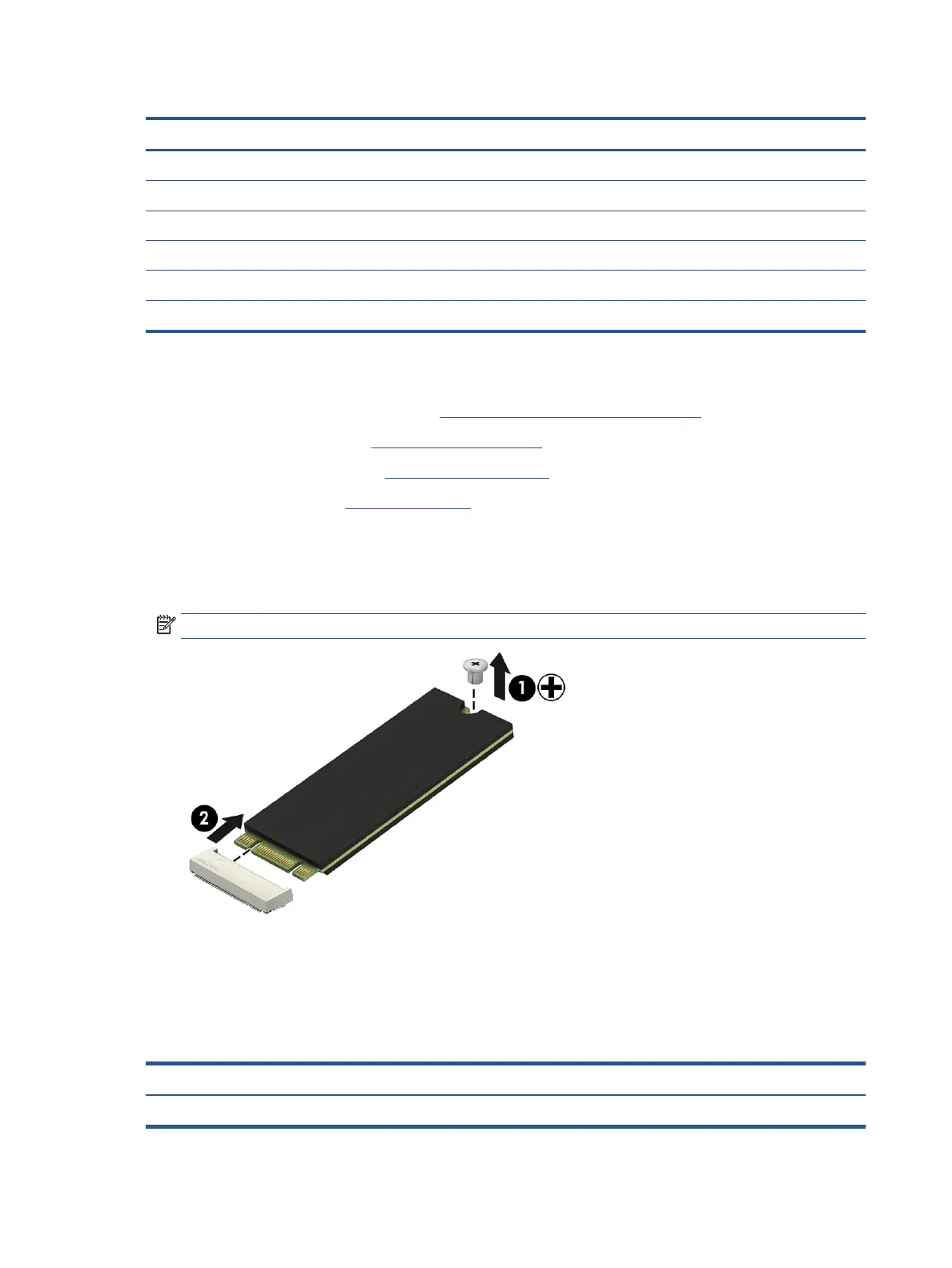

1. Remove the Phillips M2.0 × 2.0 screw (1) that secures the drive to the system board.
2. Remove the drive (2) by pulling it away from the connector.
NOTE: Solid-state drives are designed with notches to prevent incorrect insertion.
Reverse this procedure to install the solid-state drive.
Speakers
To remove the speakers, use this procedure and illustration.
Table
5-9 Speakers description and part number
Description Spare part number
Speakers (includes left and right speakers and cable) 926558-001
36 Chapter 5 Removal and replacement procedures for authorized service provider parts
