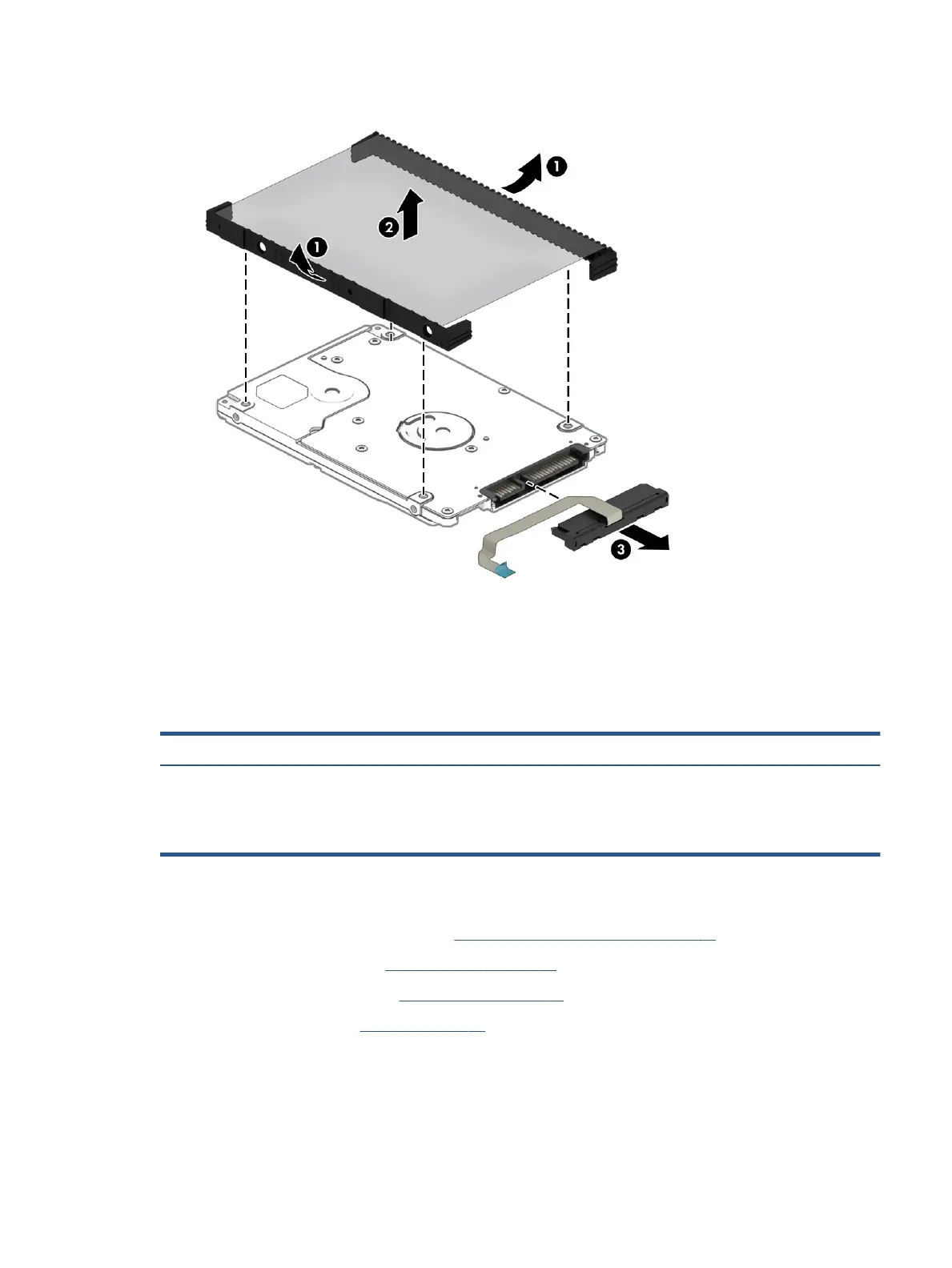

4. To remove the hard drive connector, pull the connector (3) away from the hard drive.
Reverse this procedure to reassemble and install the hard drive.
Solid-state drive (SSD) board
To remove the SSD board, use this procedure and illustration.
Table
5-5 SSD board descriptions and part numbers
Description Spare part number
SSD board L24487-001
SSD bracket L24488-001
SSD cable L23397-001
Before removing the SSD board, follow these steps:
1. Prepare the computer for disassembly (Preparation for disassembly on page 26).
2. Remove the rubber feet (see Computer feet on page 26).
3. Remove the bottom cover (see Bottom cover on page 27).
4. Remove the battery (see Battery on page 28).
To remove the SSD board:
1. Lift the ZIF connector (1), and then disconnect the cable (2) from the SSD board.
Component replacement procedures 31
