3. Remove the bottom cover (see Bottom cover on page 27).
4. Remove the battery (see Battery on page 28).
5. Remove the right hinge screw and lift the right hinge (see Display assembly on page 46).

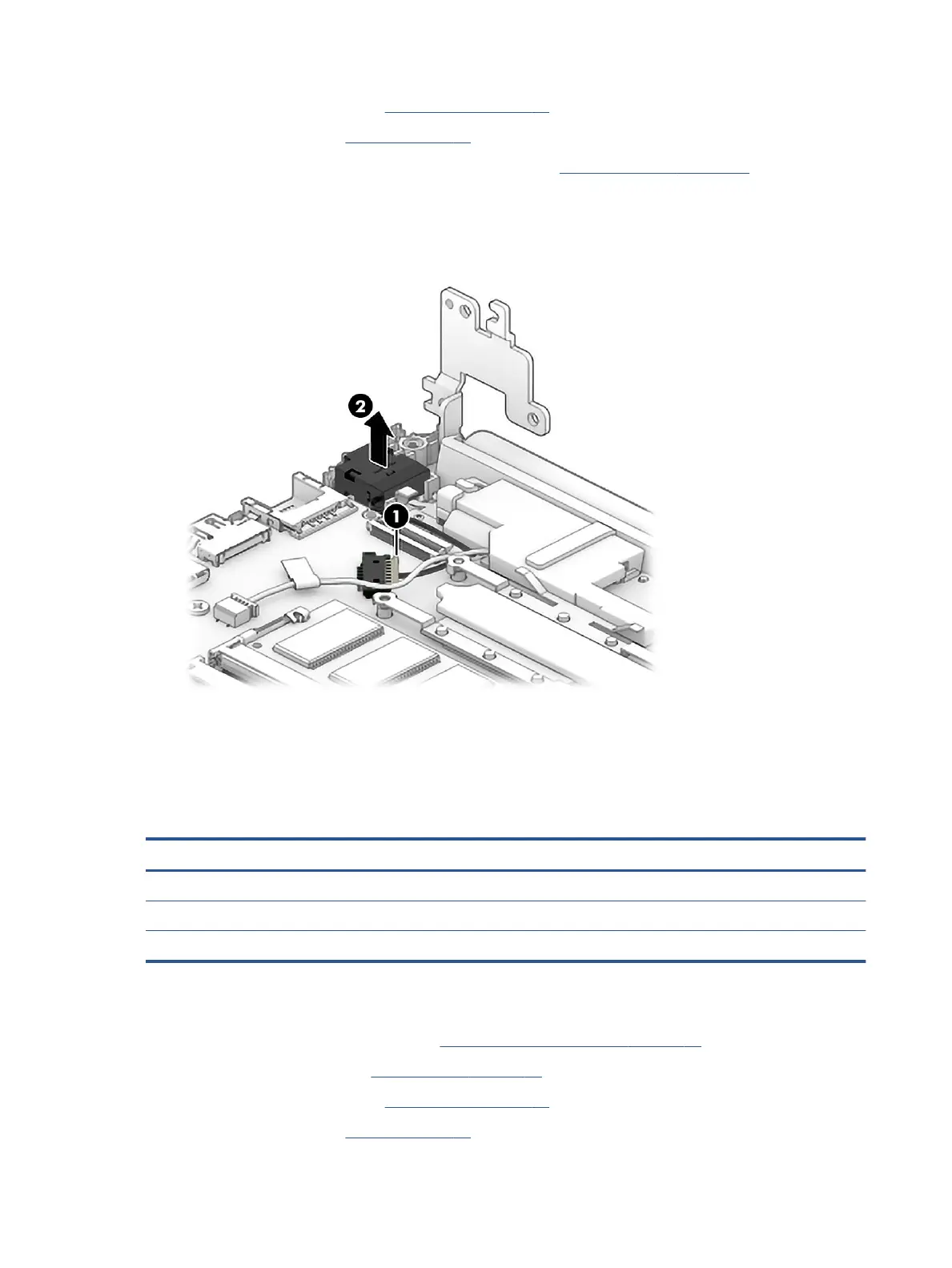

Remove the power connector:
1. Disconnect the power connector cable (1) from the system board.
2. Lift the power connector (2) to remove it.
Reverse this procedure to install the power connector.
Touchpad click board
To remove the touchpad click board, use this procedure and illustration.
Table
5-11 Touchpad click board part descriptions and part numbers
Description Spare part number
Touchpad click board L24486-001
Touchpad board cable L23184-001
Touchpad click board cable L24485-001
Before removing the touchpad click board, follow these steps:
1. Prepare the computer for disassembly (Preparation for disassembly on page 26).
2. Remove the rubber feet (see Computer feet on page 26).
3. Remove the bottom cover (see Bottom cover on page 27).
4. Remove the battery (see Battery on page 28).
38 Chapter 5 Removal and replacement procedures for authorized service provider parts
