HP 245 G8 User Manual

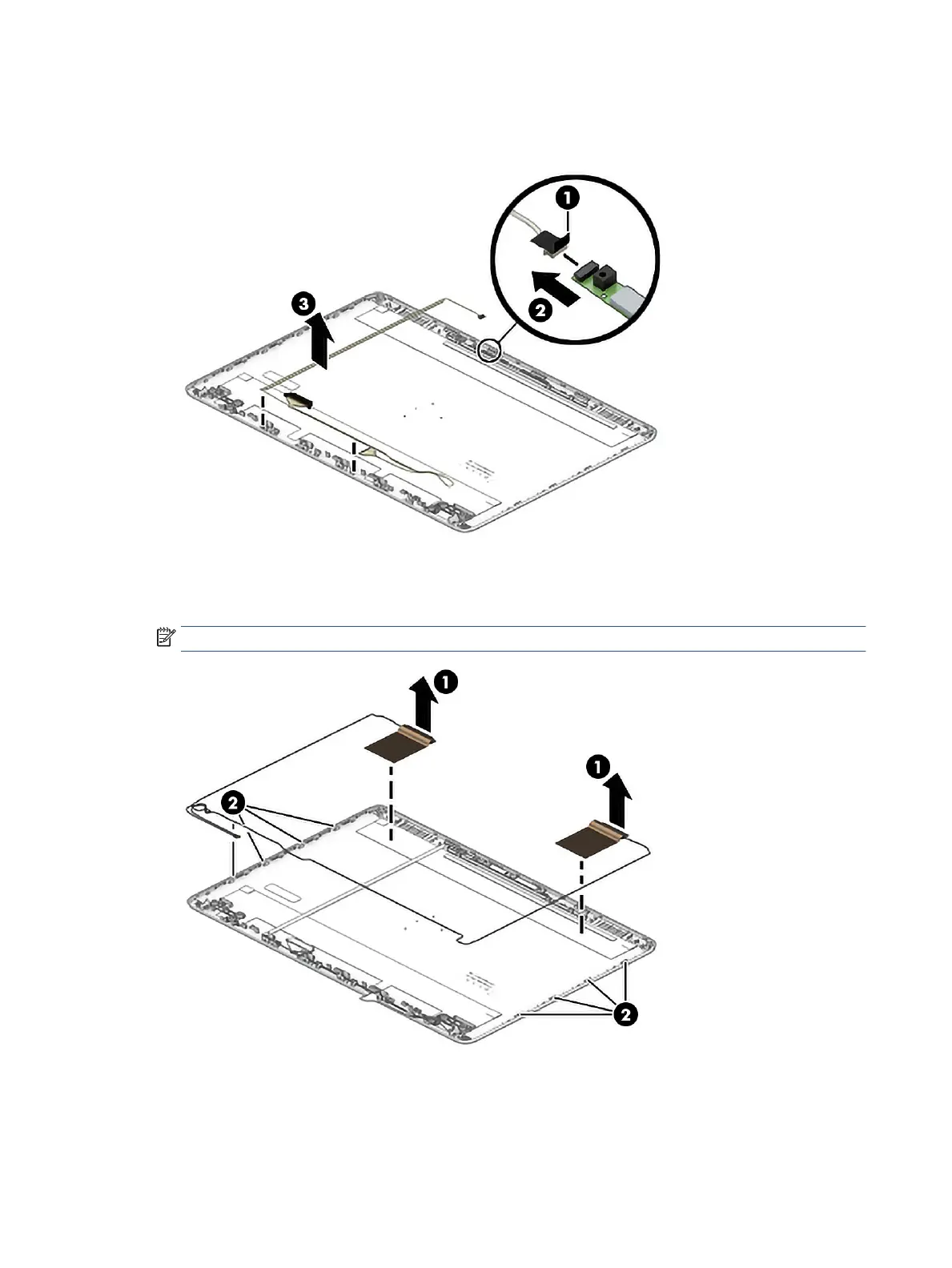

12. To remove the display/webcam cable, lift the tape from the connector on the webcam module (1), and
then disconnect the cable from the webcam module (2). Lift the cable from the display enclosure to
disengage the adhesive that secures it (3).
13. To remove the wireless antennas and cables, release the wireless antenna cables from the clips (1) built
into the side of the display enclosure, and then peel the antennas of the display enclosure (2) to remove
the antennas and cables.
NOTE: Number of antennas and transceivers can vary.
14. If replacing the display enclosure, be sure that the subcomponents (including the webcam/microphone
module, the antenna receivers, and all associated cables and hardware) are transferred to the new
enclosure.
52 Chapter 5 Removal and replacement procedures for authorized service provider parts

HP 245 G8 Specifications

General

Battery	3-cell, 41 Wh Li-ion
Dimensions	32.4 x 22.59 x 1.99 cm
Storage	256 GB PCIe NVMe M.2 SSD
Display	14-inch HD (1366 x 768)
Graphics	AMD Radeon Graphics
Operating System	Windows 10 / Windows 11
Weight	1.47 kg
Ports	1 x RJ-45, 1 x headphone/microphone combo
Wireless	Bluetooth 4.2
Processor	AMD Ryzen 3 5300U, AMD Ryzen 5 3500U
RAM	8 GB DDR4-3200
