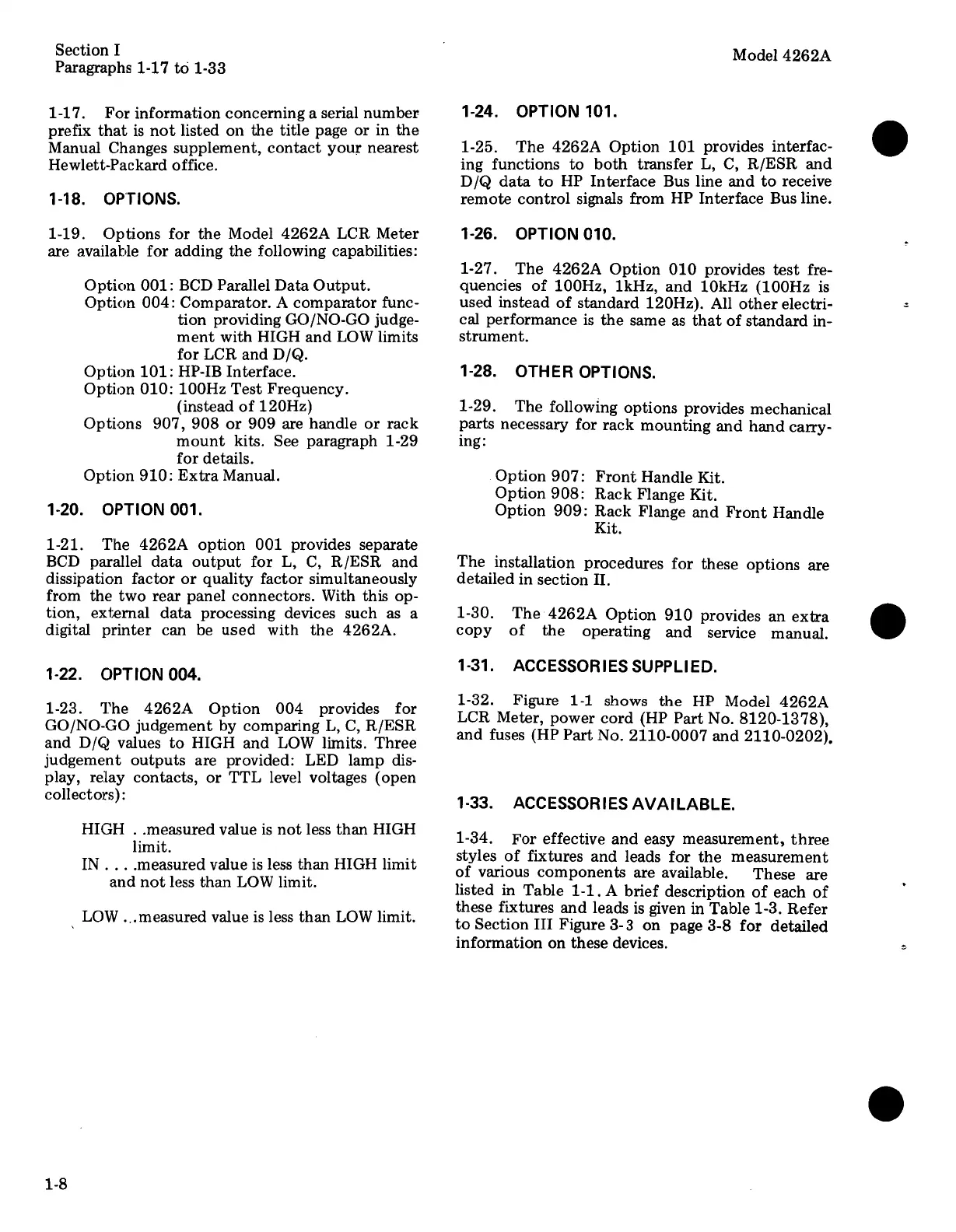

Section I
Paragraphs 1-17 to 1-33
1-17. For information concerning a serial number
prefix that is not listed on the title page or in the
Manual Changes supplement, contact your nearest
Hewlett-Packard office.
1-18. OPTIONS.
1-19. Options for the Model 4262A LCR Meter
are available for adding the following capabilities:
Option 001: BCD Parallel Data Output.
Option 004: Comparator. A comparator func-
tion providing GO/NO-GO judge-
ment with HIGH and LOW limits
for LCR and D/Q.
Option 101: HP-IB Interface.
Option 010: 100Hz Test Frequency.
(instead of 120Hz)
Options 907, 908 or 909 are handle or rack
mount kits. See paragraph 1-29
for details.
Option 910: Extra Manual.
1-20. OPTION 001.
1-21. The 4262A option 001 provides separate
BCD parallel data output for L, C, R/ESR and
dissipation factor or quality factor simultaneously
from the two rear panel connectors. With this op-
tion, external data processing devices such as a
digital printer can be used with the 4262A.
1-22. OPTION 004.
1-23. The 4262A Option 004 provides for
GO/NO-GO judgement by comparing L, C, R/ESR
and D/Q@ values to HIGH and LOW limits. Three
judgement outputs are provided: LED lamp dis-
play, relay contacts, or TTL level voltages (open
collectors):
HIGH . .measured value is not less than HIGH
limit.
IN ... .measured value is less than HIGH limit
and not less than LOW limit.
\ LOW ...measured value is less than LOW limit.
Model 4262A
1-24. OPTION 101.
1-25. The 4262A Option 101 provides interfac-
ing functions to both transfer L, C, R/ESR and
D/Q data to HP Interface Bus line and to receive
remote control signals from HP Interface Bus line.
1-26. OPTION 010.
1-27. The 4262A Option 010 provides test fre-
quencies of 100Hz, 1kHz, and 10kHz (100Hz is
used instead of standard 120Hz). All other electri-
cal performance is the same as that of standard in-
strument.
1-28. OTHER OPTIONS.
1-29.
The
following
options
provides
mechanical
parts
necessary
for
rack
mounting
and
hand
carry-
ing:
Option 907: Front Handle Kit.
Option 908: Rack Flange Kit.
Option
909:
Rack
Flange
and
Front
Handle
Kit.
The
installation
procedures
for
these
options
are
detailed
in section II.
1-30.
The
4262A
Option
910
provides
an
extra
copy
of
the
operating
and
service
manual.
1-31. ACCESSORIES SUPPLIED.
1-32. Figure 1-1 shows the HP Model 4262A
LCR Meter, power cord (HP Part No. 8120-1378),
and fuses (HP Part No. 2110-0007 and 2110-0202),
1-33. ACCESSORIES AVAILABLE.
1-34. For effective and easy measurement, three
styles of fixtures and leads for the measurement
of
various
components
are
available.
These
are
listed in Table 1-1. A brief description of each of
these fixtures and leads is given in Table 1-3. Refer
to Section III Figure 3-3 on page 3-8 for detailed
information on these devices.
