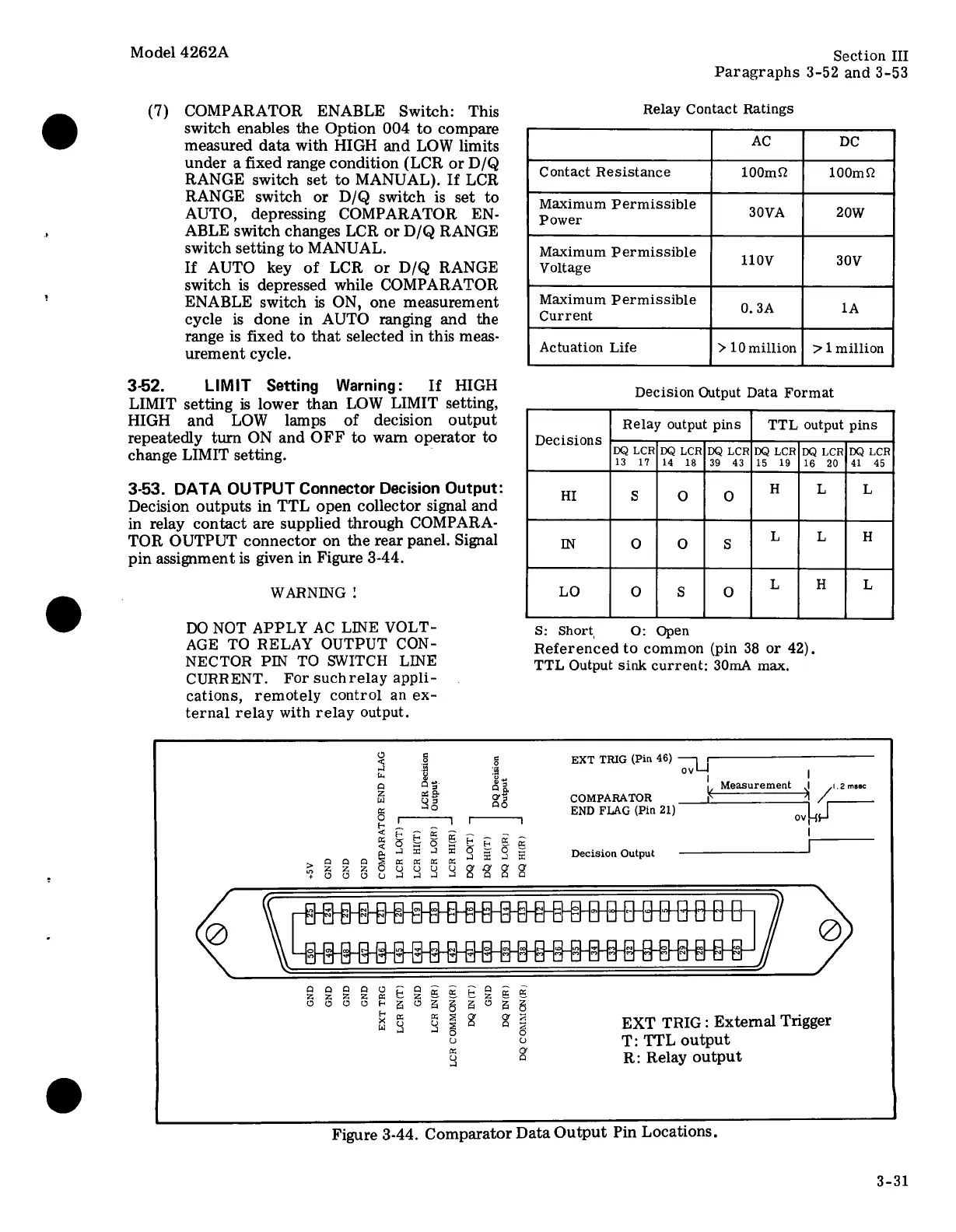

(7) COMPARATOR ENABLE Switch: This
switch enables the Option 004 to compare
measured data with HIGH and LOW limits
under a fixed range condition (LCR or D/Q
RANGE switch set to MANUAL). If LCR
RANGE switch or D/Q switch is set to
AUTO, depressing COMPARATOR EN-
ABLE switch changes LCR or D/Q RANGE
switch setting to MANUAL.
If AUTO key of LCR or D/Q RANGE
switch is depressed while COMPARATOR
ENABLE switch is ON, one measurement
cycle is done in AUTO ranging and the
range is fixed to that selected in this meas-
urement cycle.
352. LIMIT Setting Warning: If HIGH
LIMIT setting is lower than LOW LIMIT setting,
HIGH and LOW lamps of decision output
repeatedly turn ON and OFF to wam operator to
change LIMIT setting. '
3-53. DATA OUTPUT Connector Decision Output:
Decision outputs in TTL open collector signal and
in relay contact are supplied through COMPARA-
TOR OUTPUT connector on the rear panel. Signal
pin assignment is given in Figure 3-44.
WARNING !
DO NOT APPLY AC LINE VOLT-
AGE TO RELAY OUTPUT CON-
NECTOR PIN TO SWITCH LINE
CURRENT. For suchrelay appli-
cations, remotely control an ex-
ternal relay with relay output.
Section III
Paragraphs 3-52 and 3-53
Relay Contact Ratings
AC DC
Contact Resistance 100m¢ 100m$%
Maximum Permissible
Power 30vA 20w
Maximum Permissible
Voltage 110V 30V
Maximum Permissible
Current 0.3A 14
Actuation Life > 10million | > 1 million
Decision Output Data Format
Relay output pins TTL output pins
Decisions
DQ LCR|DQ LCR|DQ LCR|DQ LCR|DQ LCR|DQ LCR
13 17 |14 18 [39 43|15 19 |16 20 |41 45
HI s|o|of|®B | |EL
IN 0] 0] S L L H
LO o|s |o (L | ®B|L
S: Short Q: Open
Referenced to common (pin 38 or 42).
TTL Output sink current: 30mA max.
g ko g
wl 4 ‘R
I 5. g
a Q5 a3
- B
o 38 adé
s]
feczg-
[ ) - =
r5 &3 & £ =
E.J:x:.-l:l: \E’Q
aaa @ o om X =
> e
z 2z o v VoV fe g
2% 8586333385 2 g
DQ
HI{R)
EXT TRIG (Pin 46) —
ov | |
Measurement | 1.2 msec
COMPARATOR —
END FLAG (Pin 21) ov ,_J
|
g
Decision Output
>
I}
—
g
g
sBal:
(04]
EXT
TRG
DQ
IN(T)
LCR
COMMON(R}
DQ
IN(R)
DQ
COMMON(R)
EXT
TRIG
:
External
Trigger
T:
TTL
output
R:
Relay
output
Figure
3-44.
Comparator
Data
Output
Pin
Locations.
3-31
