Removing a power supply
To remove a power supply:
1. Wear an ESD-preventive wrist strap and make sure it makes good skin contact and is well
grounded.
2. Disconnect the power cord.
3. Loosen the captive screws of the power supply with a Philips screwdriver until they are completely
disengaged.
4. Grasp the handle of the power supply with one hand and pull it out a little, support the bottom with
the other hand, and pull the power supply slowly along the guide rails out of the slot.
Put away the removed power supply in an antistatic bag for future use.
Connecting the power cord
Table 4 Power cord connection procedures at a glance
Power supply Connection procedure reference
PSR150-A (JD362A) Connecting the PSR150-A
PSR150-D (JD366A) Connecting the PSR150-D
Connecting the PSR150-A
To connect the PSR150-A:
1. Wear an ESD-preventive wrist strap and make sure it makes good skin contact and is well
grounded.
2. Connect one end of the AC power cord supplied with the power supply to the power receptacle on
the power supply (see Figure 19).
3. Connect the other end of the AC power cord to an AC power outlet.

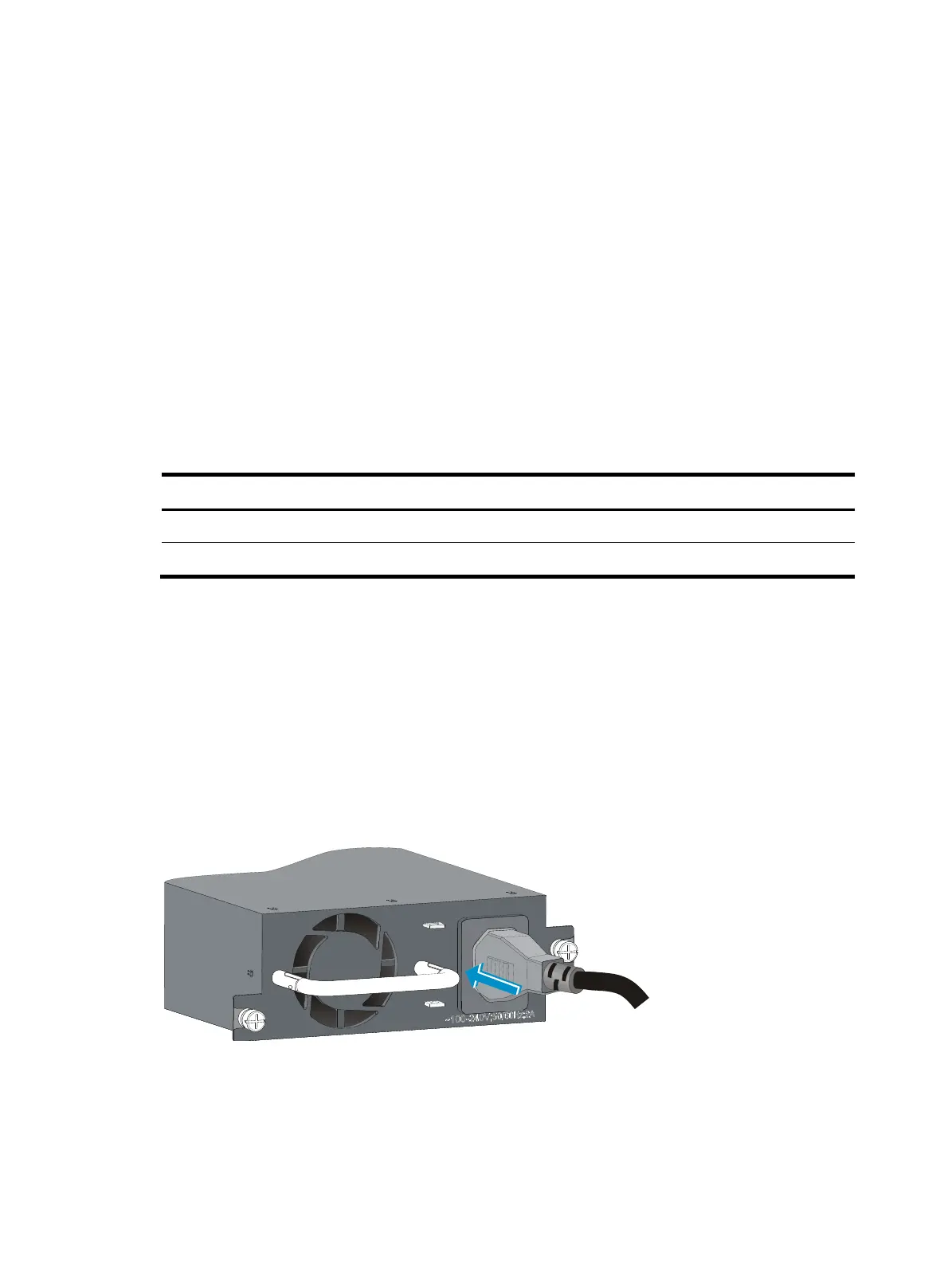

Figure 19 Connecting the PSR150-A
Connecting the PSR150-D
To connect the PSR150-D:
