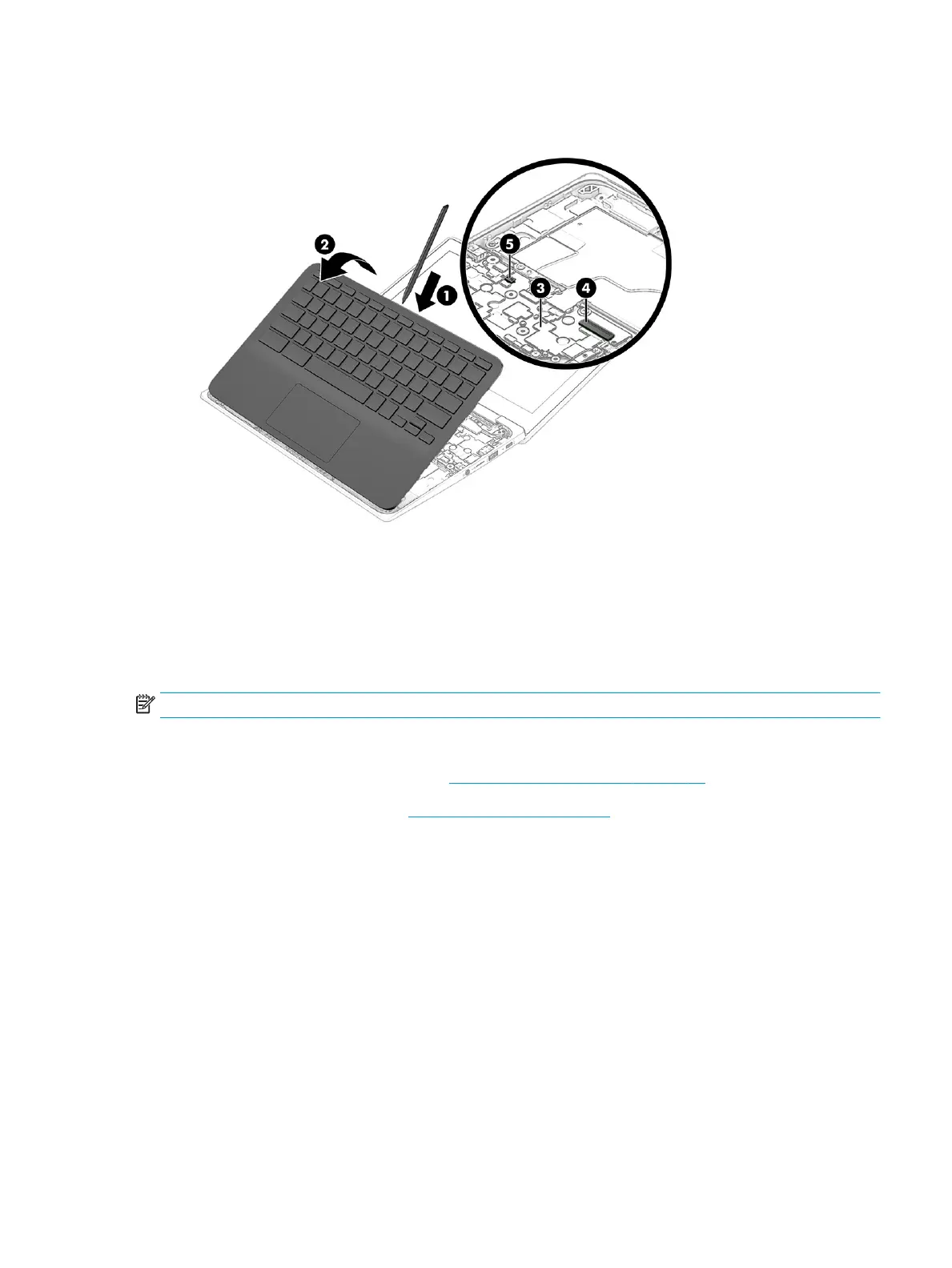

9. Release the ZIF connector (5) to which the touchpad cable is connected, and then disconnect the touchpad
cable from the system board.
10. Remove the top cover/keyboard.
Reverse this procedure to install the top cover/keyboard.
Touchpad cable
To remove the touchpad cable, use this procedure and illustration.
NOTE: The touchpad cable is included in the Cable Kit, spare part number M44247-001.
Before removing the touchpad cable, follow these steps:
1. Prepare the computer for disassembly (Preparation for disassembly on page 28).
2. Remove the top cover/keyboard (Top cover/keyboard on page 28).
Remove the touchpad cable:
1. Remove the retention pad (1) that secures the touchpad cable to the computer.
2. Detach the clear shield (2) that covers the touchpad cable ZIF connector on the system board.
3. Release the ZIF connector (3) to which the touchpad cable is connected, and then disconnect the touchpad
cable from the touchpad.
ENWW Component replacement procedures 31
