Service Reference Guide, dc5700 437804-001 6–7
Removal and Replacement Procedures— Microtower (MT) Chassis
6.5 Front Drive Bezels
Follow these steps before removing or installing a front drive bezel.
1. Prepare the computer for disassembly (Section 6.1).
2. Remove the access panel (Section 6.3).
3. Remove the front bezel (Section 6.4).

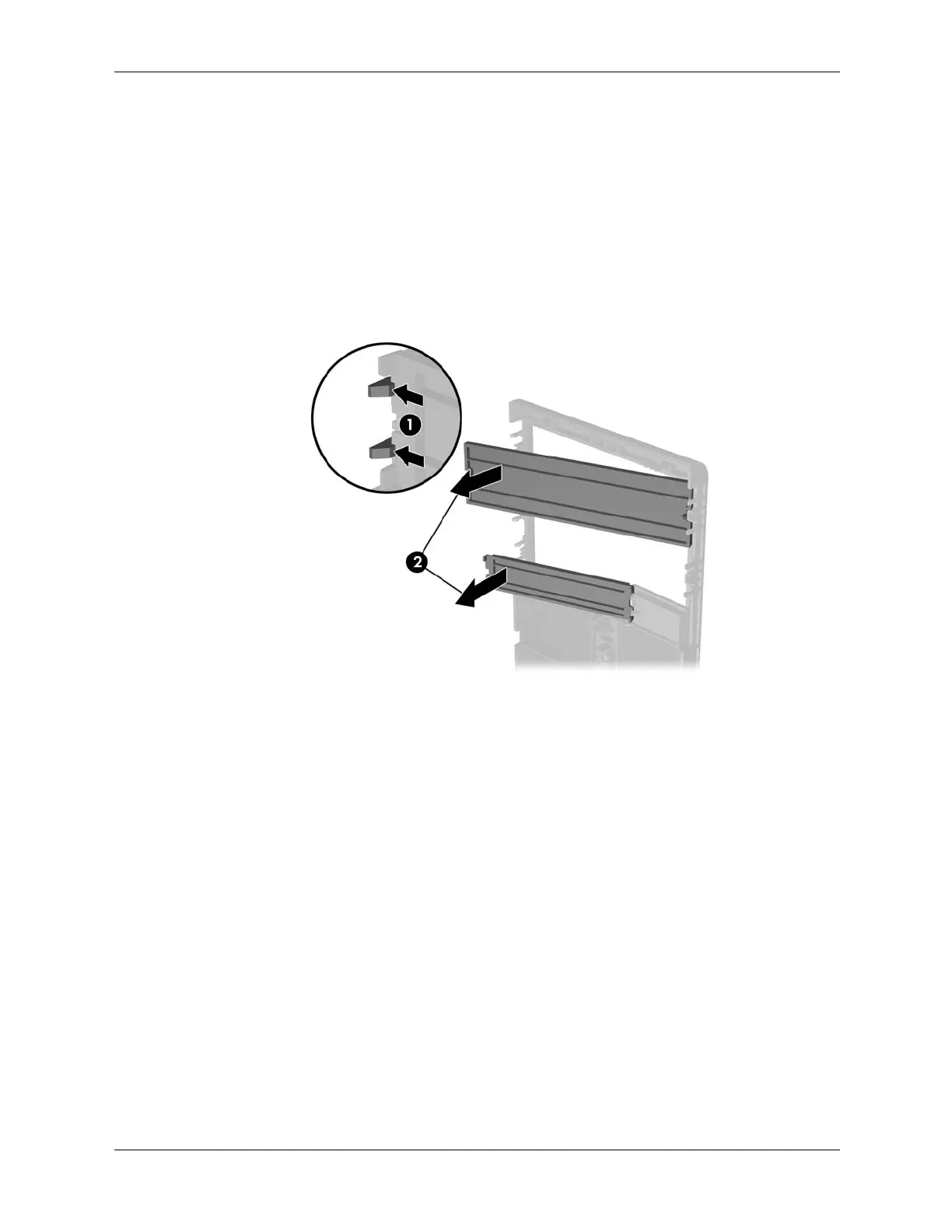

4. Press the two retaining tabs on the inside of the bezel towards the outer edge of the bezel 1
and pull the bezel blank inwards to remove it 2.
To install a bezel blank, reverse the removal procedure.
