6–26 437804-001 Service Reference Guide, dc5700
Removal and Replacement Procedures— Microtower (MT) Chassis
6.11 Front Shroud
1. Prepare the computer for disassembly (Section 6.1).
2. Remove the access panel and rotate the computer so the system board is parallel to the table
to make it easier to work on (Section 6.3).
3. Remove the hard drive cables from the plastic shroud at the front of the chassis and from the
hard drives.

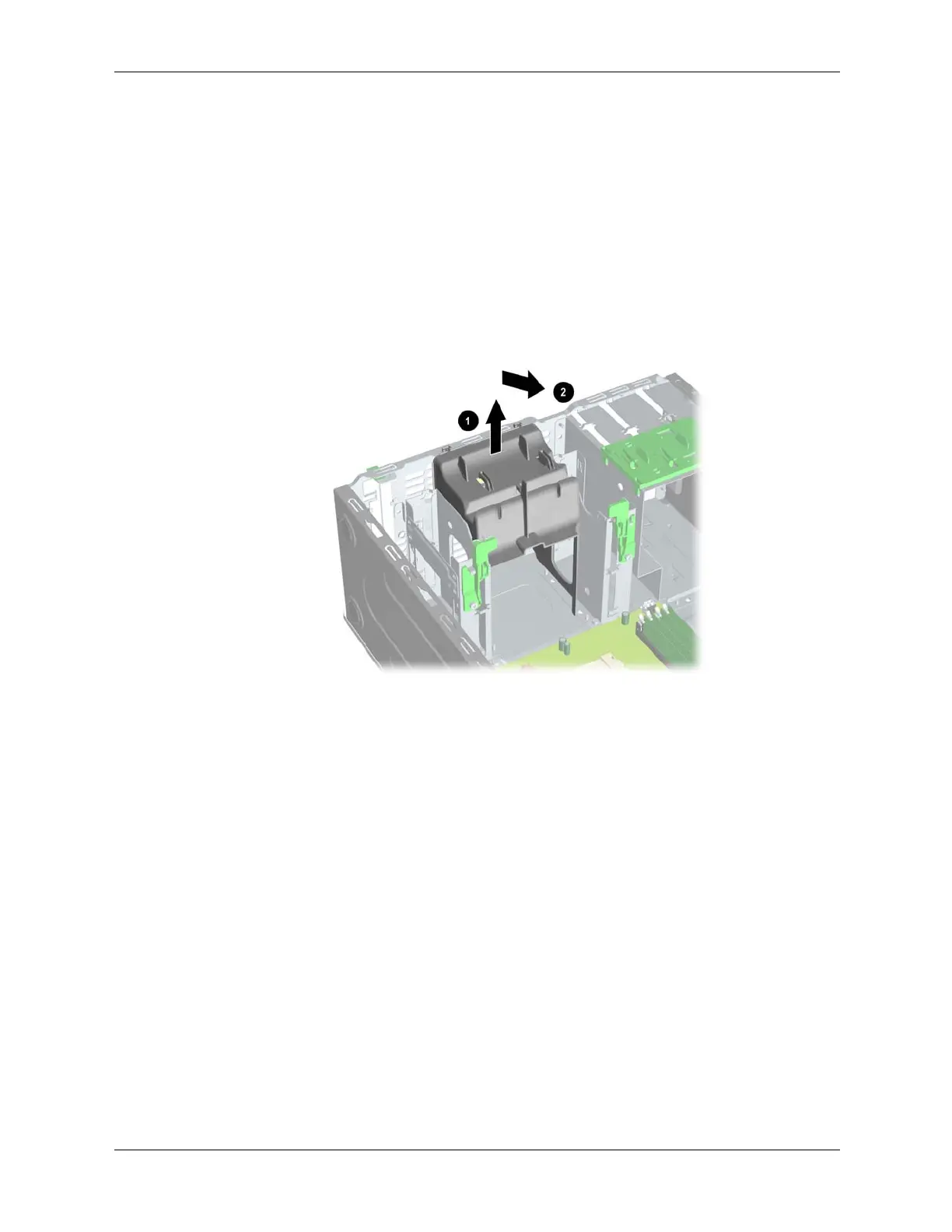

4. Lift the shroud straight up 1 about 5-mm (3/16-in) before pulling it into the chassis 2 to
remove it.
To install the shroud, reverse the removal process.
