Service Reference Guide, dc5750 437963-001 6–33
Removal and Replacement Procedures— Microtower (MT) Chassis
6.17 System Board
1. Prepare the computer for disassembly (Section 6.1).
2. Remove the access panel and rotate the computer so the system board is parallel to the table
to make it easier to work on (Section 6.3).
3. Remove all PCI expansion cards (Section 6.8).
4. Disconnect all cables connected to the system board, noting their location for reinstallation.

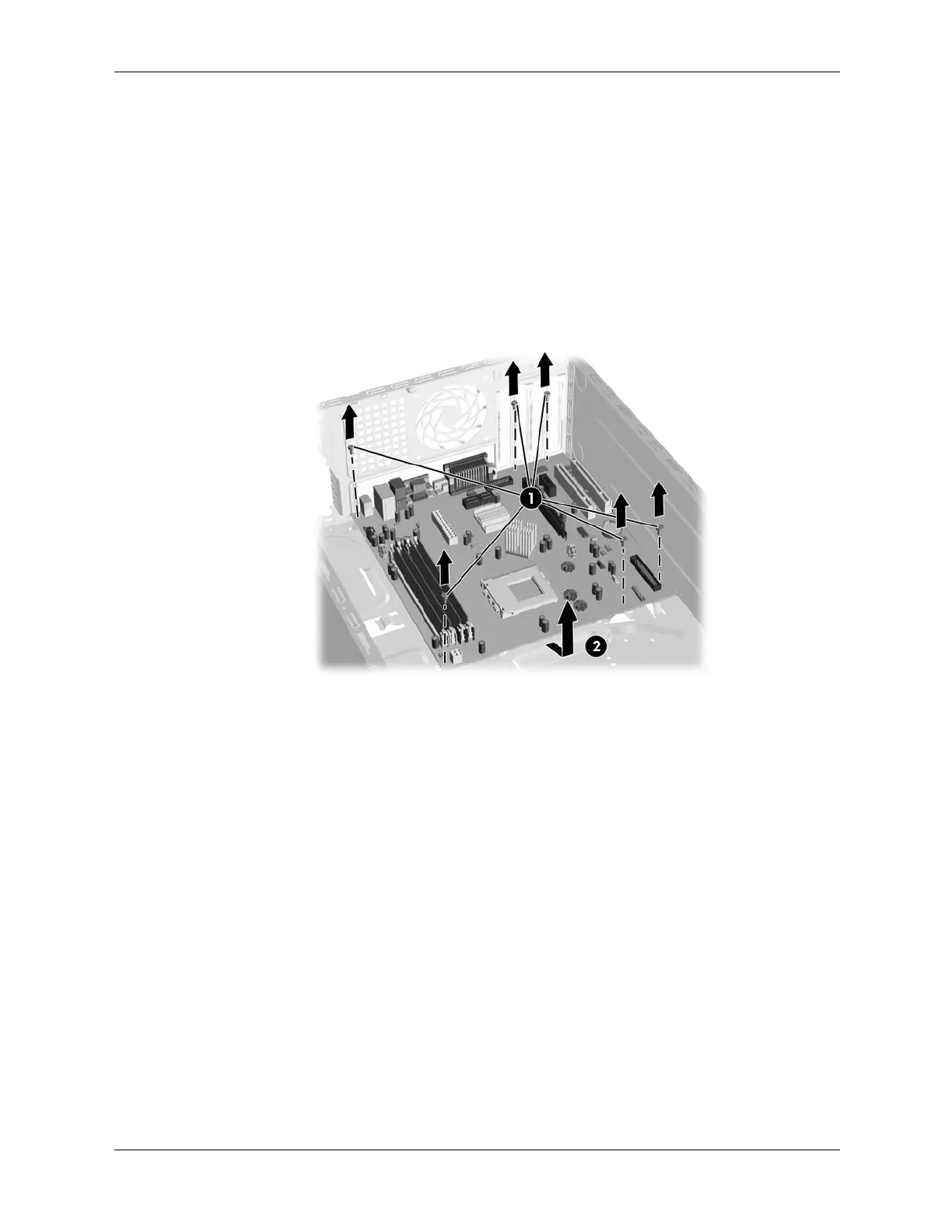

5. Remove the six screws that secure the system board to the chassis 1, then slide the system
board towards the front of the chassis to remove it 2.
To install the system board, reverse the removal procedures.
