HP COMPAQ DC5750 User Manual

Service Reference Guide, dc5750 437963-001 7–25
Removal and Replacement Procedures— Small Form Factor (SFF) Chassis
7.14 Power Swit c h Assemb ly
1. Prepare the computer for disassembly (Section 7.1).
2. Remove the access panel (Section 7.3).
3. Remove the fan shroud (Section 7.11).
4. Remove the optical drive (Section 7.7.2).

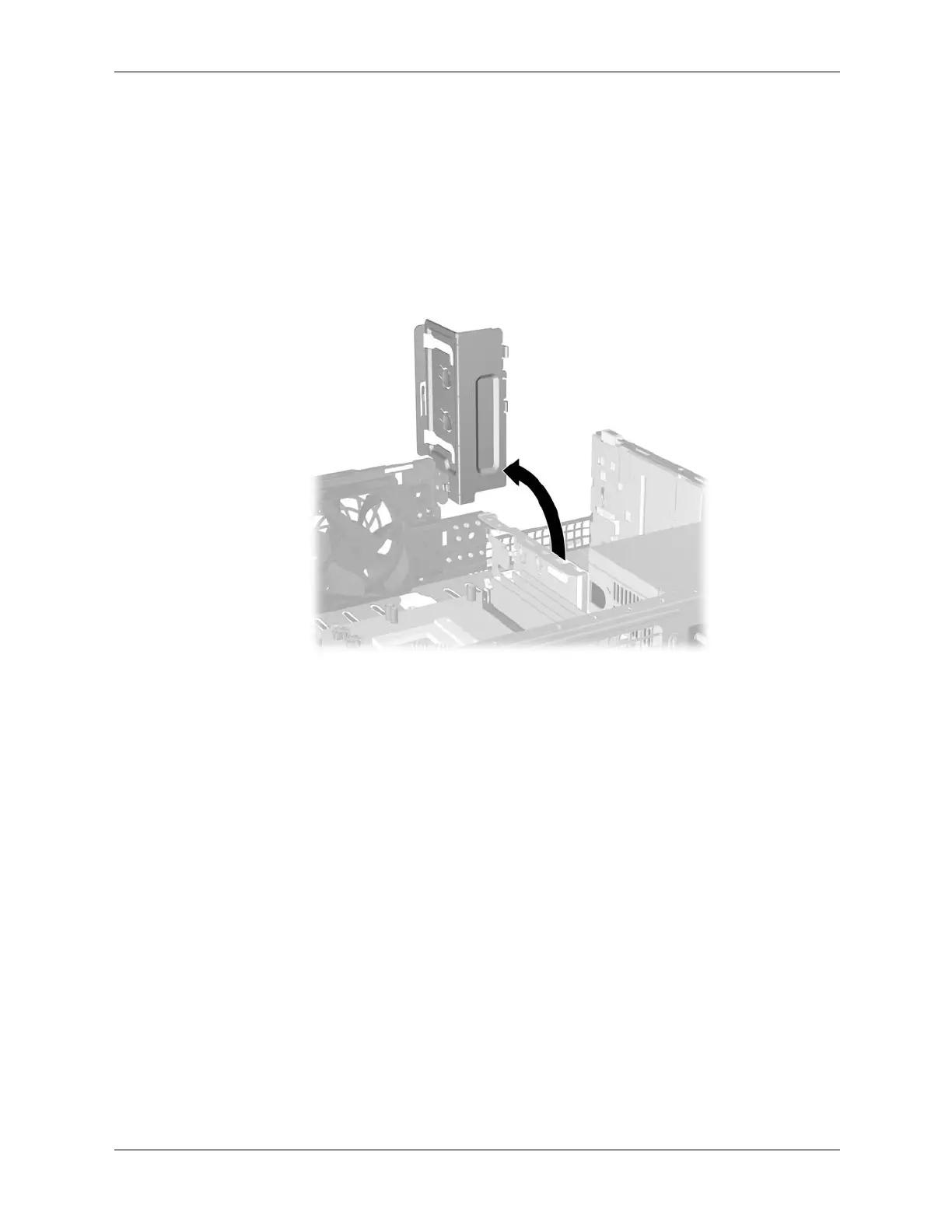

5. Rotate the optical drive retainer to its upright position.
6. Disconnect the power switch/LED cable from the system board.

HP COMPAQ DC5750 Specifications

General

Brand	HP
Model	COMPAQ DC5750
Category	Desktop
Language	English
