5. If using a new heatsink, remove the protective covering from the bottom of the heatsink and place
it in position atop the processor.
6. Secure the heatsink to the system board and system board tray with the 4 captive screws and
attach the heatsink control cable to the system board.
CAUTION: Heatsink retaining screws should be tightened in diagonally opposite pairs (as in an
X) to evenly seat the heatsink on the processor. This is especially important as the pins on the
socket are very fragile and any damage to them may require replacing the system board.
NOTE: After installing a new processor onto the system board, always update the system ROM to
ensure that the latest version of the BIOS is being used on the computer. The latest system BIOS can
be found on the Web at:
http://h18000.www1.hp.com/support/files.
Speaker
1. Prepare the computer for disassembly (Preparation for Disassembly on page 60).
2. Remove the computer access panel (
Computer Access Panel on page 64).
3. Disconnect the speaker wire from the system board, and remove the wire from the clip on top of
the fan shroud.

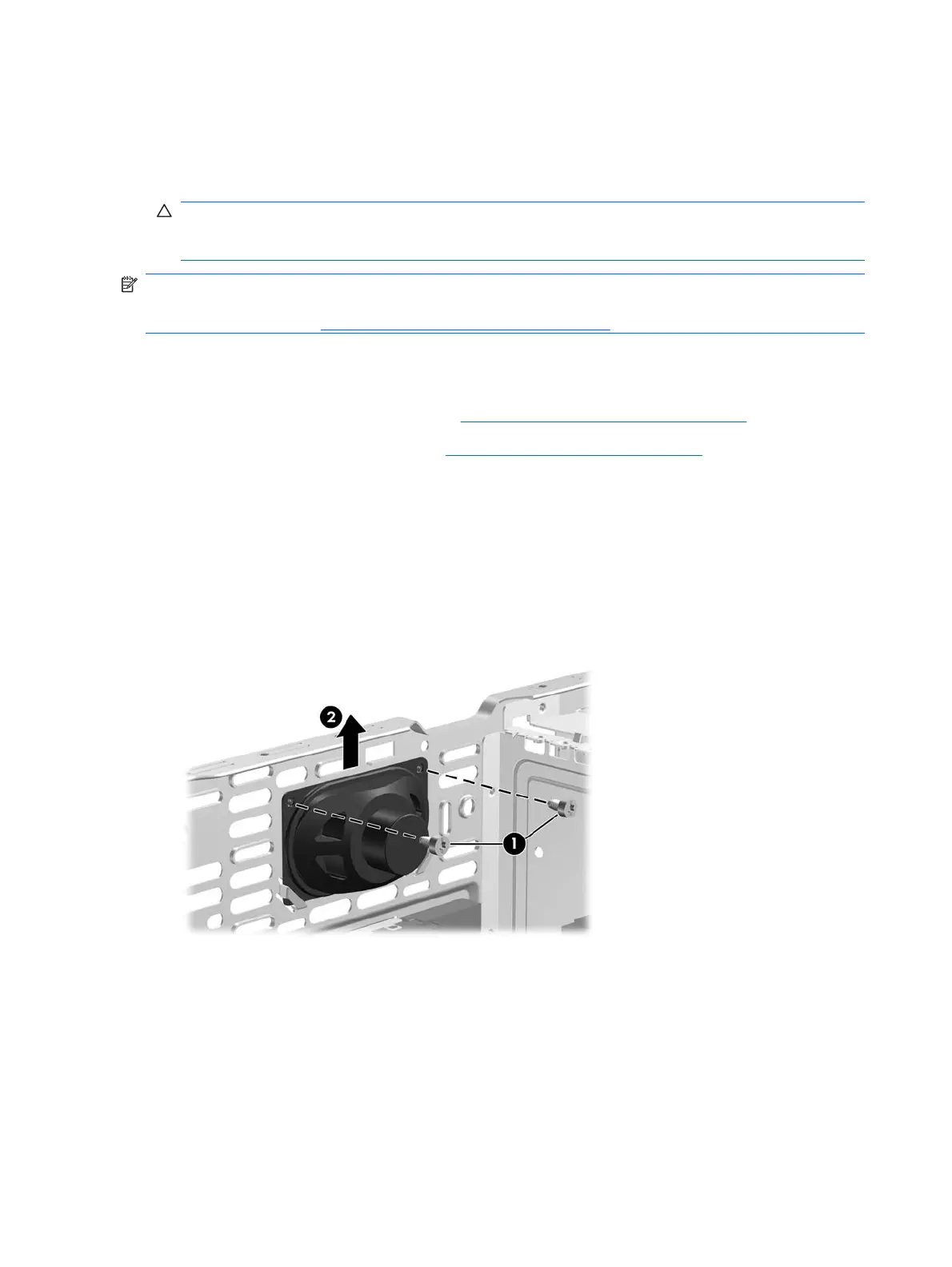

4. Remove the two screws (1) that secure the speaker to the chassis.
5. Slide the speaker up and lift it out of the chassis (2).
To install the speaker, reverse the removal procedures.
94 Chapter 7 Removal and Replacement Procedures Convertible Minitower (CMT) Chassis

HP Compaq dc7800 Specifications

General

Tcase	73.3 °C
Bus type	FSB
Stepping	M0
Processor cache	2 MB
Processor cores	2
Processor model	E4600
System bus rate	- GT/s
Processor family	Intel® Core™2 Duo
Processor series	Intel Core 2 Duo E4000 Series
Processor socket	LGA 775 (Socket T)
Processor codename	Conroe
Processing Die size	111 mm²
Processor frequency	2.4 GHz
Processor cache type	L2
Processor lithography	65 nm
Processor manufacturer	Intel
Processor front side bus	800 MHz
Processor operating modes	64-bit
ECC supported by processor	No
Thermal Design Power (TDP)	65 W
CPU multiplier (bus/core ratio)	12
Number of Processing Die Transistors	167 M
Internal memory	1 GB
Internal memory type	DDR2-SDRAM
Maximum internal memory	8 GB
Memory layout (slots x size)	2 x 0.5 GB
HDD speed	7200 RPM
HDD interface	SATA
Optical drive type	DVD Super Multi
Total storage capacity	160 GB
Audio input	1
LightScribe	Yes
Networking features	Intel 82566DM Gigabit Network Connection
Graphics card RAMDAC	400 MHz
Storage drive controller	SATA 3, 0 Gb/s NCQ SMART VI
Discrete graphics card model	Intel® GMA 3100
Maximum graphics card memory	0.256 GB
Operating system installed	Windows Vista Business
USB 2.0 ports quantity	8
Chassis type	Mini Tower
Country of origin	China
Cable lock slot type	Kensington
Operating altitude	0 - 3048 m
Non-operating altitude	0 - 9144 m
Storage temperature (T-T)	-30 - 60 °C
Operating temperature (T-T)	10 - 35 °C
Storage relative humidity (H-H)	5 - 95 %
Operating relative humidity (H-H)	10 - 90 %
Power supply	365 W
Product type	PC
Processor code	SLA94
Processor ARK ID	32242
Processor package size	37.5 x 37.5 mm

Weight and Dimensions

Depth	452 mm
Width	177 mm
Height	447 mm
Weight	11800 g
