Expansion Cards

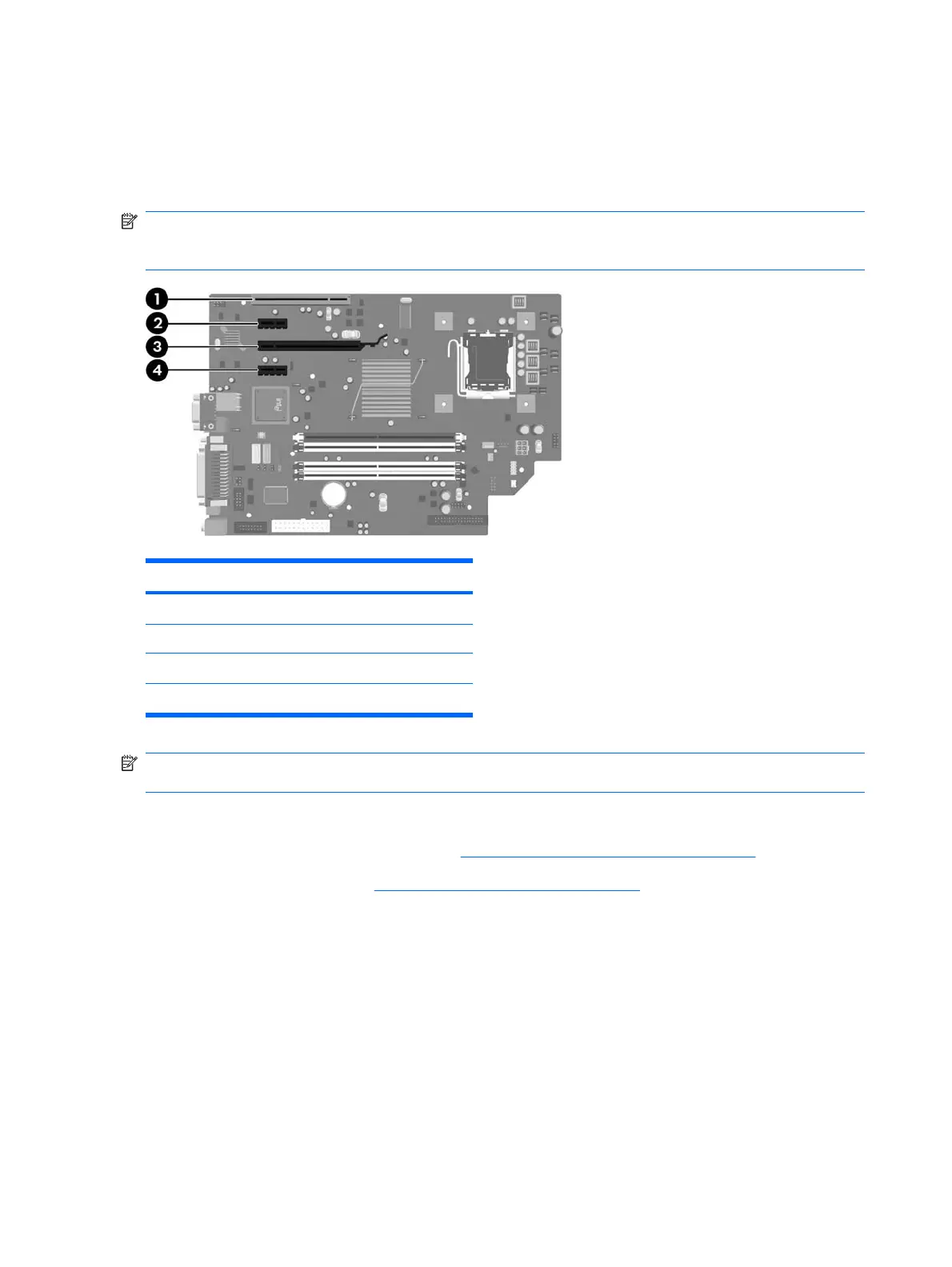

The computer has one standard low-profile PCI expansion slot that can accommodate an expansion
card up to 17.46 cm (6.875 inches) in length. The computer also has two PCI Express x1 expansion
slots and one PCI Express x16 expansion slot.
NOTE: The PCI and PCI Express slots support only low profile cards. An optional riser is available
from HP that will support two full-height PCI cards. If the riser is installed, the PCI Express expansion
slots are inaccessible.
Item Description
1 PCI expansion slot
2 PCI Express x1 expansion slot
3 PCI Express x16 expansion slot
4 PCI Express x1 expansion slot
NOTE: You can install a PCI Express x1, x4, x8, or x16 expansion card in the PCI Express x16
expansion slot.
To install an expansion card:
1. Prepare the computer for disassembly (
Preparation for Disassembly on page 107).
2. Remove the access panel (
Computer Access Panel on page 113).
3. Locate the correct vacant expansion socket on the system board and the corresponding expansion
slot on the back of the computer chassis.
120 Chapter 8 Removal and Replacement Procedures Small Form Factor (SFF) Chassis

HP Compaq dc7800 Specifications

General

Tcase	73.3 °C
Bus type	FSB
Stepping	M0
Processor cache	2 MB
Processor cores	2
Processor model	E4600
System bus rate	- GT/s
Processor family	Intel® Core™2 Duo
Processor series	Intel Core 2 Duo E4000 Series
Processor socket	LGA 775 (Socket T)
Processor codename	Conroe
Processing Die size	111 mm²
Processor frequency	2.4 GHz
Processor cache type	L2
Processor lithography	65 nm
Processor manufacturer	Intel
Processor front side bus	800 MHz
Processor operating modes	64-bit
ECC supported by processor	No
Thermal Design Power (TDP)	65 W
CPU multiplier (bus/core ratio)	12
Number of Processing Die Transistors	167 M
Internal memory	1 GB
Internal memory type	DDR2-SDRAM
Maximum internal memory	8 GB
Memory layout (slots x size)	2 x 0.5 GB
HDD speed	7200 RPM
HDD interface	SATA
Optical drive type	DVD Super Multi
Total storage capacity	160 GB
Audio input	1
LightScribe	Yes
Networking features	Intel 82566DM Gigabit Network Connection
Graphics card RAMDAC	400 MHz
Storage drive controller	SATA 3, 0 Gb/s NCQ SMART VI
Discrete graphics card model	Intel® GMA 3100
Maximum graphics card memory	0.256 GB
Operating system installed	Windows Vista Business
USB 2.0 ports quantity	8
Chassis type	Mini Tower
Country of origin	China
Cable lock slot type	Kensington
Operating altitude	0 - 3048 m
Non-operating altitude	0 - 9144 m
Storage temperature (T-T)	-30 - 60 °C
Operating temperature (T-T)	10 - 35 °C
Storage relative humidity (H-H)	5 - 95 %
Operating relative humidity (H-H)	10 - 90 %
Power supply	365 W
Product type	PC
Processor code	SLA94
Processor ARK ID	32242
Processor package size	37.5 x 37.5 mm

Weight and Dimensions

Depth	452 mm
Width	177 mm
Height	447 mm
Weight	11800 g
