HP Compaq dc7800 User Manual

Cable Management
Always follow good cable management practices when working inside the computer.
●
Keep cables away from major heat sources like the heatsink.
●
Do not jam cables on top of expansion cards or memory modules. Printed circuit cards like these
are not designed to take excessive pressure on them.
●
Keep cables clear of sliding or moveable parts to prevent their being cut or crimped when the parts
are moved.
●
Do not bend any cable sharply. A sharp bend can break the internal wires.
●
Never bend a SATA data cable tighter than a 30 mm (1.18 in) radius.
●
Never crease a SATA data cable.
●
Do not rely on components like the drive cage, power supply, or computer cover to push cables
down into the chassis. Always position the cables to lay properly by themselves.

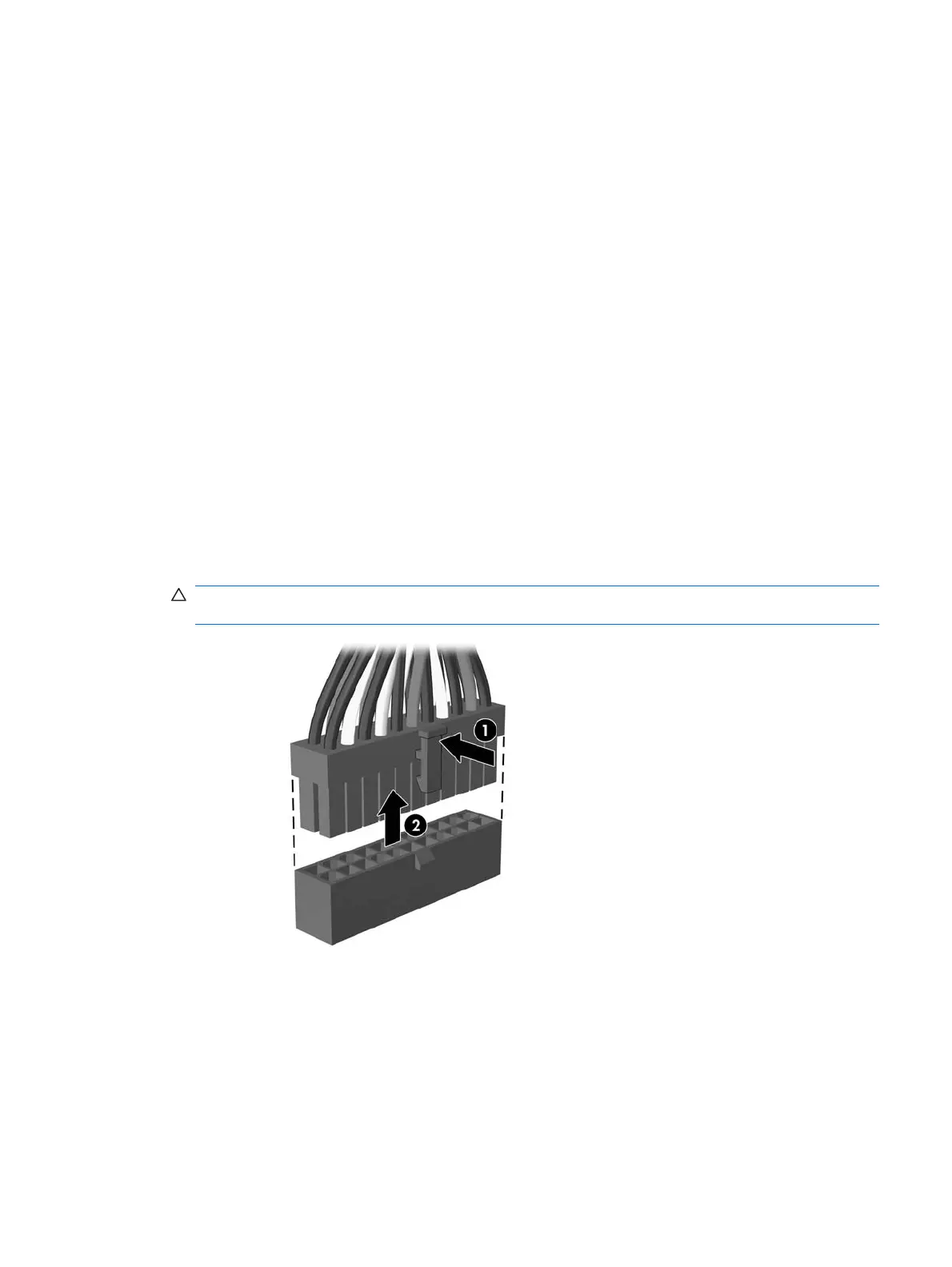

When removing the power supply power cables from the P1 or P3 connectors on the system board,
always follow these steps:
1. Squeeze on the top of the retaining latch attached to the cable end of the connector (1).
2. Grasp the cable end of the connector and pull it straight up (2).
CAUTION: Always pull the connector - NEVER pull on the cable. Pulling on the cable could
damage the cable and result in a failed power supply.
Cable Management 169

HP Compaq dc7800 Specifications

General

Tcase	73.3 °C
Bus type	FSB
Stepping	M0
Processor cache	2 MB
Processor cores	2
Processor model	E4600
System bus rate	- GT/s
Processor family	Intel® Core™2 Duo
Processor series	Intel Core 2 Duo E4000 Series
Processor socket	LGA 775 (Socket T)
Processor codename	Conroe
Processing Die size	111 mm²
Processor frequency	2.4 GHz
Processor cache type	L2
Processor lithography	65 nm
Processor manufacturer	Intel
Processor front side bus	800 MHz
Processor operating modes	64-bit
ECC supported by processor	No
Thermal Design Power (TDP)	65 W
CPU multiplier (bus/core ratio)	12
Number of Processing Die Transistors	167 M
Internal memory	1 GB
Internal memory type	DDR2-SDRAM
Maximum internal memory	8 GB
Memory layout (slots x size)	2 x 0.5 GB
HDD speed	7200 RPM
HDD interface	SATA
Optical drive type	DVD Super Multi
Total storage capacity	160 GB
Audio input	1
LightScribe	Yes
Networking features	Intel 82566DM Gigabit Network Connection
Graphics card RAMDAC	400 MHz
Storage drive controller	SATA 3, 0 Gb/s NCQ SMART VI
Discrete graphics card model	Intel® GMA 3100
Maximum graphics card memory	0.256 GB
Operating system installed	Windows Vista Business
USB 2.0 ports quantity	8
Chassis type	Mini Tower
Country of origin	China
Cable lock slot type	Kensington
Operating altitude	0 - 3048 m
Non-operating altitude	0 - 9144 m
Storage temperature (T-T)	-30 - 60 °C
Operating temperature (T-T)	10 - 35 °C
Storage relative humidity (H-H)	5 - 95 %
Operating relative humidity (H-H)	10 - 90 %
Power supply	365 W
Product type	PC
Processor code	SLA94
Processor ARK ID	32242
Processor package size	37.5 x 37.5 mm

Weight and Dimensions

Depth	452 mm
Width	177 mm
Height	447 mm
Weight	11800 g
