No. System Board Connector System Board Label Color
5 SATA3 SATA3 orange
6 Diskette Drive FLOPPY black
To verify the type, size, and capacity of the storage devices installed in the computer, run Computer
Setup. Refer to
Computer Setup (F10) Utility on page 3 for more information.

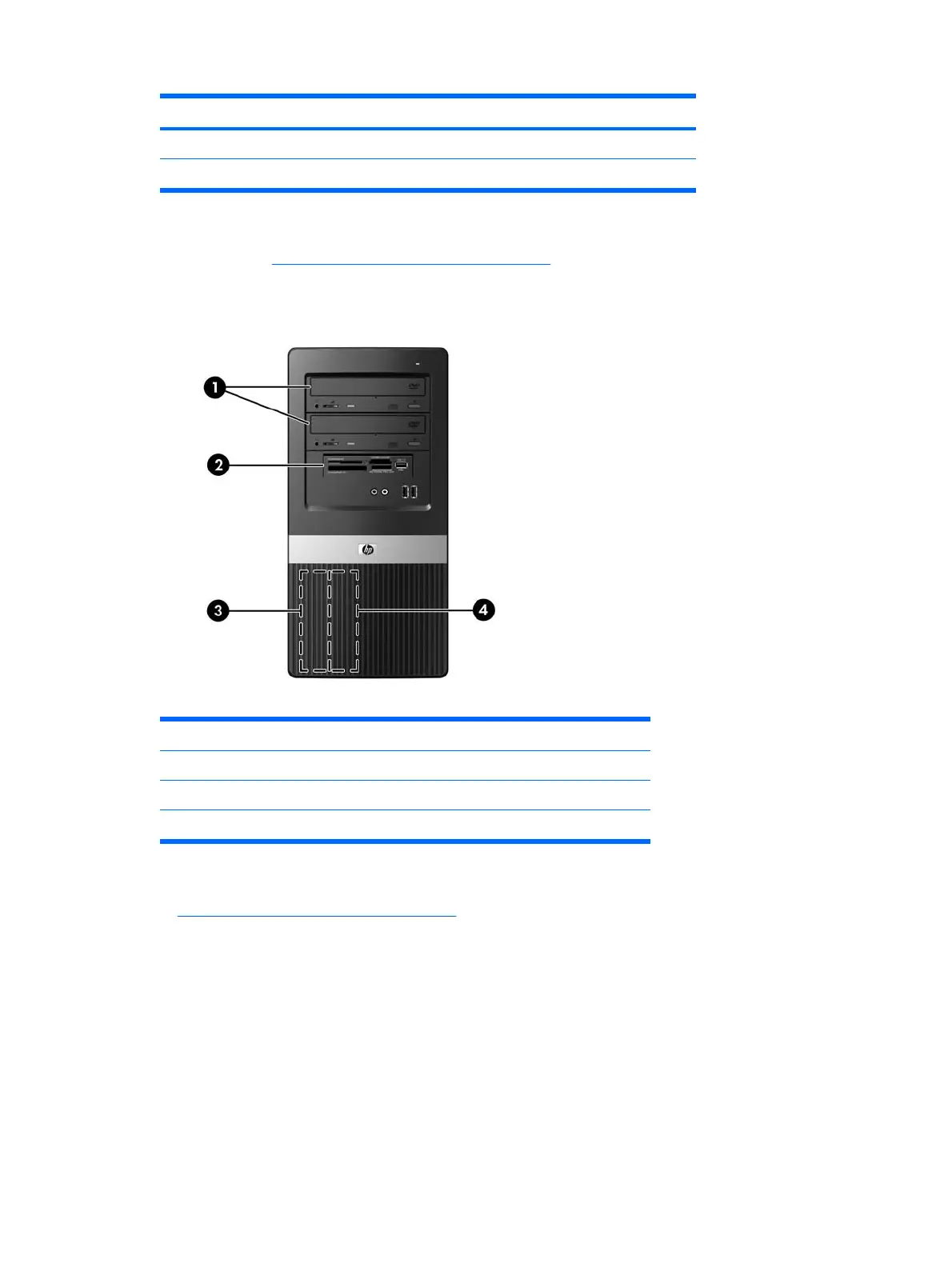

Drive Positions
1 Two 5.25-inch external drive bays for optional drives (optical drives shown)
2 One 3.5-inch external drive bay for optional drive (media card reader shown)
3 Primary 3.5-inch internal hard drive bay
4 Secondary 3.5-inch internal hard drive bay for optional hard drive
To verify the type and size of the storage devices installed in the computer, run Computer Setup. Refer
to
Computer Setup (F10) Utility on page 3 for more information.
Table 6-2 System Board Drive Connections (continued)
Drives 45
