7–38 433611-001 Service Reference Guide, dx7300
Removal and Replacement Procedures— Slim Tower (ST) Chassis
7.16 S pea ker
1. Prepare the computer for disassembly (Section 7.1).
2. Remove the computer cover (Section 7.5).
3. Remove the fan shroud (Section 7.12).
4. Remove any memory modules that might interfere with the screwdriver used for removing
the speaker.
5. Disconnect the speaker wire from the system board.

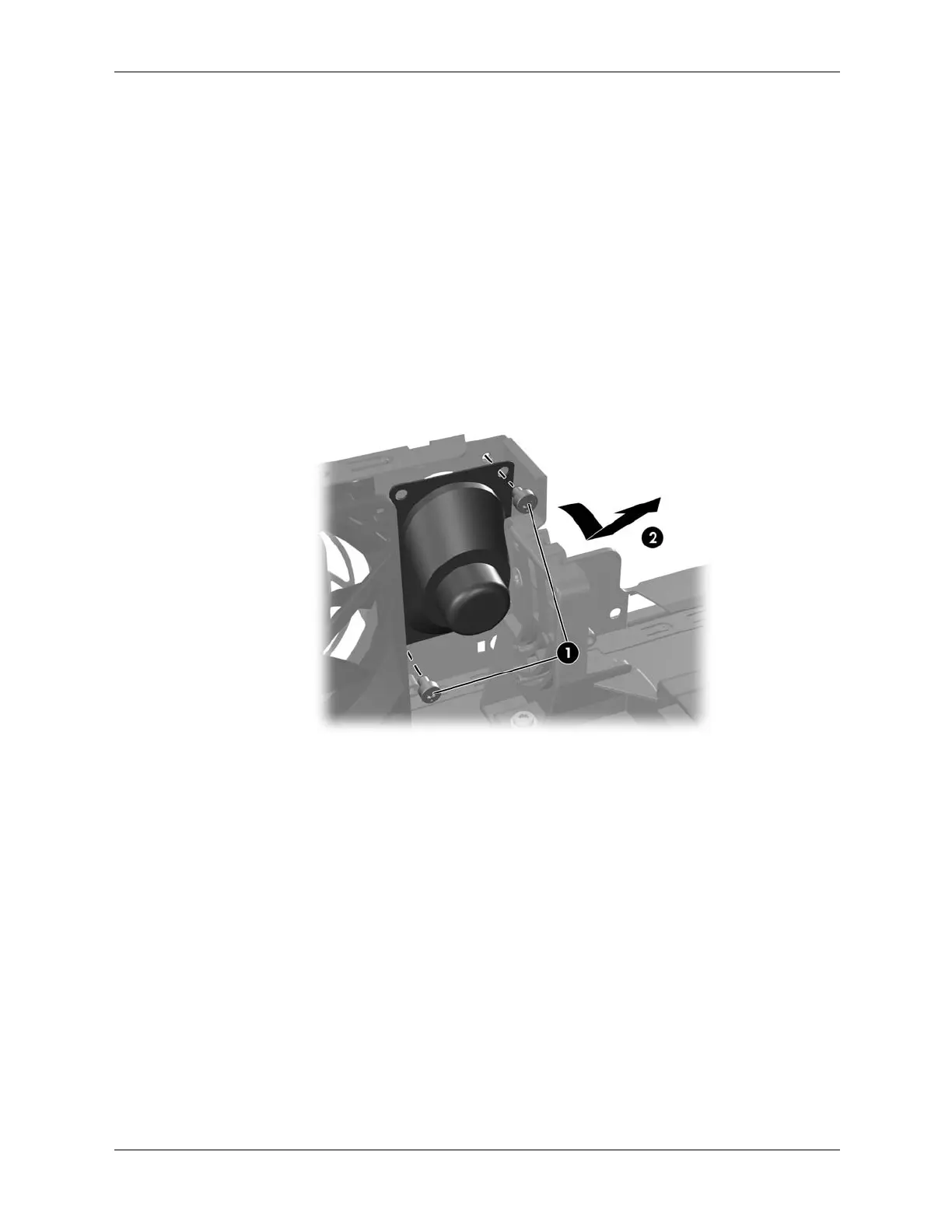

6. Remove the two screws that secure the speaker to the chassis 1 .
7. Rotate the top of the speaker back to clear the lip on the top of the chassis, then lift the
speaker up and out of the chassis 2 .
To install the speaker, reverse the removal procedures.
