Service Reference Guide, dx7300 433611-001 6–9
Removal and Replacement Procedures— Microtower (MT) Chassis
6.6 Cable Management
Always follow good cable management practices when working inside the computer.
■ Keep cables away from major heat sources like the heatsink.
■ Do not jam cables on top of expansion cards or memory modules. Printed circuit cards like
these are not designed to take excessive pressure on them.
■ Keep cables clear of sliding or moveable parts to prevent them from being cut or crimped
when the parts are moved.
■ When folding a flat ribbon cable, never fold to a sharp crease. Sharp creases may damage the
wires.
■ Some flat ribbon cables come prefolded. Never change the folds on these cables.
■ Do not bend any cable sharply. A sharp bend can break the internal wires.
■ Never bend a SATA data cable tighter than a 30 mm (1.18 in) radius.
■ Never crease a SATA data cable.
■ Do not rely on components like the drive cage, power supply, or computer cover to push
cables down into the chassis. Always position the cables to lay properly by themselves.

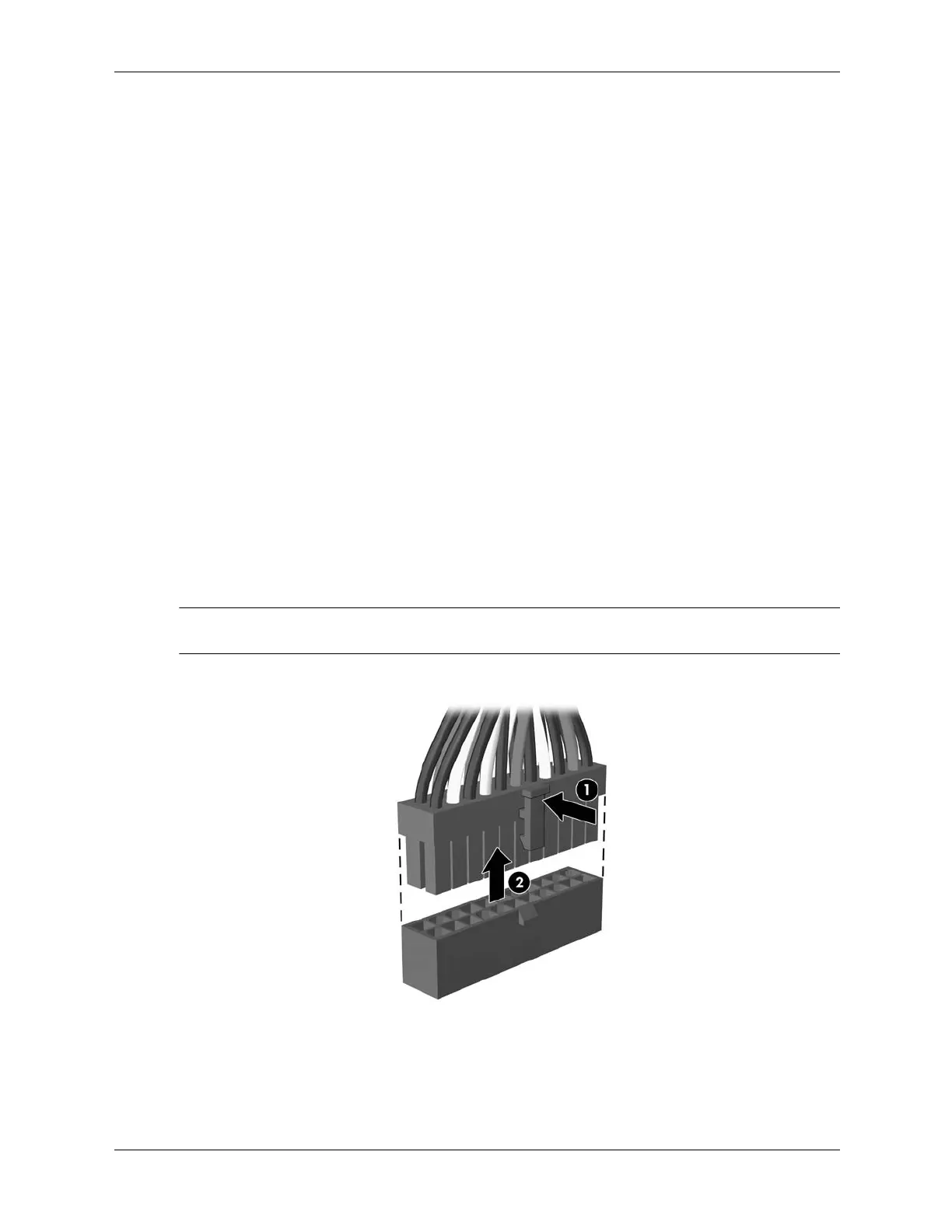

When removing the power supply power cables from the P1 or P3 connectors on the system
board, always follow these steps:
1. Squeeze on the top of the retaining latch attached to the cable end of the connector 1.
2. Grasp the cable end of the connector and pull it straight up 2.
Ä
CAUTION: Always pull the connector - NEVER pull on the cable. Pulling on the cable could damage the
cable and result in a failed power supply.
