Service Reference Guide, dx7300 433611-001 6–27
Removal and Replacement Procedures— Microtower (MT) Chassis
6.14 Heatsink
1. Prepare the computer for disassembly (Section 6.1).
2. Remove the access panel and rotate the computer so the system board is parallel to the table
to make it easier to work on (Section 6.3).
3. Disconnect the heatsink fan cable from the system board.
4. Disconnect the four-pin power cable from the system board to make it easier to access the
heatsink.
5. Loosen the four captive screws 1 that secure the heatsink to the system board tray.
Ä
CAUTION: Heatsink retaining screws should be removed in diagonally opposite pairs (as in an X) to
even the downward forces on the processor. This is especially important as the pins on the socket are very
fragile and any damage to them may require replacing the system board.

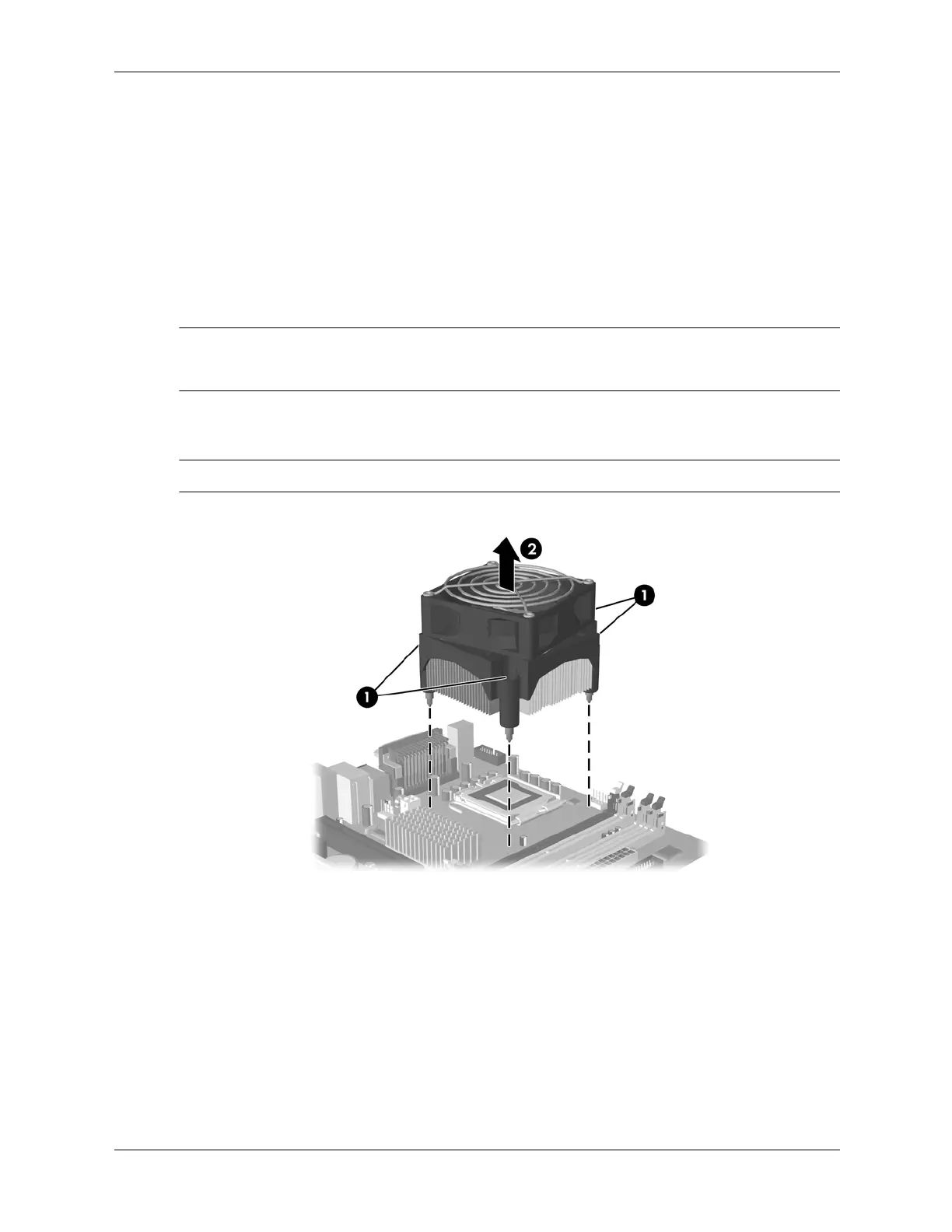

6. Lift the heatsink from atop the processor 2 and set it on its side to keep from contaminating
the work area with thermal grease.
✎
There are two different heatsinks used on the Microtower chassis and are illustrated here.
