Service Reference Guide, dx7300 433611-001 6–7
Removal and Replacement Procedures— Microtower (MT) Chassis
6.5 Front Drive Bezels
Follow these steps before removing or installing a front drive bezel.
1. Prepare the computer for disassembly (Section 6.1).
2. Remove the access panel (Section 6.3).
3. Remove the front bezel (Section 6.4).
6.5.1 5.25" Drive Bezel Blank

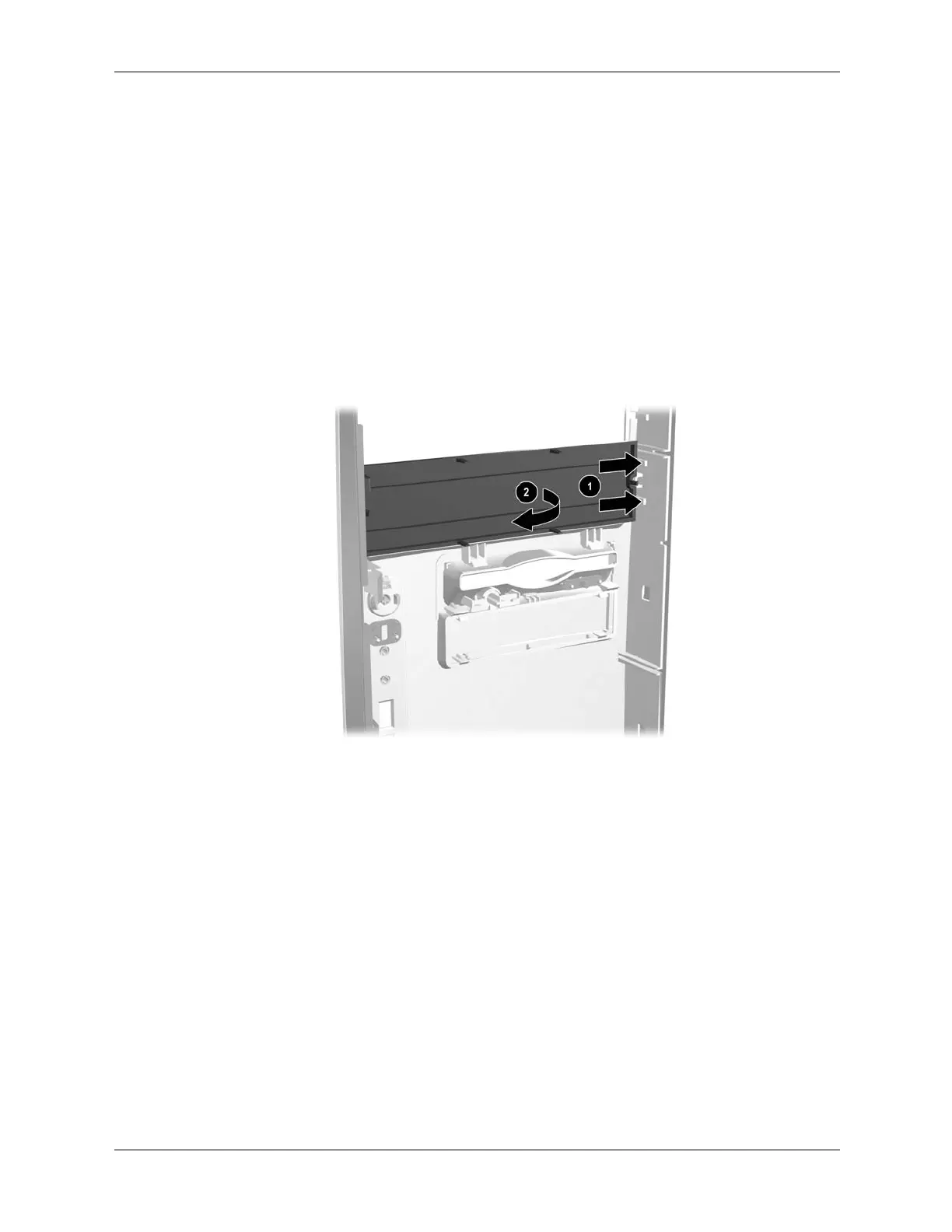

Press the two retaining tabs on the inside of the large bezel towards the outside of the bezel to
release the bezel blank 1. At the same time, pull the bezel blank in to remove it from the front
bezel 2.
To install a bezel blank, reverse the removal procedure.
