Connecting the Power Cord
When connecting the power supply, it is important to follow the steps below to ensure the power cord
does not pull free from the computer.
1. Connect the round end of the power cord to the power supply connector on the rear of the
computer (1).
2. Insert the power cord retainer clip into a slot on the air vent to prevent the cord from becoming
disconnected from the computer (2).
3. Bundle any excess power cord with the supplied strap (3).
4. Plug the female end of the other power cord into the power supply brick (4).
5. Connect the other end of the power cord to an electrical outlet (5).

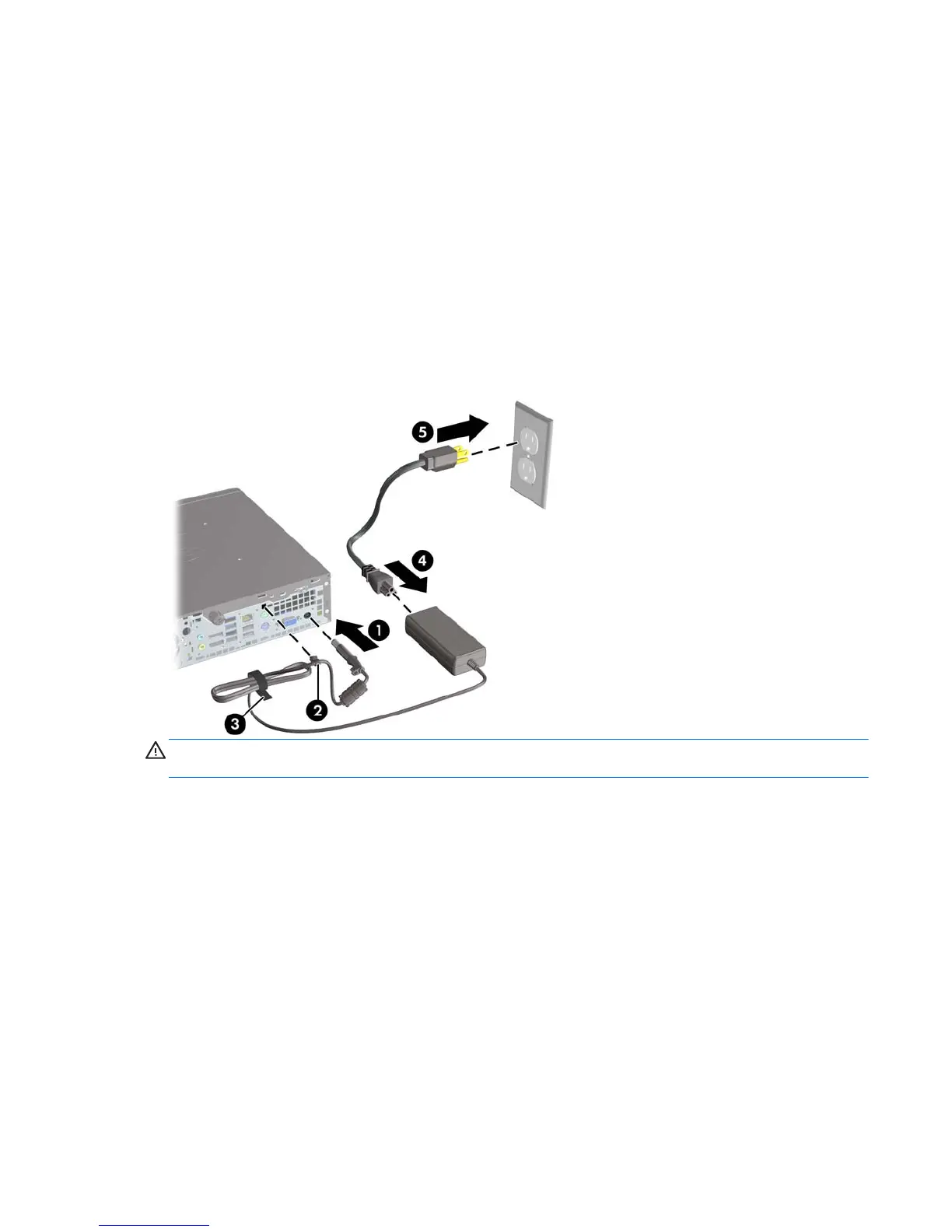

Figure 5-1 Connecting the Power Cord
CAUTION: Failure to secure the power cable with the retainer clip may result in the power cord
becoming disconnected and loss of data.
Connecting the Power Cord 129
