8. Slide the drive into the drive bay, making sure to align the guide screws with the guide slots, until
the drive snaps into place.

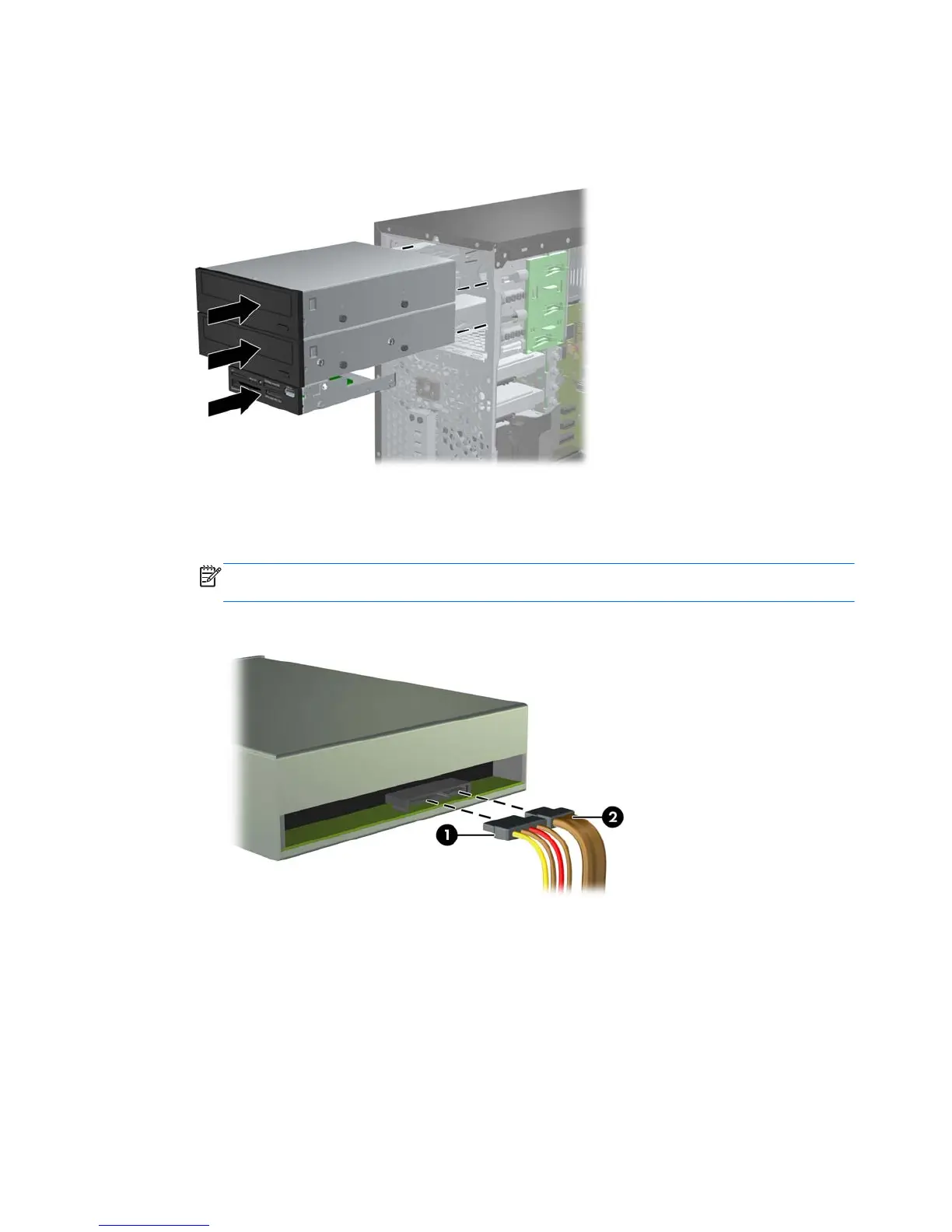

Figure 3-21 Sliding the Drives into the Drive Cage
9. Connect the power and data cables to the drive as indicated in the following illustrations.
a. If you are installing an optical drive, connect the power cable (1) and data cable (2) to the
back of the drive.
NOTE: The power cable for the optical drives is a two-headed cable that is routed from
the system board to the rear of the optical drive bays.
Figure 3-22 Connecting the Optical Drive Cables
76 Chapter 3 Microtower (MT) Hardware Upgrades
