• The CPU is Intel Xeon W5680 (Kit part number 601315-B21 includes Heatsink) – there are
two per system.
• The HP D2D has 12 removable hard disks. The 12th disk is an online spare disk. If one of
the other disks fails, the online spare disk immediately takes its place.
• The system comes with four RAID controller cards — the HP Smart Array P410i (integrated
into the Motherboard and with FBWC) and three HP Smart Array P812 cards (each with
1024MB cache module and FBWC). The P812 cards are installed in PCI-e Slots 4, 5 and 6.
Part numbers for the P812 card are as follows:
◦ HP Smart Array P812/1024 MB with FBWC Controller: 487204-B21
◦ FBWC: 534562-B21 (this comprises the 1024 cache, capacitor and cable assembly)
For more information about the HP Smart Array cards, search on http://www.hp.com/support/
manuals.
• The configuration of the system memory is 96 GB (12 x 8 GB DIMMs, 6 per processor). The
part number for each 8 GB DIMM is 500662-B21.
• The system has an HP StorageWorks 8Gb Dual Channel PCI-e to Fibre Channel Host Bus
Adapter, part number AJ764A.
• The system has an HP NC550SFP Dual Port 10GbE Server Adapter, part number 581201-B21.
• The system has an HP SAS Expander Card, part number 468406-B21, in PCI-e Slot 1.

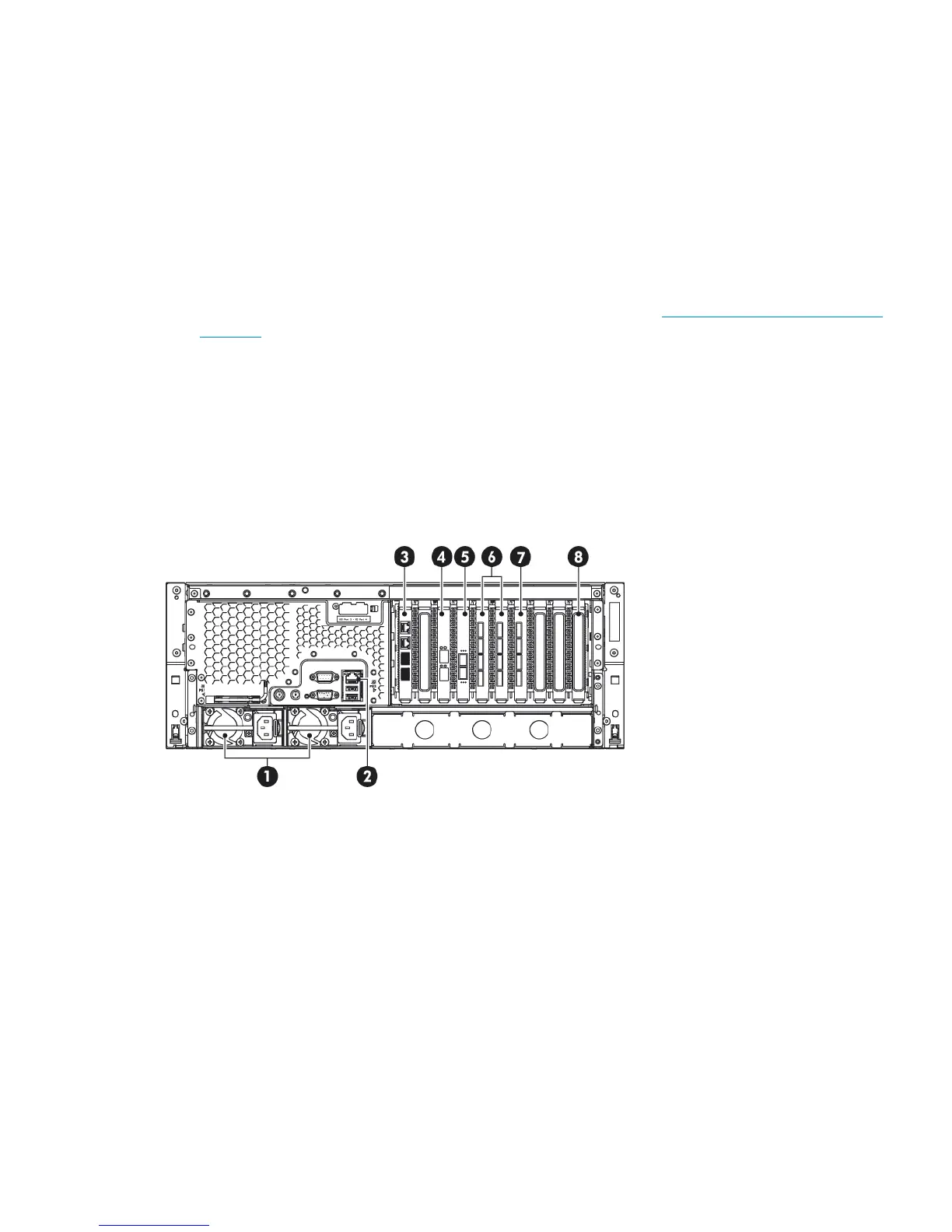

Figure 1 Rear view of the HP D2D4324
5. Fibre Channel card1. Power supplies (two)
6 and 7. RAID cards2. iLO2 Management port (do not use for data)
8. HP SAS expander card3. LAN ports 3 (required connection) and 4
4. 10–Gb Ethernet card with two ports
Using the ProLiant Guide with HP D2D4312 G2 models
When using the HP ProLiant DL370 G6 guide, be aware of the following HP D2D-specific
information:
• The CPU is Intel Xeon W5580 (Kit part number 495928-B21 includes Heatsink) – there are
two per system.
• The HP D2D has 12 removable hard disks. The 12th disk is an online spare disk. If one of
the other disks fails, the online spare disk immediately takes its place.
• The system comes with three RAID controller cards — the HP Smart Array P410i (integrated
into the Motherboard and with BBWC) and two HP Smart Array P411 cards (each with 512MB
HP D2D and HP ProLiant 7
