HP E24d G4 User Manual

19

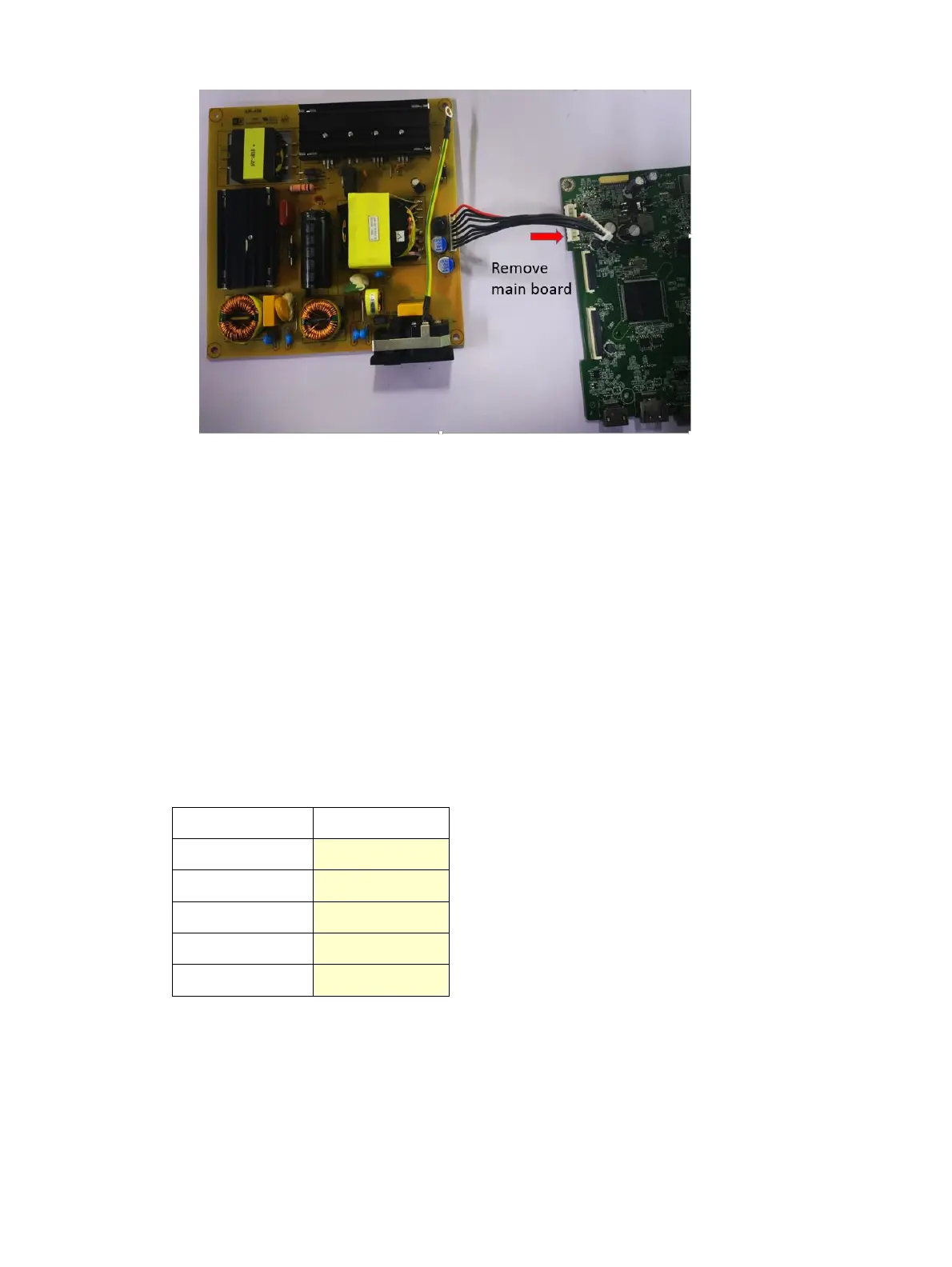

Remove the backlight cable and main board
Lift the connector up and away from the PCB.
CN701:
[image showing external connectors on the main board, such as USB, DP, etc]
CN801:
[image showing external connectors on the main board, such as USB, DP, etc]
Connector repair
This procedure includes HDMI, Display Port, headphone, USB-C, RJ45 and USB connectors.
The connectors are on the main board (board part number 790PB1300***H01), and USB side board (board part
number 790PB0300***H0*).
The connectors identifiers are as follows:
Connector
Location
HDMI Port
CN201
Display Port
CN301, CN401
USB-C
P501, P1001
RJ45
CN901
USB(RA)
P701, P702

HP E24d G4 Specifications

General

3D	No
Color gamut	72 %
Pixel pitch	0.274 x 0.274 mm
Screen shape	Flat
Display diagonal	23.8 \
Display technology	-
Native aspect ratio	16:9
Maximum refresh rate	- Hz
Contrast ratio (dynamic)	5000000:1
Contrast ratio (typical)	1000:1
Digital vertical frequency	0 - 60 Hz
Digital horizontal frequency	0 - 80 kHz
Display brightness (typical)	250 cd/m²
Supported graphics resolutions	640 x 480 (VGA), 720 x 400, 800 x 600 (SVGA), 1024 x 768 (XGA), 1280 x 1024 (SXGA), 1280 x 720 (HD 720), 1280 x 768 (WXGA), 1280 x 800 (WXGA), 1440 x 900, 1600 x 900, 1680 x 1050 (WSXGA+), 1920 x 1080 (HD 1080)
Pivot angle	-90 - 90 °
Plug and Play	Yes
Tilt angle range	-5 - 20 °
Panel mounting interface	100 x 100 mm
HDMI version	1.4
DisplayPort version	1.2
USB Power Delivery up to	100 W
VGA (D-Sub) ports quantity	0
USB Type-A downstream ports quantity	4
AC input voltage	100 - 240 V
Energy efficiency scale	A to G
Power consumption (max)	175 W
Power consumption (standby)	0.5 W
Power consumption (typical)	70 W
Operating temperature (T-T)	5 - 35 °C
Operating relative humidity (H-H)	20 - 80 %
Cables included	DisplayPort, HDMI, USB Type-C
Package depth	269 mm
Package width	646 mm
Package height	438 mm
Package weight	11000 g
HP segment	Business
Product color	Gray
Country of origin	China
Harmonized System (HS) code	85285210

Weight and Dimensions

Depth (with stand)	206.8 mm
Width (with stand)	539.4 mm
Height (with stand)	486.4 mm
Weight (with stand)	6860 g
Depth (without stand)	48.5 mm
Height (without stand)	323.3 mm
Weight (without stand)	4100 g
