HP E24d G4 User Manual

21
Remove DP connector
2) Lift the CN301/CN401 connector from the circuit board.
3) Place the new component on the circuit board. Be sure that it matches the footprint.
4) Solder the new component.
HDMI connector CN201
Repair the HDMI connector:
1) Use a hot air gun to melt the solder on the pins. Pin solder with soldering iron and absorber. You can gently
push down with the soldering iron once everything is molten to move the CN201 out of the through holes.

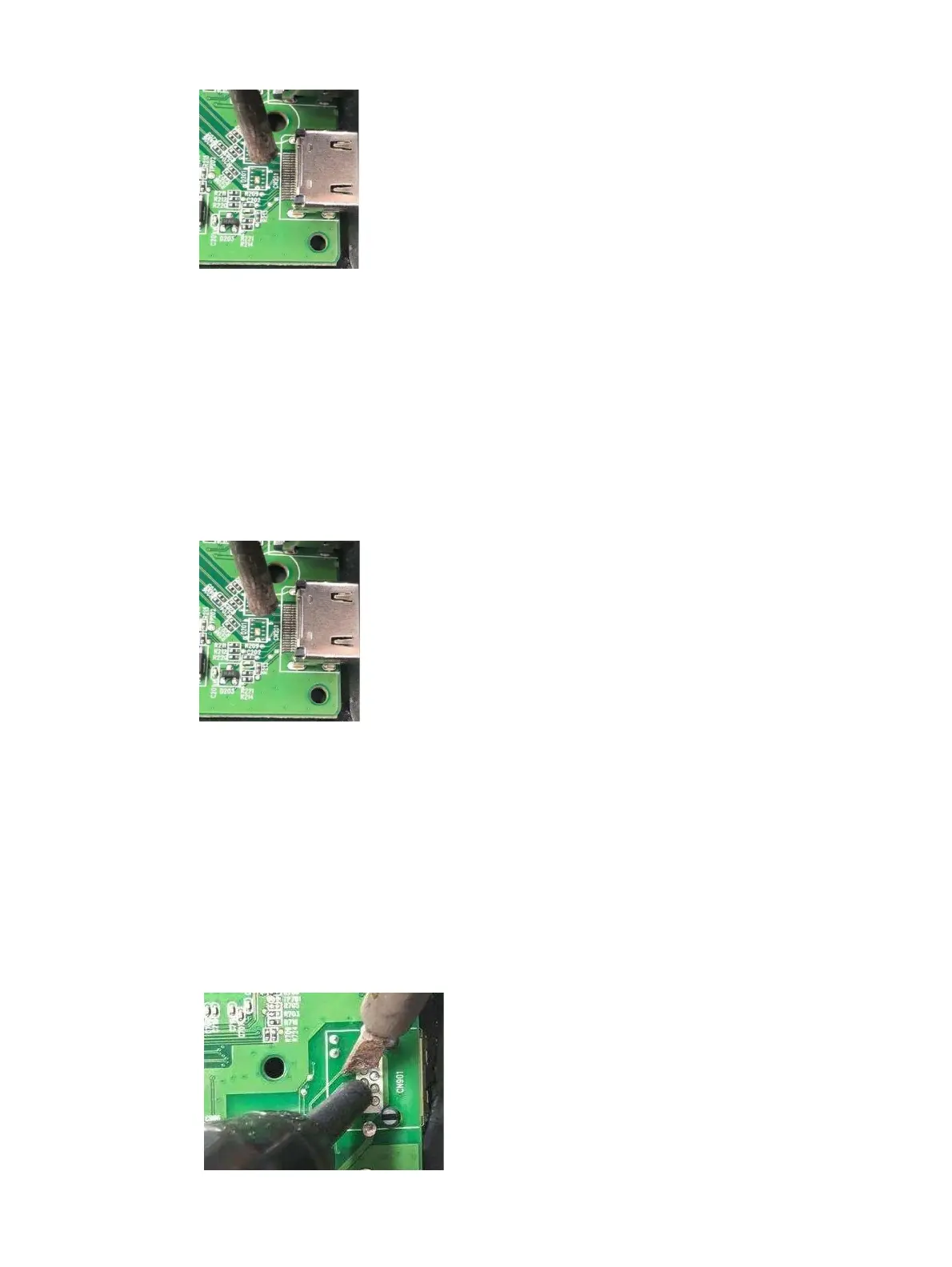

Remove HDMI connector
2) Lift the CN201 connector from the circuit board.
3) Place the new component on the circuit board. Be sure that it matches the footprint.
4) Solder the new component.
RJ45 connector CN901
Repair the RJ45 connector:
1) Use a hot air gun to melt the solder on the pins. Pin solder with soldering iron and absorber. You can gently
push down with the soldering iron once everything is molten to move the CN901 out of the through holes.

HP E24d G4 Specifications

General

3D	No
Color gamut	72 %
Pixel pitch	0.274 x 0.274 mm
Screen shape	Flat
Display diagonal	23.8 \
Display technology	-
Native aspect ratio	16:9
Maximum refresh rate	- Hz
Contrast ratio (dynamic)	5000000:1
Contrast ratio (typical)	1000:1
Digital vertical frequency	0 - 60 Hz
Digital horizontal frequency	0 - 80 kHz
Display brightness (typical)	250 cd/m²
Supported graphics resolutions	640 x 480 (VGA), 720 x 400, 800 x 600 (SVGA), 1024 x 768 (XGA), 1280 x 1024 (SXGA), 1280 x 720 (HD 720), 1280 x 768 (WXGA), 1280 x 800 (WXGA), 1440 x 900, 1600 x 900, 1680 x 1050 (WSXGA+), 1920 x 1080 (HD 1080)
Pivot angle	-90 - 90 °
Plug and Play	Yes
Tilt angle range	-5 - 20 °
Panel mounting interface	100 x 100 mm
HDMI version	1.4
DisplayPort version	1.2
USB Power Delivery up to	100 W
VGA (D-Sub) ports quantity	0
USB Type-A downstream ports quantity	4
AC input voltage	100 - 240 V
Energy efficiency scale	A to G
Power consumption (max)	175 W
Power consumption (standby)	0.5 W
Power consumption (typical)	70 W
Operating temperature (T-T)	5 - 35 °C
Operating relative humidity (H-H)	20 - 80 %
Cables included	DisplayPort, HDMI, USB Type-C
Package depth	269 mm
Package width	646 mm
Package height	438 mm
Package weight	11000 g
HP segment	Business
Product color	Gray
Country of origin	China
Harmonized System (HS) code	85285210

Weight and Dimensions

Depth (with stand)	206.8 mm
Width (with stand)	539.4 mm
Height (with stand)	486.4 mm
Weight (with stand)	6860 g
Depth (without stand)	48.5 mm
Height (without stand)	323.3 mm
Weight (without stand)	4100 g
