HP E24d G4 User Manual

22
Remove RJ45 connector
2) Lift the CN901 connector from the circuit board.
3) Place the new component on the circuit board. Be sure that it matches the footprint.
4) Solder the new component.

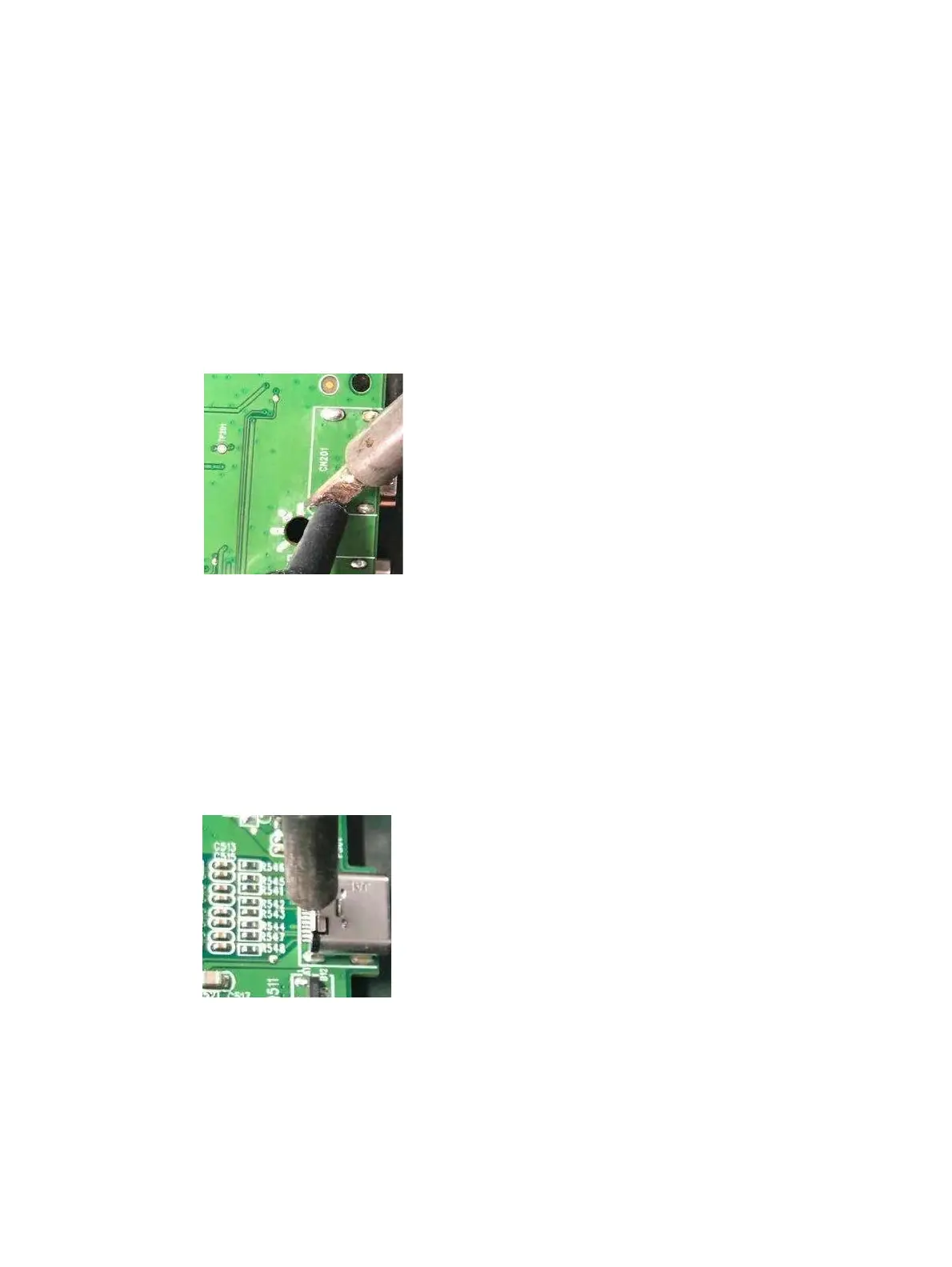

USB connector P103, P104 (VA) & P701, P702 (RA)
Repair the USB connector:
1) Use a hot air gun to melt the solder on the pins. Pin solder with soldering iron and absorber. You can gently
push down with the soldering iron once everything is molten to move the P103, P104, P701, P702 out of
the through holes.
Remove USB connector
2) Lift the P103, P104 (VA) & P701, P702 (RA) connector from the circuit board.
3) Place the new component on the circuit board. Be sure that it matches the footprint.
4) Solder the new component.
USB-C connector P501, P1001
Repair the USB-C connector:
1) Use a hot air gun to melt the solder on the pins.
Remove DP connector
2) Lift the P501, P1001 connector from the PCB.
3) Place the new component on the circuit board. Be sure that it matches the footprint.
4) Solder the new component.
Headphone connector CN102
Repair the Headphone connector:

HP E24d G4 Specifications

General

3D	No
Color gamut	72 %
Pixel pitch	0.274 x 0.274 mm
Screen shape	Flat
Display diagonal	23.8 \
Display technology	-
Native aspect ratio	16:9
Maximum refresh rate	- Hz
Contrast ratio (dynamic)	5000000:1
Contrast ratio (typical)	1000:1
Digital vertical frequency	0 - 60 Hz
Digital horizontal frequency	0 - 80 kHz
Display brightness (typical)	250 cd/m²
Supported graphics resolutions	640 x 480 (VGA), 720 x 400, 800 x 600 (SVGA), 1024 x 768 (XGA), 1280 x 1024 (SXGA), 1280 x 720 (HD 720), 1280 x 768 (WXGA), 1280 x 800 (WXGA), 1440 x 900, 1600 x 900, 1680 x 1050 (WSXGA+), 1920 x 1080 (HD 1080)
Pivot angle	-90 - 90 °
Plug and Play	Yes
Tilt angle range	-5 - 20 °
Panel mounting interface	100 x 100 mm
HDMI version	1.4
DisplayPort version	1.2
USB Power Delivery up to	100 W
VGA (D-Sub) ports quantity	0
USB Type-A downstream ports quantity	4
AC input voltage	100 - 240 V
Energy efficiency scale	A to G
Power consumption (max)	175 W
Power consumption (standby)	0.5 W
Power consumption (typical)	70 W
Operating temperature (T-T)	5 - 35 °C
Operating relative humidity (H-H)	20 - 80 %
Cables included	DisplayPort, HDMI, USB Type-C
Package depth	269 mm
Package width	646 mm
Package height	438 mm
Package weight	11000 g
HP segment	Business
Product color	Gray
Country of origin	China
Harmonized System (HS) code	85285210

Weight and Dimensions

Depth (with stand)	206.8 mm
Width (with stand)	539.4 mm
Height (with stand)	486.4 mm
Weight (with stand)	6860 g
Depth (without stand)	48.5 mm
Height (without stand)	323.3 mm
Weight (without stand)	4100 g
