Removing and inserting the secondary hard drive
Removing the secondary hard drive
1. Save your work and shut down the computer.
2. Disconnect all external devices connected to the computer.
3. Remove external power from the computer.

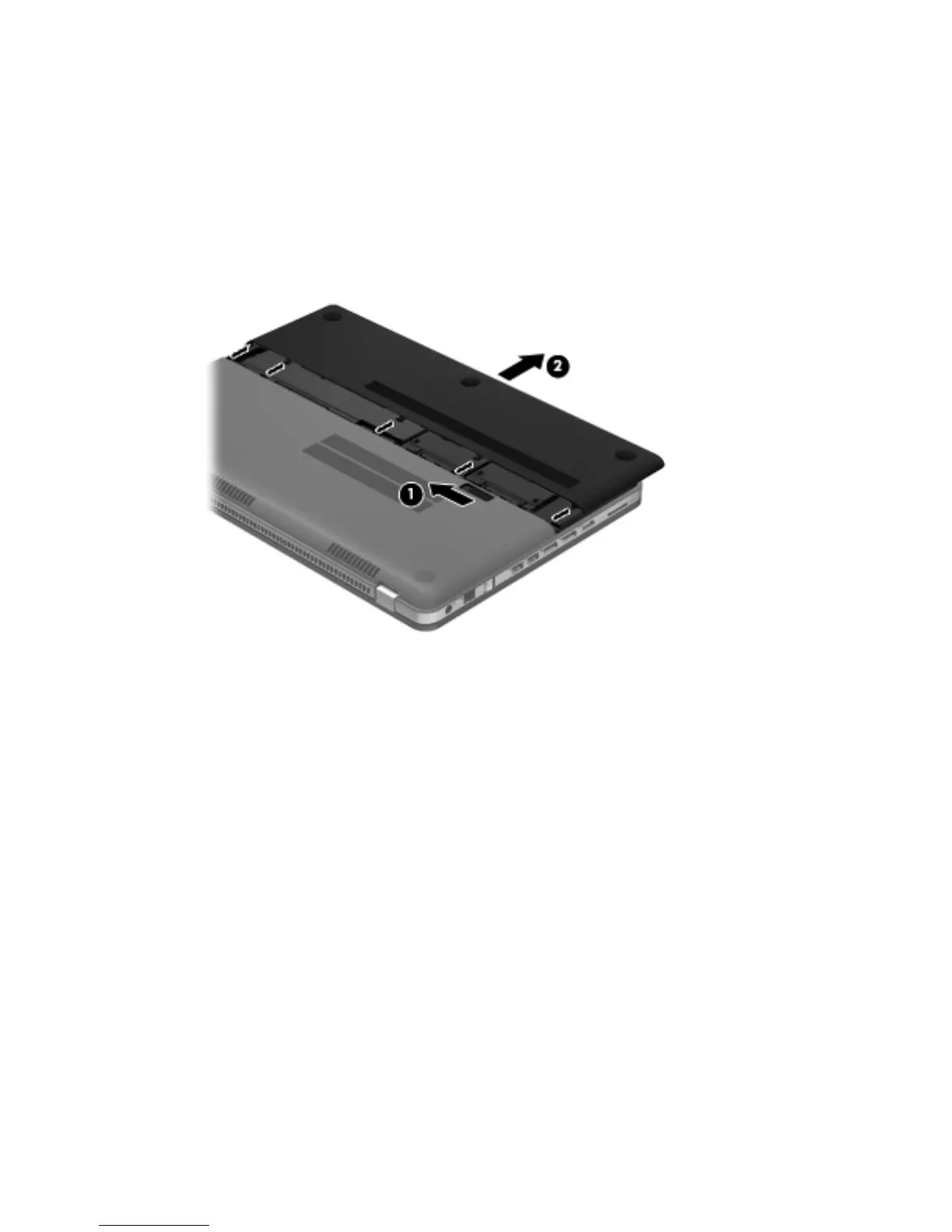

4. Slide the release latch (1), and then remove the hard drive cover (2).
5. Remove the service access door.
a. Remove the 6 service access door screws (1).
Replacing or upgrading the hard drives 39
