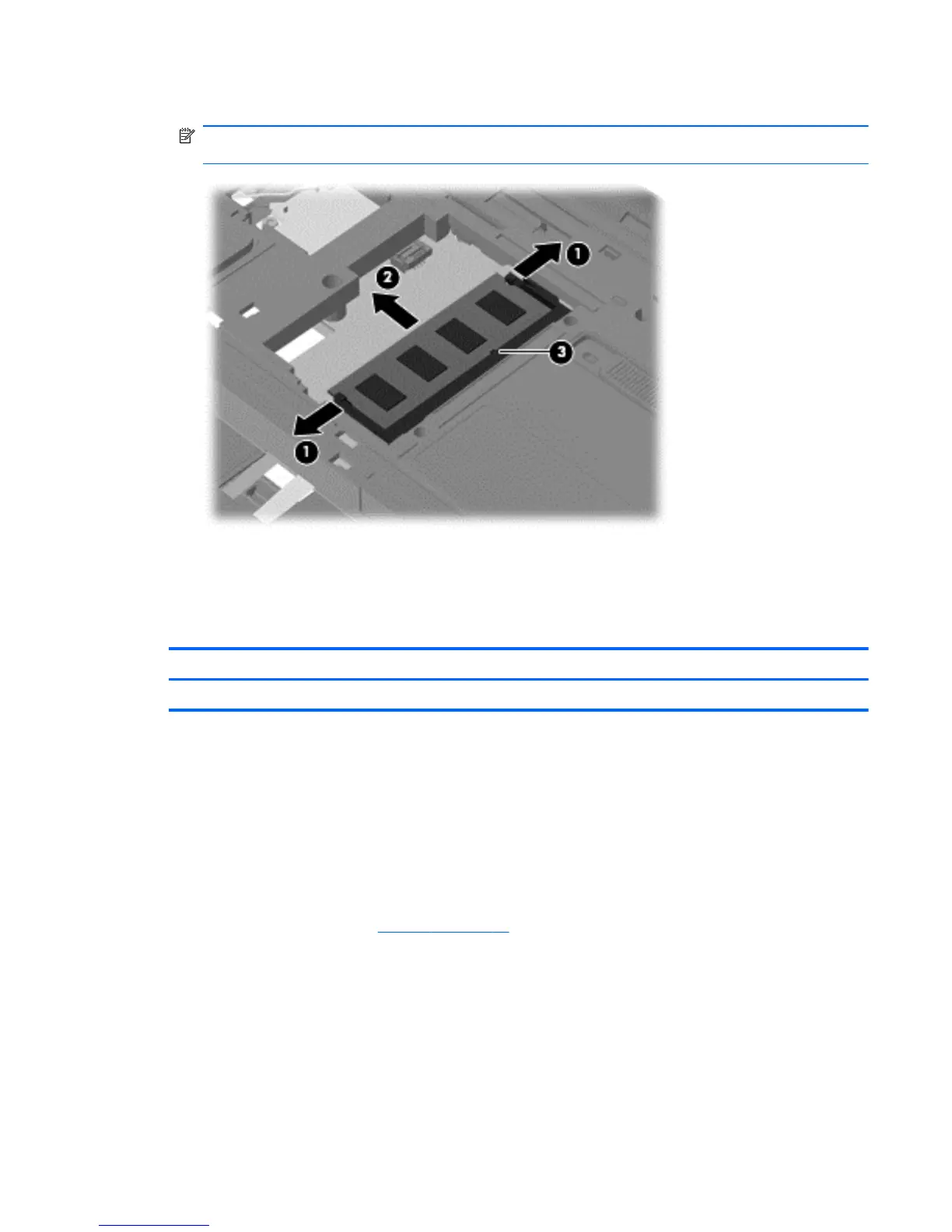

6. Remove the module (2) by pulling it away from the slot at an angle.
NOTE: Memory modules are designed with a notch (3) to prevent incorrect insertion into the
memory module slot.
Reverse this procedure to install a memory module.
RTC battery
Description Spare part number
RTC battery 606015-001
Before removing the RTC battery:
1. Shut down the computer. If you are unsure whether the computer is off or in Hibernation, turn on
the computer, and then shut it down through the operating system.
2. Disconnect all external devices connected to the computer.
3. Disconnect the power from the computer by first disconnecting the power cord from the AC
outlet and then disconnecting the AC adapter from the computer.
4. Remove the battery (see
Battery on page 41).
Remove the RTC battery:
1. Unplug the RTC battery from the system board (1).
2. Use a sharp, non-conductive, tool to release the RTC battery from the adhesive material that
secures the RTC battery to the system board..
Component replacement procedures 51
