HP L2045W User Manual

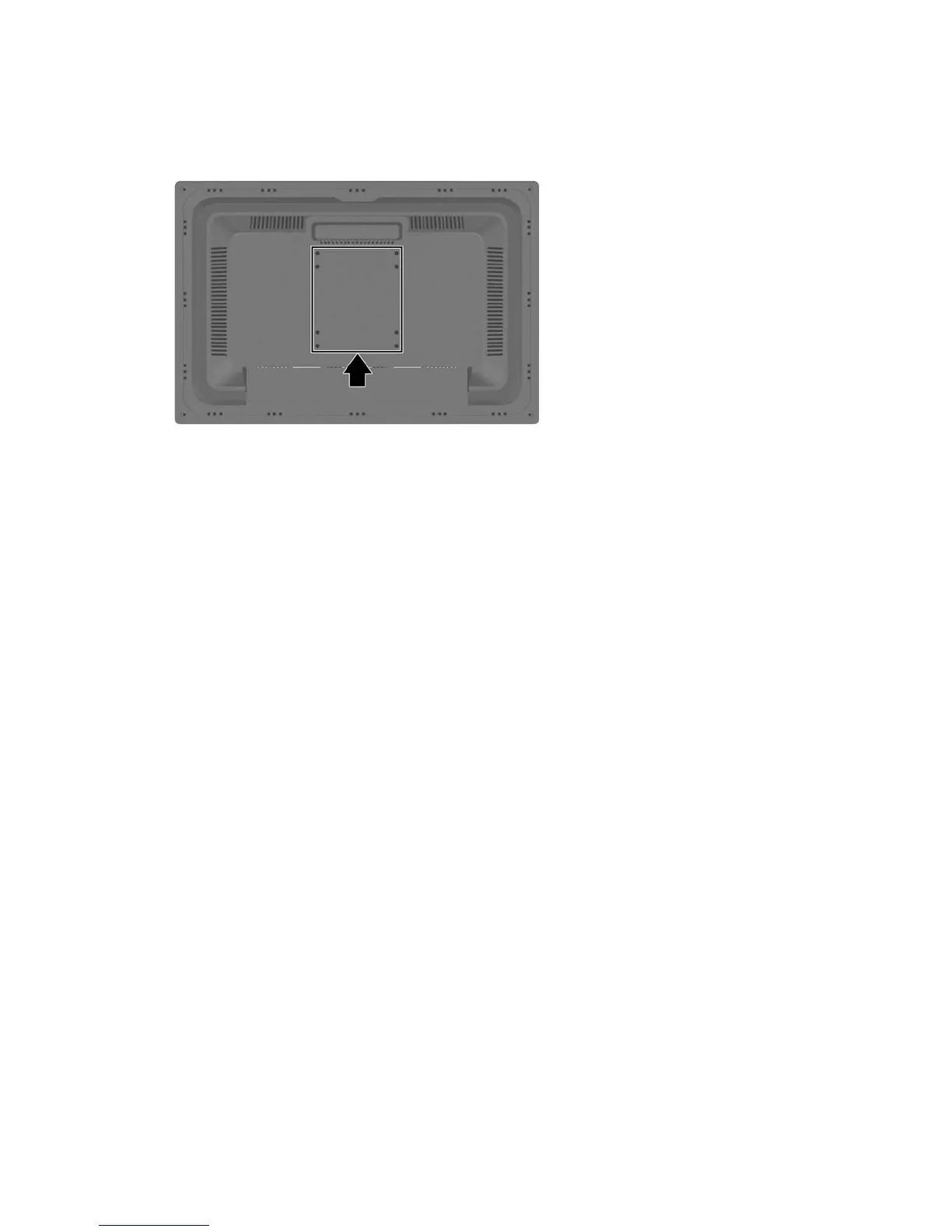

The monitor features two sets of VESA 100mm mounting holes. Use the top mounting holes to allow
the display head to be lowered 18.05 mm closer to the table surface, when used in landscape mode.
Figure 3-2 Two Sets of VESA 100mm Mounting Holes
Selecting the Signal Connectors and Cables
The monitor features one DVI-D connector and one VGA connector capable of supporting either
digital or analog input.
The video mode is determined by the connector and video cable used.
●
For digital operation, use an optional DVI-D signal cable. Connect the DVI-D signal cable to a
DVI-D connector on the monitor and the other end to the DVI-D connector on the computer.
●
For analog operation, use the VGA signal cable provided. Connect the VGA signal cable to a
VGA connector on the monitor and the other end to the VGA connector on the computer.
The monitor will automatically determine which inputs have valid video signals. The inputs can be
selected through the On-Screen Display (OSD) feature by pressing the Input Select button on the
front panel.
6 Chapter 3 Setting Up the Monitor ENWW

HP L2045W Specifications

General

Pivot angle	0 - 90 °
Plug and Play	Yes
Tilt angle range	-5 - 30 °
Height adjustment	-
Panel mounting interface	100 x 100 mm
Pixel pitch	0.258 x 0.258 mm
Aspect ratio	16:10
Display diagonal	20.1 \
Display resolution	1680 x 1050 pixels
Vertical scan range	50 - 76 Hz
Horizontal scan range	24 - 93 kHz
Contrast ratio (typical)	800:1
Display number of colors	16.78 million colors
Viewing angle, horizontal	160 °
Display brightness (typical)	300 cd/m²
AC input voltage	100 - 240 V
AC input frequency	50 - 60 Hz
Power consumption (standby)	2 W
Power consumption (typical)	60 W
Storage temperature (T-T)	-34 - 60 °C
Operating temperature (T-T)	5 - 35 °C
Storage relative humidity (H-H)	5 - 90 %
Operating relative humidity (H-H)	20 - 80 %
Certification	Australian ACA Approval, Canadian Requirements/CSA, CE Marking, CISPR Requirements, Energy Star Compliant, German Ergonomic (TUV and GS Mark), ISO 9241-3, 7, 8 VDT Guidelines, ISO 13406-2 Pixel Defect Guidelines, MPR-II Compliant, PC2001 Certified, S. Korea
Product color	Silver
Country of origin	China
USB hub version	2.0
HDMI ports quantity	0
USB Type-A downstream ports quantity	3

Weight and Dimensions

Depth (with stand)	223 mm
Width (with stand)	479 mm
Weight (with stand)	7800 g
Depth (without stand)	75 mm
Width (without stand)	315 mm
Height (without stand)	471 mm
Weight (without stand)	7680 g
