10. Slide the top cover plate down and replace the cable connection cover plate.

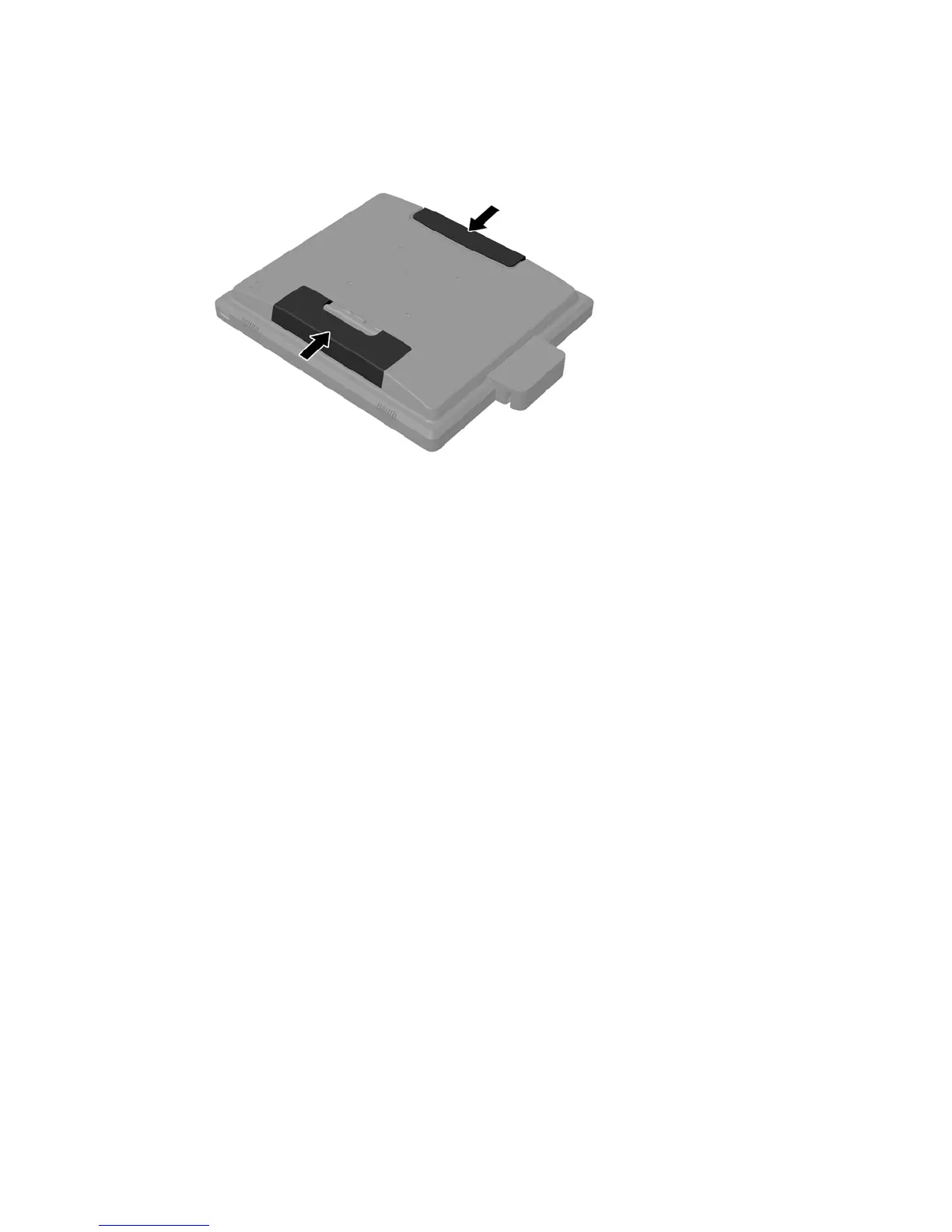

Figure 2-12 Replacing the Top and Bottom Cover Plates
11. Ensure that the USB upstream cable is connected between the monitor and the PC.
12. Install the applicable software and drivers for the module(s) according to instructions provided
with the accessory.
Attaching an Optional Monitor Stand
The optional monitor stand is available from HP (sold separately). The stand attaches to the 100mm
VESA mounting holes on the rear panel.
1. Place the monitor panel face down on a flat surface covered with a clean, dry cloth.
2. If there are screws installed in the VESA mounting holes on the rear panel, remove the screws.
Attaching an Optional Monitor Stand 9
