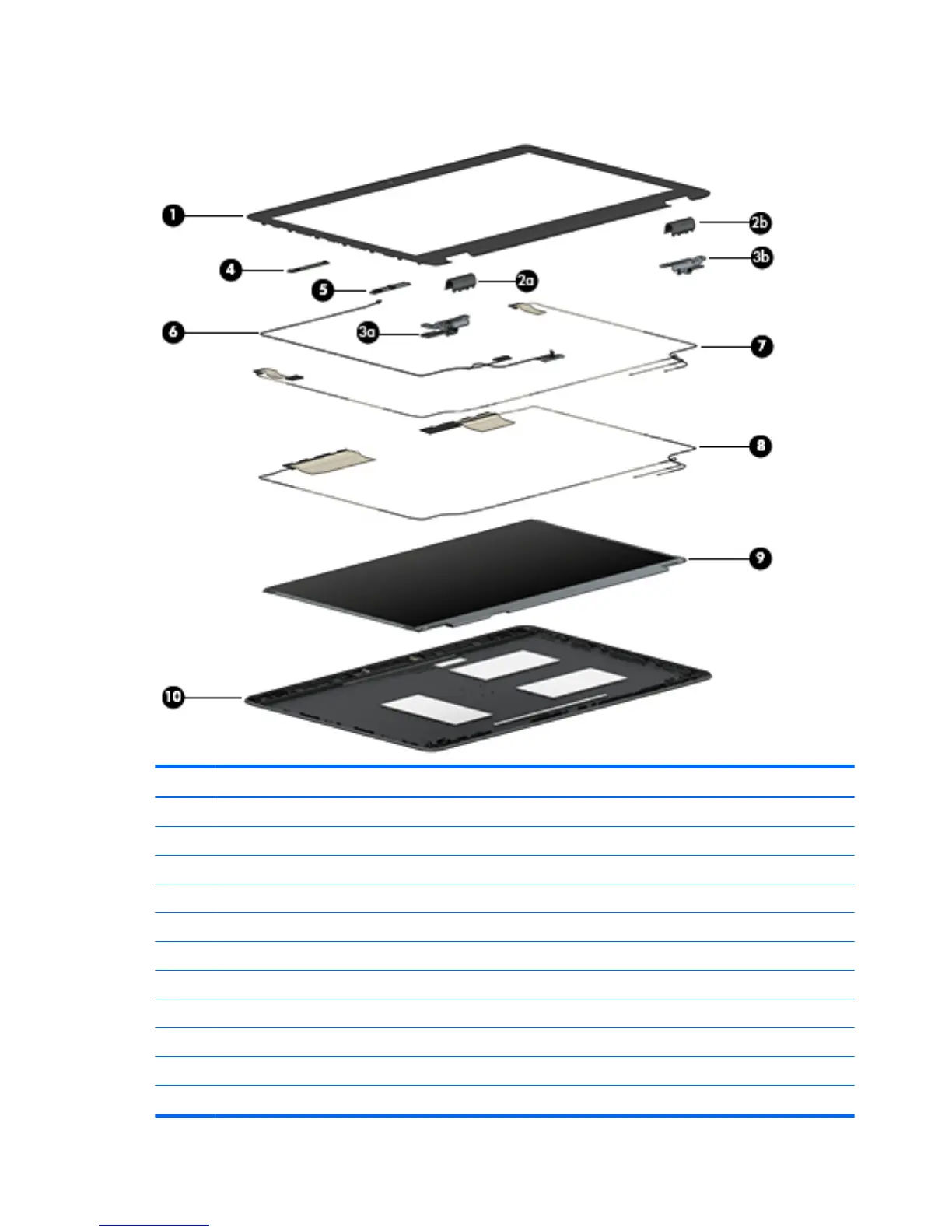

Display assembly subcomponents
Item Component Spare part number
(1) Bezel 821197-001
Hinge kit 821166-001
(2) Left hinge cover (a) and right hinge cover (b) (spared with hinges)
(3) Left hinge (a) and right hinge (b)
(4) Microphone module 821168-001
(5) Webcam module (includes microphone) 821676-001
(6) Display/webcam cable 821174-001
(7) WLAN antenna (spared with back cover)
(8) WWAN antenna (spared with back cover)
(9) Raw panel 823951-001
(10) Back cover (includes antennas) 821161-001
18 Chapter 3 Illustrated parts catalog
